VIP User’s Manual
Overview
2
1.3 Package Contents
The contents of your product should contain the following items:
l Internet Telephony Gateway 19” rack mountable version
l 90-240V AC power cord (VIP-000), AC-DC power adapter (VIP-200/400/400FS/400FO)
l 9-pin straight through RS-232 cable
l Rack mount brackets (2) and screws (4) (VIP-000 only)
l Quick Installation Guide
l User’s Manual CD
1.4 Front Panel
The front panel of VIP contains a RJ-45 Ethernet port, one DB9 RS-232 interface port, a push but-
ton and 16 LED indicators. The following figure illustrates the front panel of VIP.

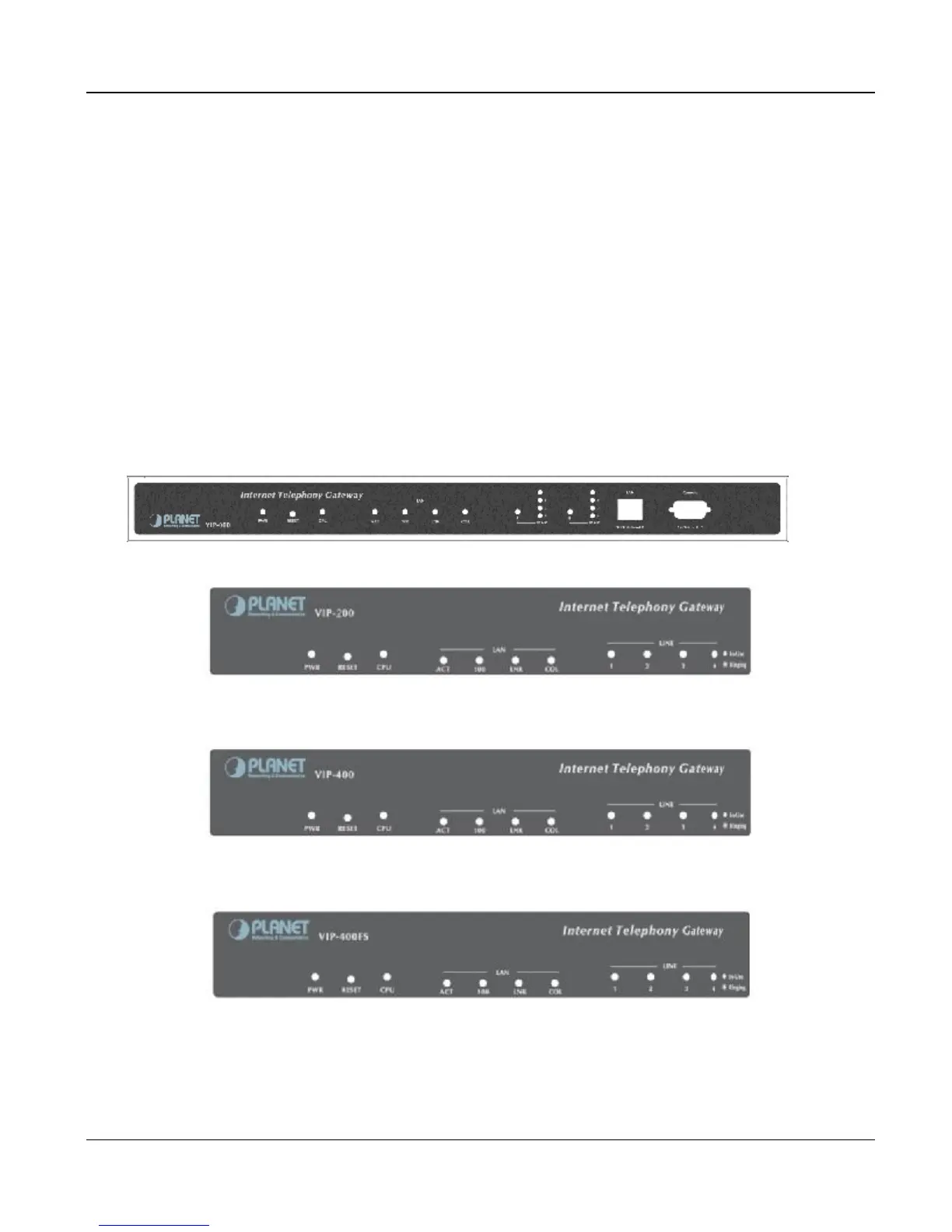

Figure 1-1 VIP-000 Front Panel
Figure 1-2 VIP-200 Front Panel
Figure 1-3 VIP-400 Front Panel
Figure 1-4 VIP-400FS Front Panel
