VIP User’s Manual
Application Samples
38
2. Dial the phone number which is connected between PBX and VIP FXO module port.
3. When VIP is connected, the related LED will be lighted green.
For Example: If the telephone set is connected to the third port of FXO in slot A. When the
PBX is connected to VIP FXO port, the third LED will be green, it means on, in slot A of front
panel.
4. We can dial the desired destination phone number on the telephone set. If the desired desti-
nation phone number is legal, VIP will plan two quick sounds, “Du Du”, to destination. If the
desired destination phone number is illegal, VIP will plan out of service sound, please check
the dial plan and your desired destination phone number.
5.3 Making a call with VIP Application Sample

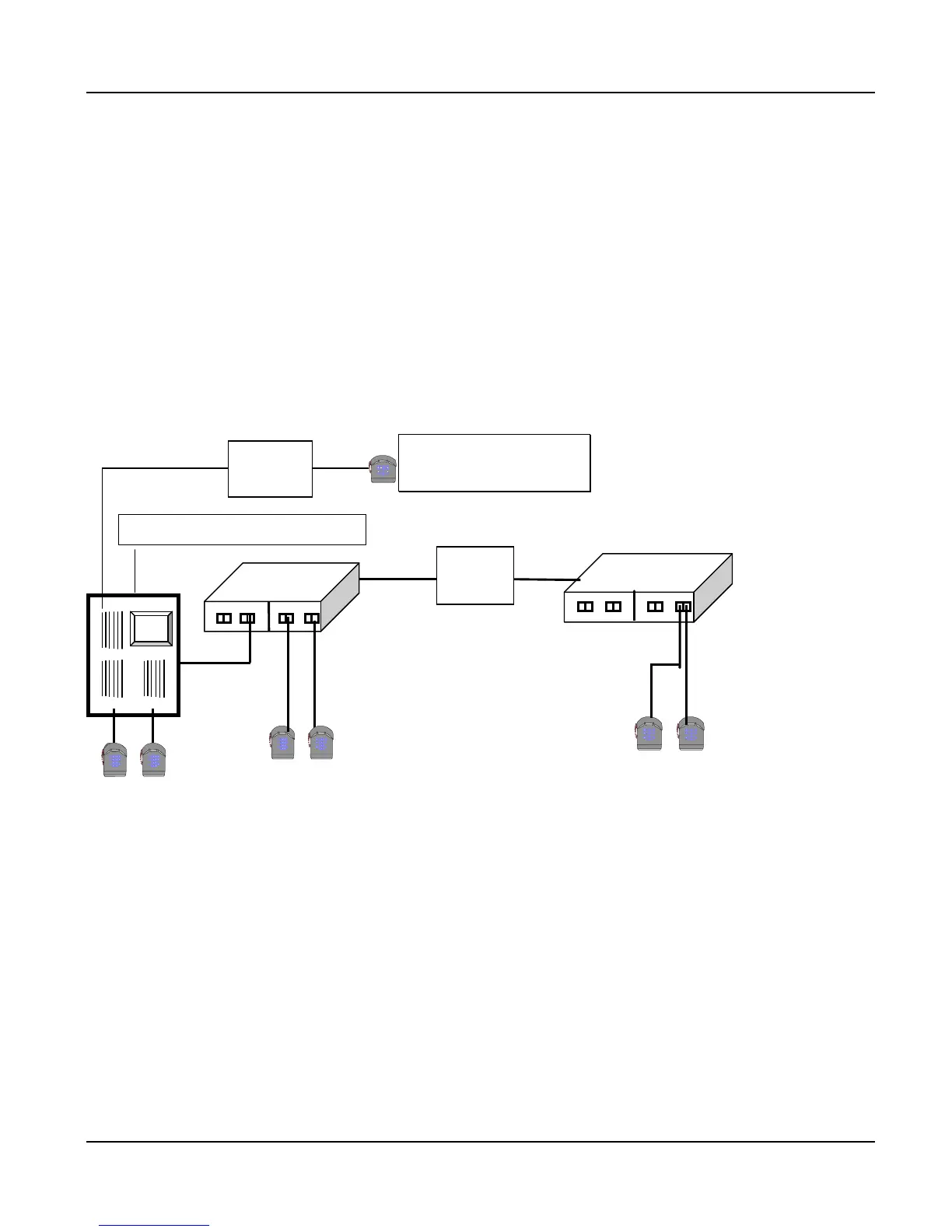

Scenario description:
There are two gateways connected by a Hub. Gateway A is configured as following:
1 Gateway A IP: 192.168.0.20, mask IP: 255.255.255.0, gateway IP 0.0.0.0 (virtual IP)
2 Slot A plugs FXS module and slot B plugs FXO module
3 Port 1 of FXS in slot A has a telephone set connected, its phone number is 200
4 Port 3 of FXS in slot A has a telephone set connected, its phone number is 201
5 Port 1 of FXO in slot B is connected to PBX.
5.1 There are two telephone sets connected by PBX, their phone numbers are 800 and 810.
5.2 PBX has a number, 899, is connected to Port 1 of FXO in slot B.
5.3 PBX has an outside call to PSTN. Digit 0 is connected to outside call.
5.4 Phone number: (03) 87654321 is an PBX representative number. 03 is an area code.
6 There is telephone set, define phone A, its number is (03) 12345678.
Gateway B is configured as following:
Port 1
Port 1
FXS
FXS
GW B
Port 2
551 550
HUB
GW A
Slot A
201 200
Port 5
“0”
FXO
899
PSTN
Phone A Number:
(03)12345678
PBX Number: (03)87654321
FXS
Slot B
Slot A
FXS
To Next Page
