Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-7
PANORAMIC X-RAY BEAM ADJUSTMENT
Technical Manual

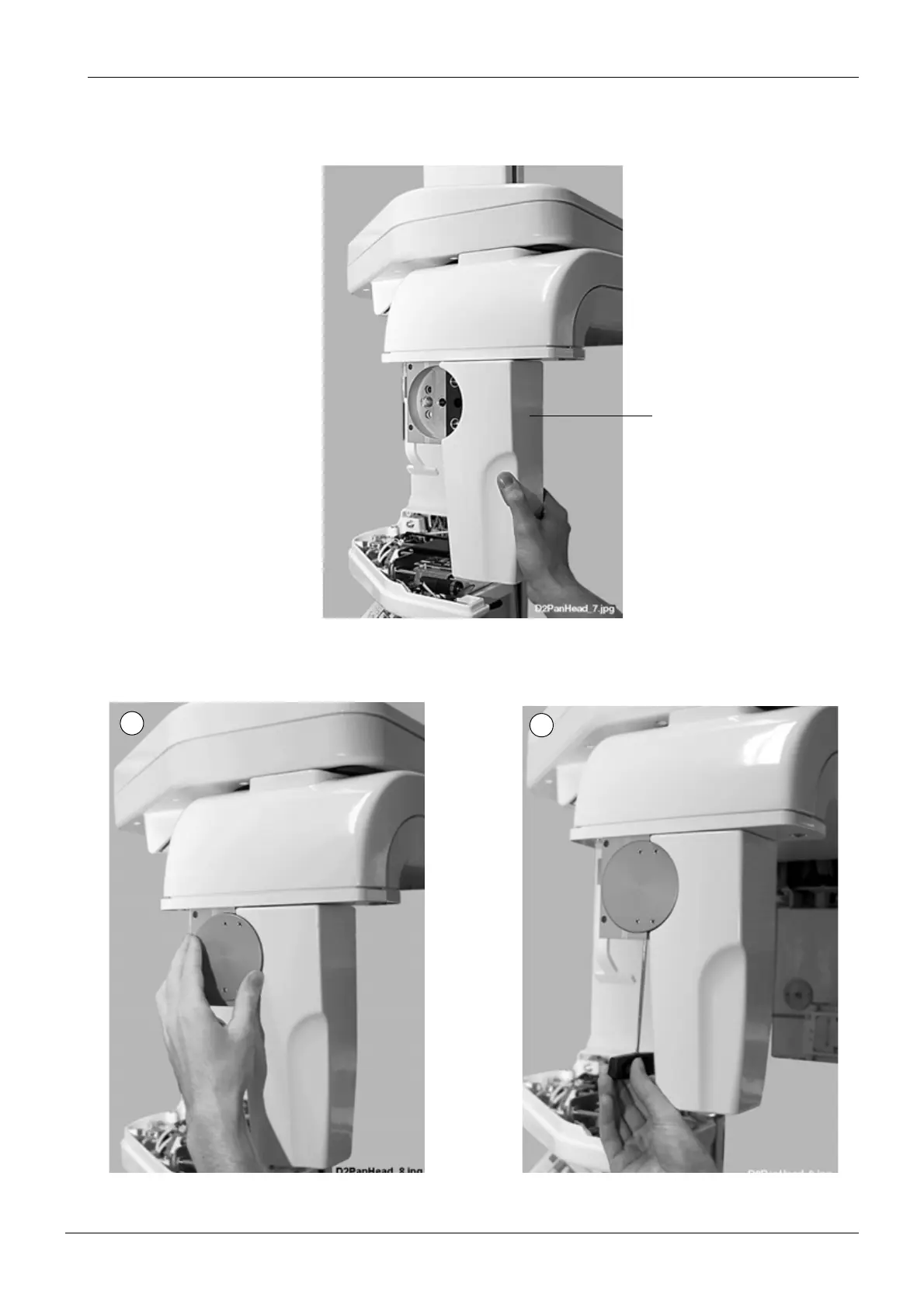

Attaching the fixed sensor head to the adapter
Push the sensor head to its adapter.
Figure 6
Place the lock disc to the adapter (Fig. 7, 1) and tighten the attachment screw (Fig. 7, 2) with
the 3mm allen key.
Figure 7
Sensor head
1
2
