Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-20 Planmeca Proline EC X-ray unit
CALIBRATING PANORAMIC SENSOR HEAD
Technical Manual

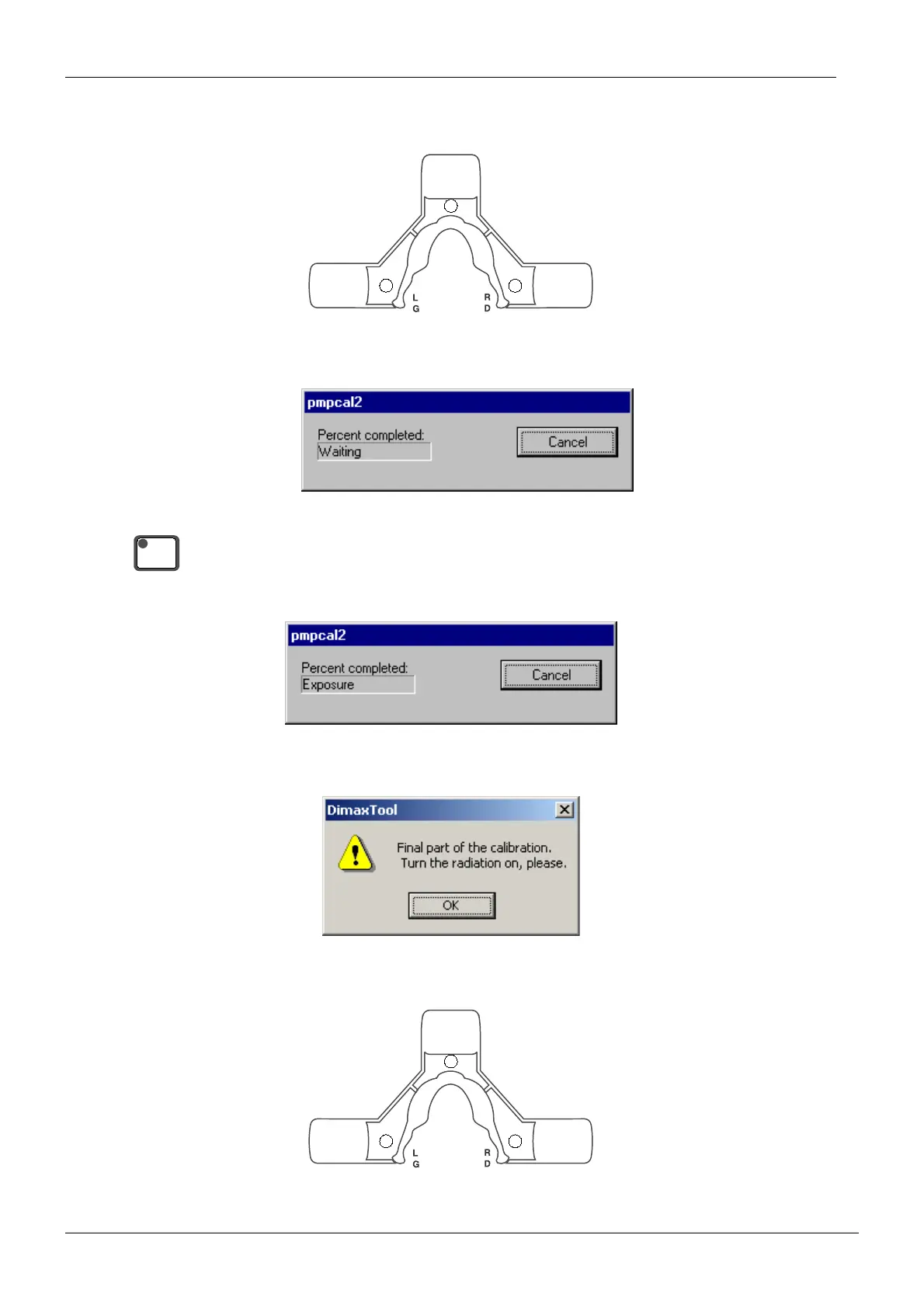

Press all the three sector keys to SWITCH OFF the radiation. The indicator lights will COME
ON.
Figure 31
The pmpcal2 window with text Waiting appears.
Figure 32
Press the ready key to drive the X-ray to the exposure position.
The text Exposure appears.
Figure 33
Take an exposure. After the exposure the message window shown below appears.
Figure 34
Press all the three sector keys to SWITCH ON the radiation. The indicator lights will GO OUT.
Figure 35
A
C
B
READY
PRET
A
C
B
