Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-21
CALIBRATING PANORAMIC SENSOR HEAD
Technical Manual

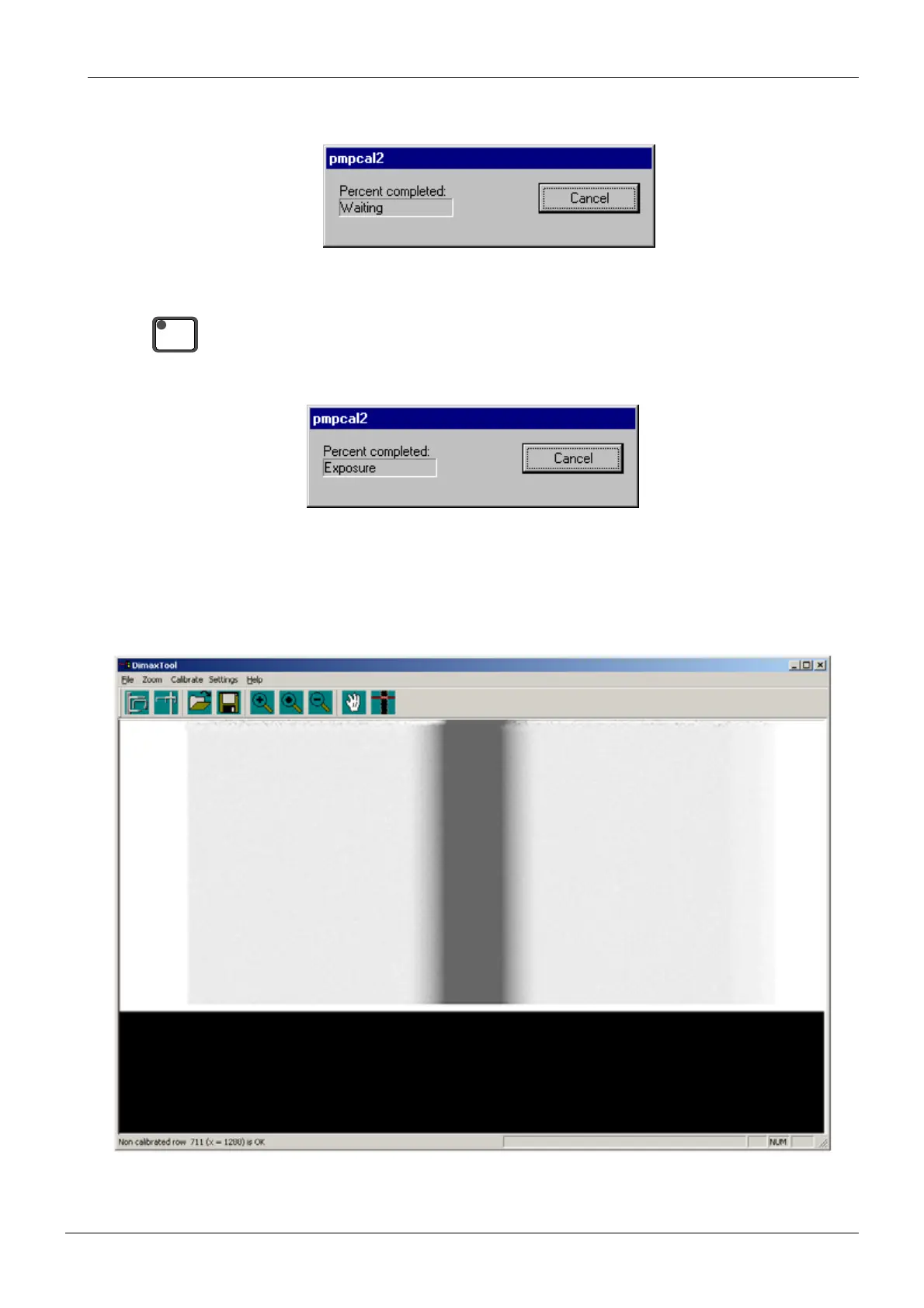

The pmpcal2 window with text Waiting appears.
Figure 36
Press the ready key to drive the X-ray to the exposure position.
The text Exposure appears.
Figure 37
Take an exposure.
The sensor head is now calibrated. After the exposure has been taken the image is shown in
the Dimax2Tool window.
Figure 38
READY
PRET
