Planmeca Proline EC pan - Page 123

Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-29
PATIENT POSITIONING MECHANISM
Technical Manual

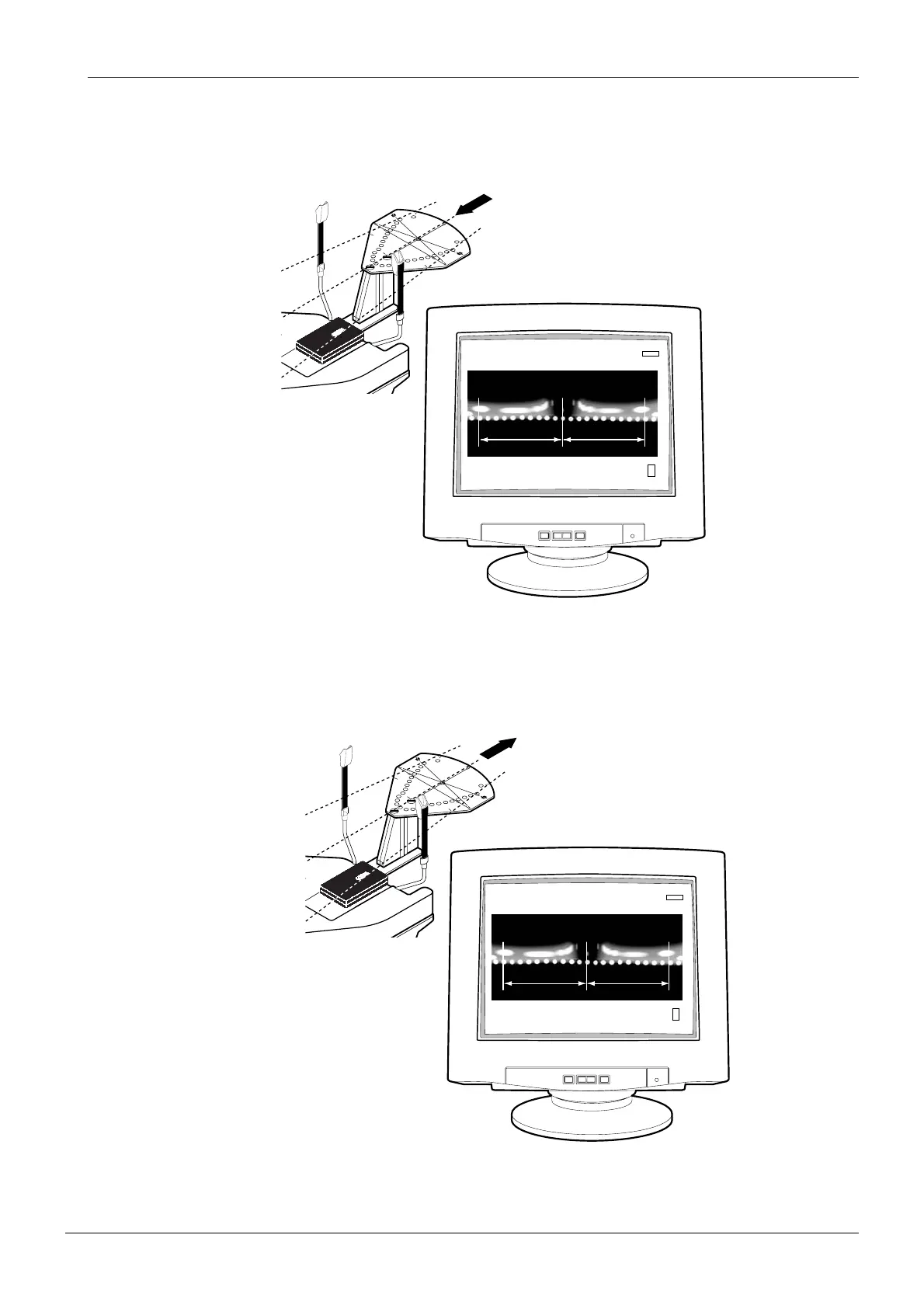

If the distances from the middle ball to the center of the tenth ball on both the right and left are
more than 122mm then the patient positioning mechanism is too far backward and must be
moved forwards (
Fig. 53).
Figure 53
If the distances from the middle ball to the center of the tenth ball on both the right and left are
less than 118mm then the patient positioning mechanism is too far forward and must be
moved backwards (
Fig. 54).
Figure 54
Right-hand side
START
END
PLANMECA No.50971
X-LINE
Y-LINE
Patfron.eps
More than 122 mm More than 122 mm
Right-hand side
START
END
PLANMECA No.50971
X-LINE
Y-LINE
Patpack.eps
Less than 118 mm Less than 118 mm
