Chapter D - ADJUSTMENT & CALIBRATION
Planmeca Proline XC X-ray unit D-33
PATIENT POSITIONING LIGHTS
Technical Manual
5.2 Positioning light adjustment

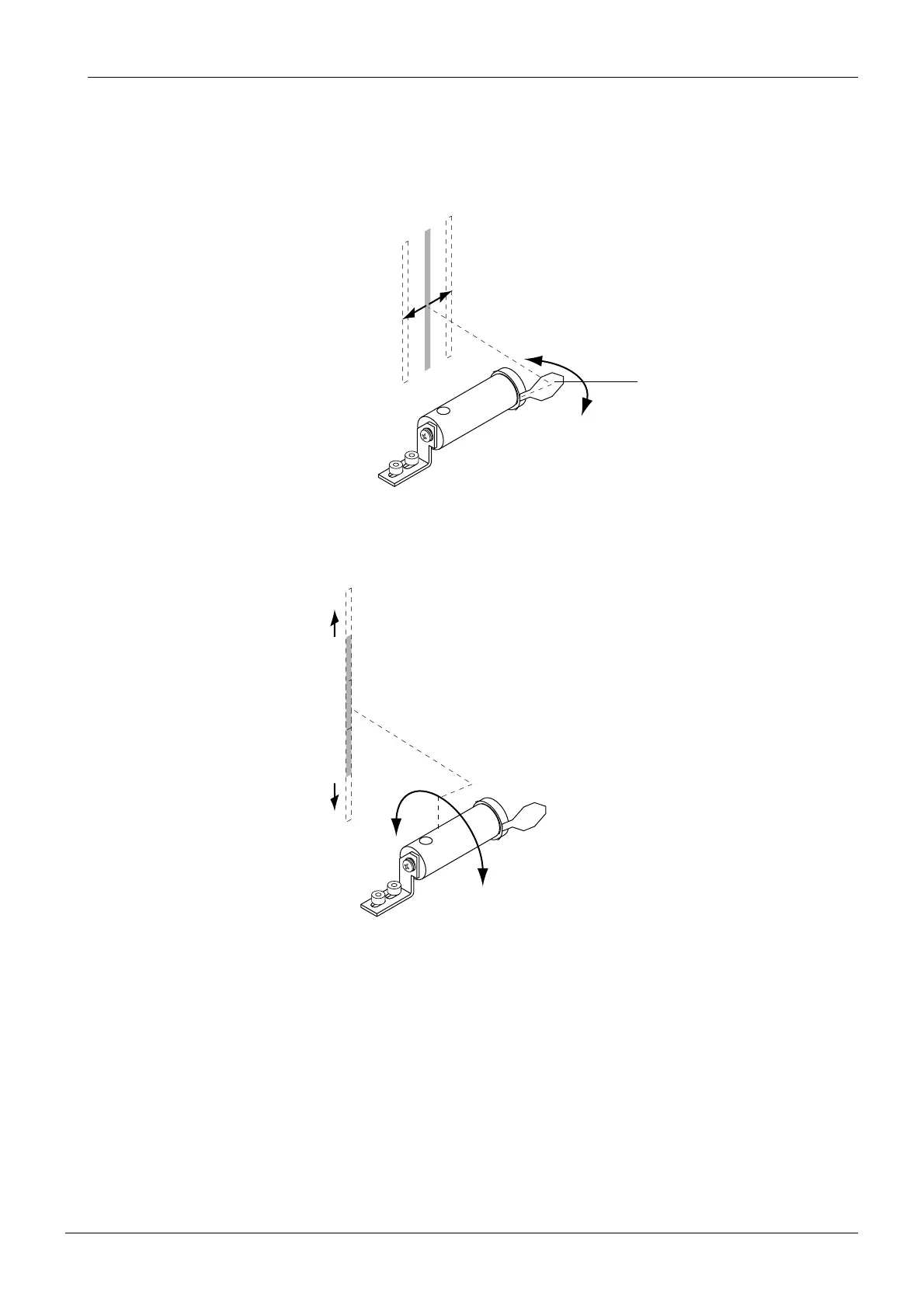

Bending the mirror bracket backwards or forwards will position the light beam.
Figure 58
Rotating the mirror bracket will adjust the light beam in vertical direction.
Figure 59
Adj.beam rightleft.eps
Mirror bracket
Adj.beam updown.eps
