Emptying the trim bin

Remove the trim bin by lifting it and pulling it out.

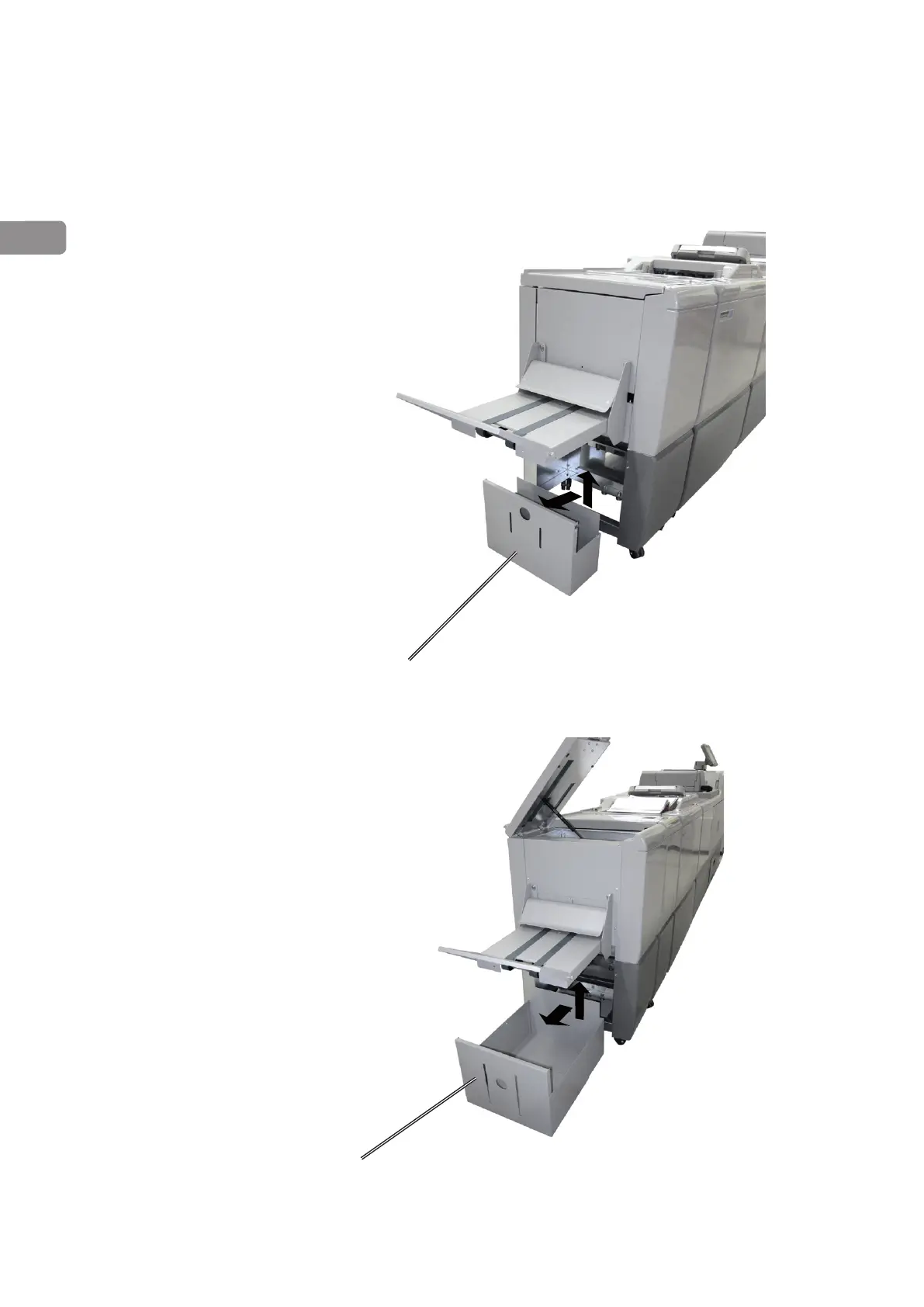

trim bin, no Book Folder installed

trim bin, with Book Folder installed
