Handling stored Jobs

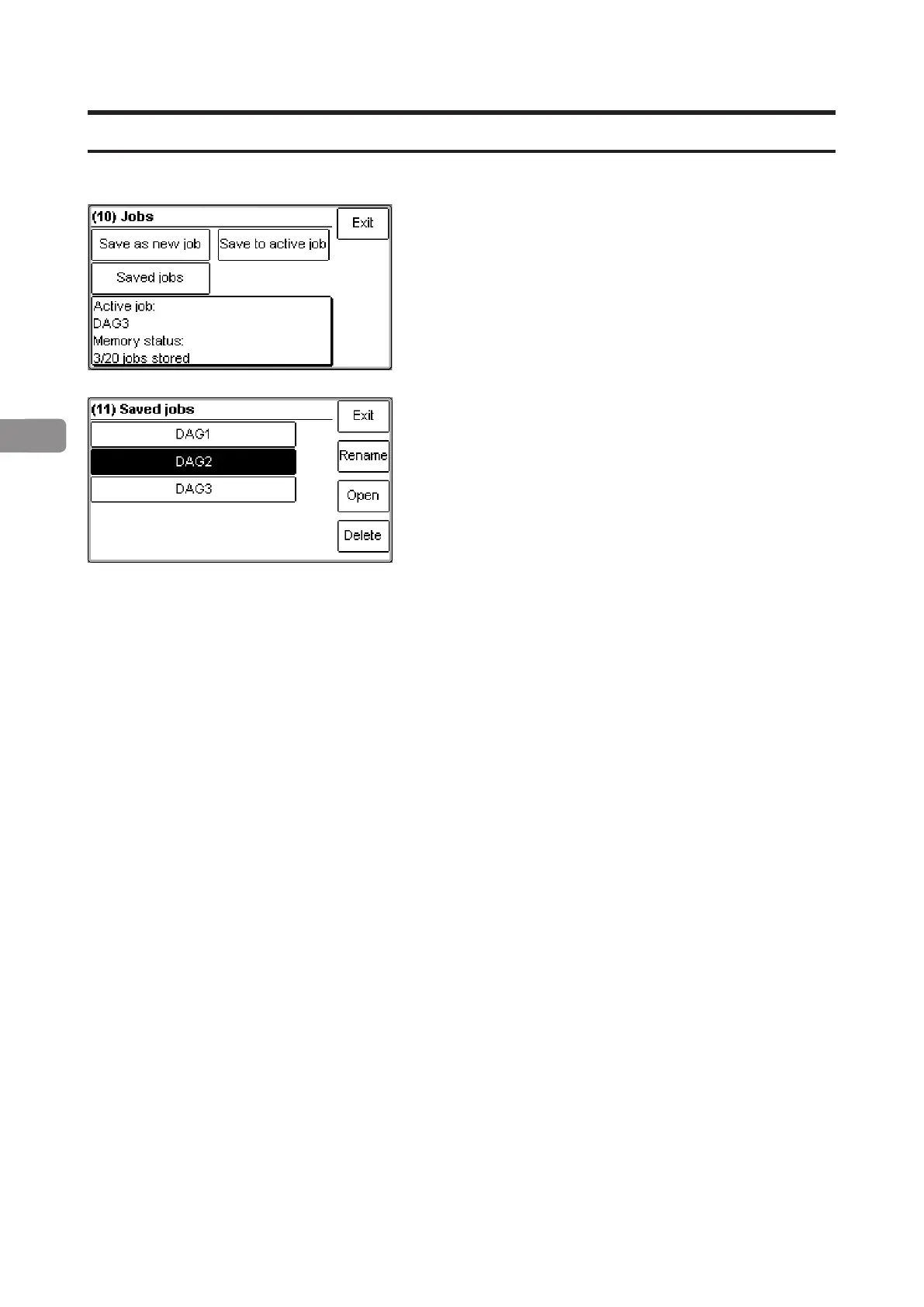

To access already stored jobs, press the [Saved

jobs] button.

Rename, open (load) or delete any stored job by

pressing the job button and choose action.
