BODY / STEERING / SUSPENSION
5.8

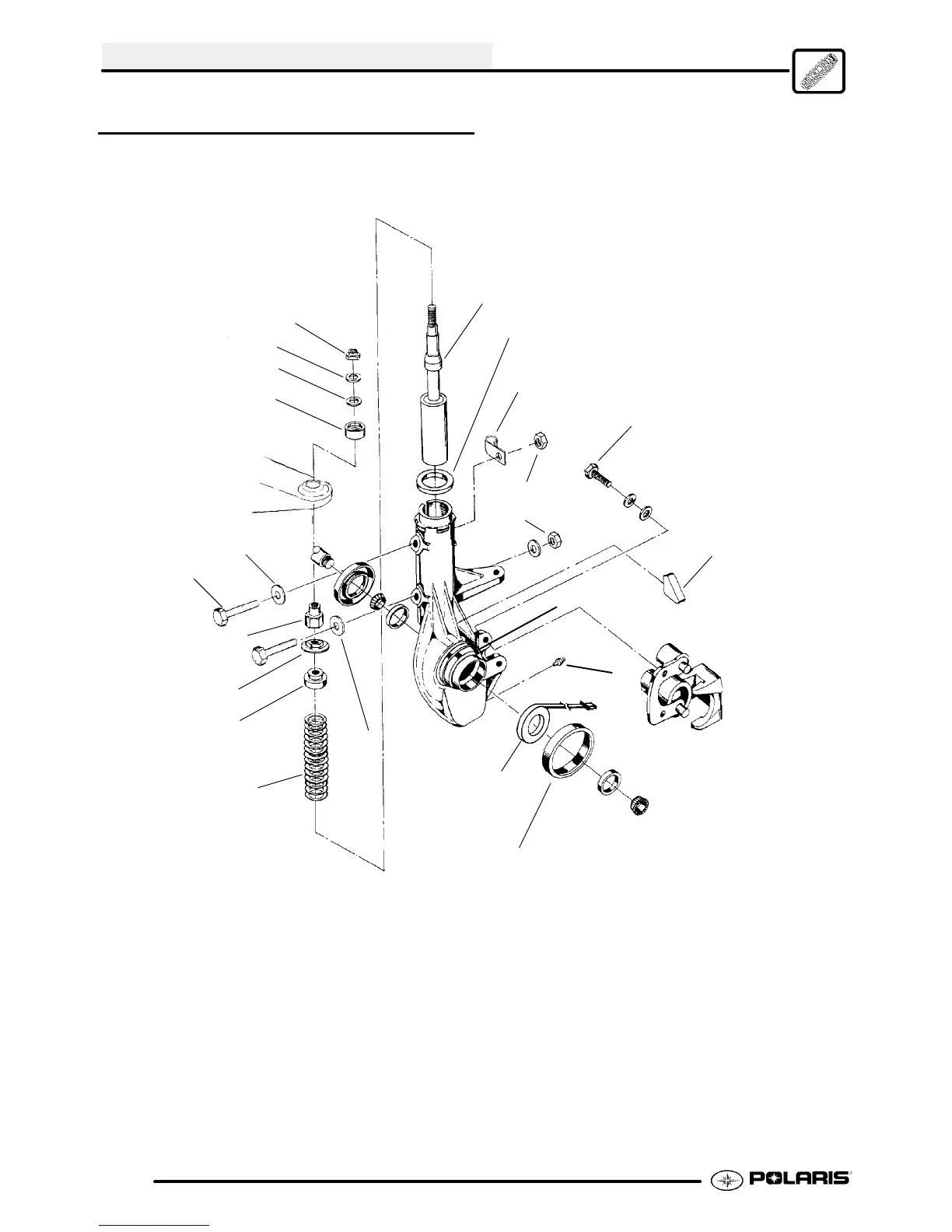

STRUT ASSEMBLY - AWD (4X4)
NOTE: Be sure steel insert notch (1) and strut casting notch are lined up and provide a channel for the
magnetic coil wires to lie in. If insert and strut do not match, strut replacement will be necessary.
Grease fitting (2) location. Check lubrication guide for recommended service intervals.
Specified pole gap is 0-.001″ (0-.0254mm)
1
2
15 ft. lbs.
(21 Nm)
Nut
15 ft. lbs.
(21 Nm)
18 ft. lbs.
(25 Nm)
Seal Sleeve
Install Using Seal Sleeve
Installation Tool (PN 2871199)
W asher
Upper Pivot Ball
Lower Pivot Ball
W asher
Spacer Rubber
Spring Retainer
Spring
Bolt
Spacer
W asher
Clamp
Wire retainer
Hub Coil
Spring Retainer
Strut Bumper
To Next Page
