CLUTCHING
6.17
#3 1 Drive Clutch Cover
Bushing Removal/
Installation Tool (all
clutches)
5020629
#5 1 P--90DrivenClutch
Cover Bushing Re-
moval Tool
5020631
#8 1 Main Puller Adapter 5020632
#9 1 Adapter Reducer 5010279
#10 1 Number Two Puller
Adapter
5020633
DRIVE CLUTCH MOVEABLE
SHEAVE -
BUSHING
REMOV
AL
#2
#3
#5
#8
#9#10

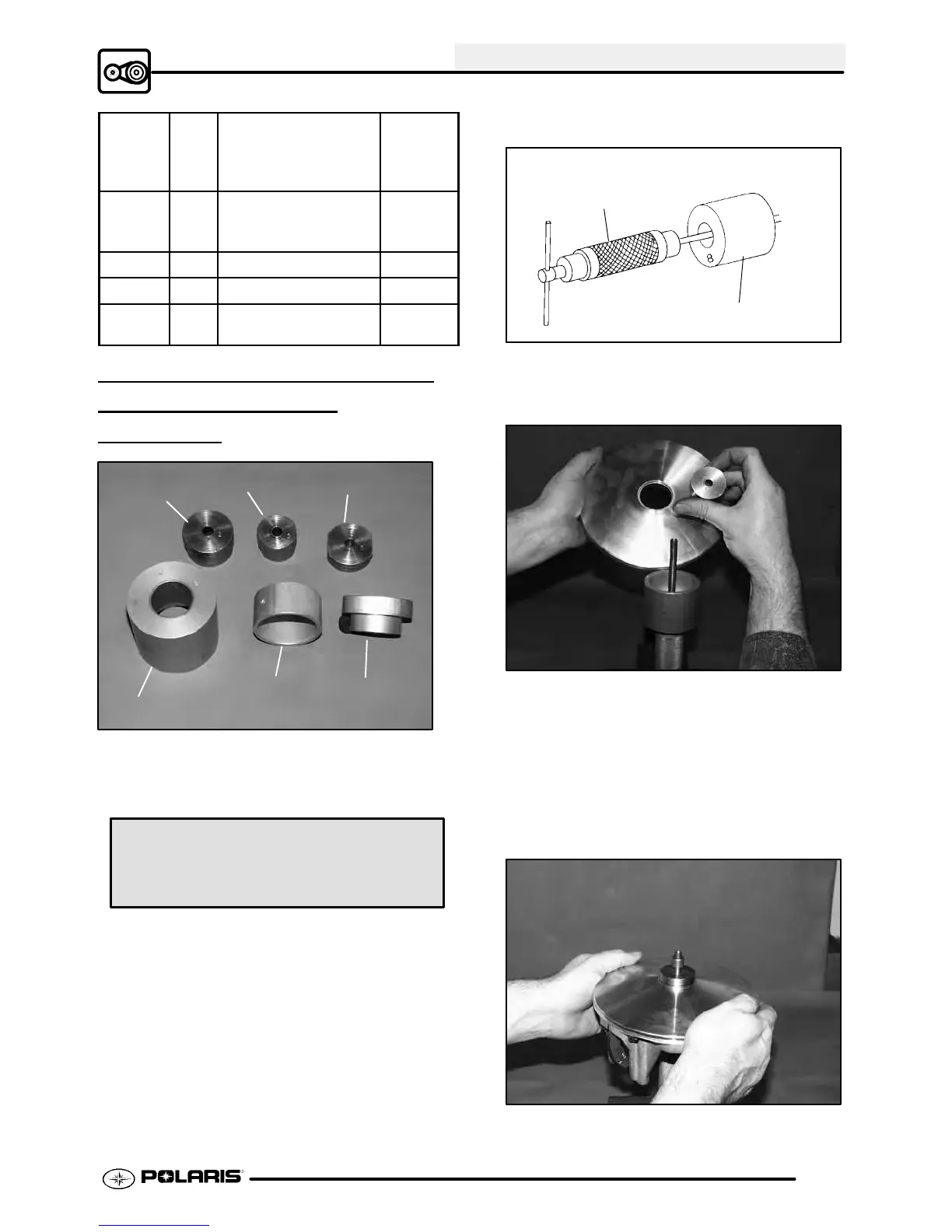

1. Install handle end of the Piston Pin Puller (PN
2870386) securely into bench vise and lightly
grease puller threads.
Piston Pin Puller (PN 2870386)
2. Remove nut from puller rod and set aside.
Piston Pin Puller
(PN 2870386)
Main Puller Adaptor (#8)
3. InstalltheMainPullerAdapter(#8)(PN5020632)
onto the Piston Pin Puller (PN 2870386).
4. Insert the Number Two Adapter (#10) (PN
5020633) into the bushing from belt side as
shown. With towers pointing toward vise, slide
sheave and bushing onto puller rod.
5. Installthenut removedinStep2ontoendofpuller
rod and hand tighten. Turn puller barrel to
increase tension on sheave if needed. Nut is left
hand thread
