Polaris A09BG50AA User Manual

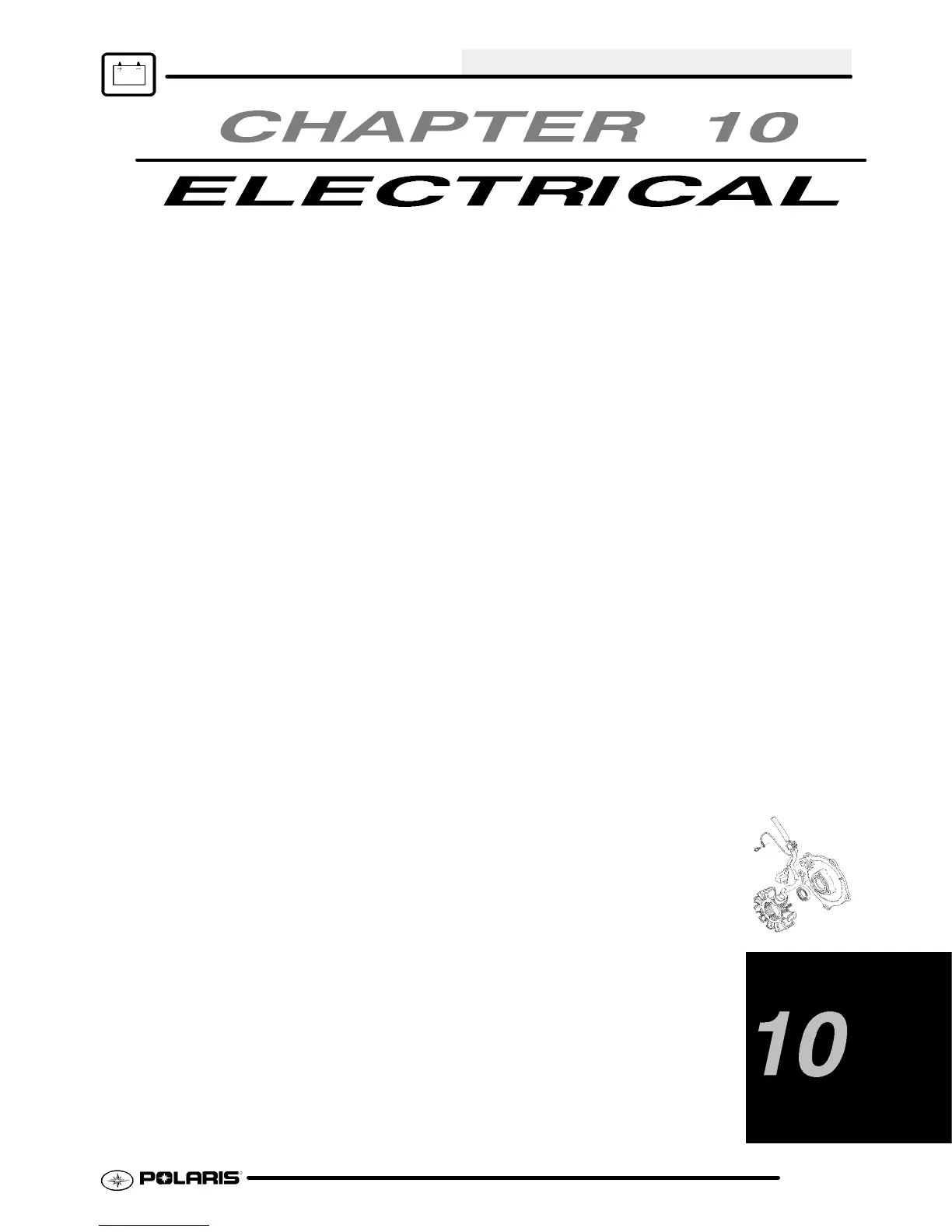

ELECTRICAL
10.1
240 Watt Alternator, Exploded View 10.2...
Special Toolsand Electrical Notes 10.3....
Timing Check Procedure 10.3............
PDM Operation 10.4-10.9....................
Hot Light Operation 10.9.................
Fan Operation / Testing 10.9.............
Fan Bypass Test 10.9...................
Fan Motor Current Draw Test 10.10........
Temperature Sensor Tests 10.10...........
ETC System Operation / Test 10.11........
Ignition System Troubleshooting 10.12.....
DC / CDI Ignition System Testing 10.13-10.14.....
Cranking Output Test 10.15...............
Tr ans. Gear Position Switch Test 10.15.....
Reverse Limiter Wiring Diagram 10.16......
Reverse / No AWD Troubleshooting 10.17-10.20..
Charging System Testing 10.21 -10.22............
Battery Service 10.23-10.29....................
Head Light/Brake Light Service 10.30-10.31......
Starter System Testing 10.32..............
Starter System / Starter Lockout
Troubleshooting 10.33....................
Starter Motor Service 10.34-10.36...............
Starter Drive 10.37.......................
Wiring Diagrams Chapter End...................
