MAINTENANCE
2.35
If less than one inch, two things must be examined:
Free Play:
Free play of the brake pedal should be 1/8 - 1/4
inch (3.2 - 6.35 mm).
If free play is excessive, inspect pedal, linkage, and
master cylinder for wear or damage and replace any
parts as needed.
Bleeding:
If free play is correct and brake pedal travel is still
excessive, air may be trapped somewhere in the
system. Bleed thehydraulic auxiliary brakesystemin
a conventional manner, following the procedure
outlined in Brake Chapter 9.
DRIVE CHAIN AND
SPROCKET
INSPECTION
Polaris ATV drive chains are equipped with O-ring
sealed permanently greased pins and rollers. The
sprockets and outer rollers require periodic
lubrication. Lubricate the chain with Polaris O-Ring
Chain Lubricant (PN 2872073).
Inspect the drive chain for missing or damaged
O-Rings, link plates,or rollers. Do notwashthechain
with a high pressure washer, gasoline or solvents; do
not use a wire brush to clean the chain as damage to
the O-Rings may occur. Clean chain with hot soapy
water and a soft bristled nylon brush.
Never allow battery acid to contact the drive chain.
Service Limit:
1/4″ (6mm)
Drive Chain Lubricant:
Polaris O-Ring Chain Lubricant
(PN 2872073)

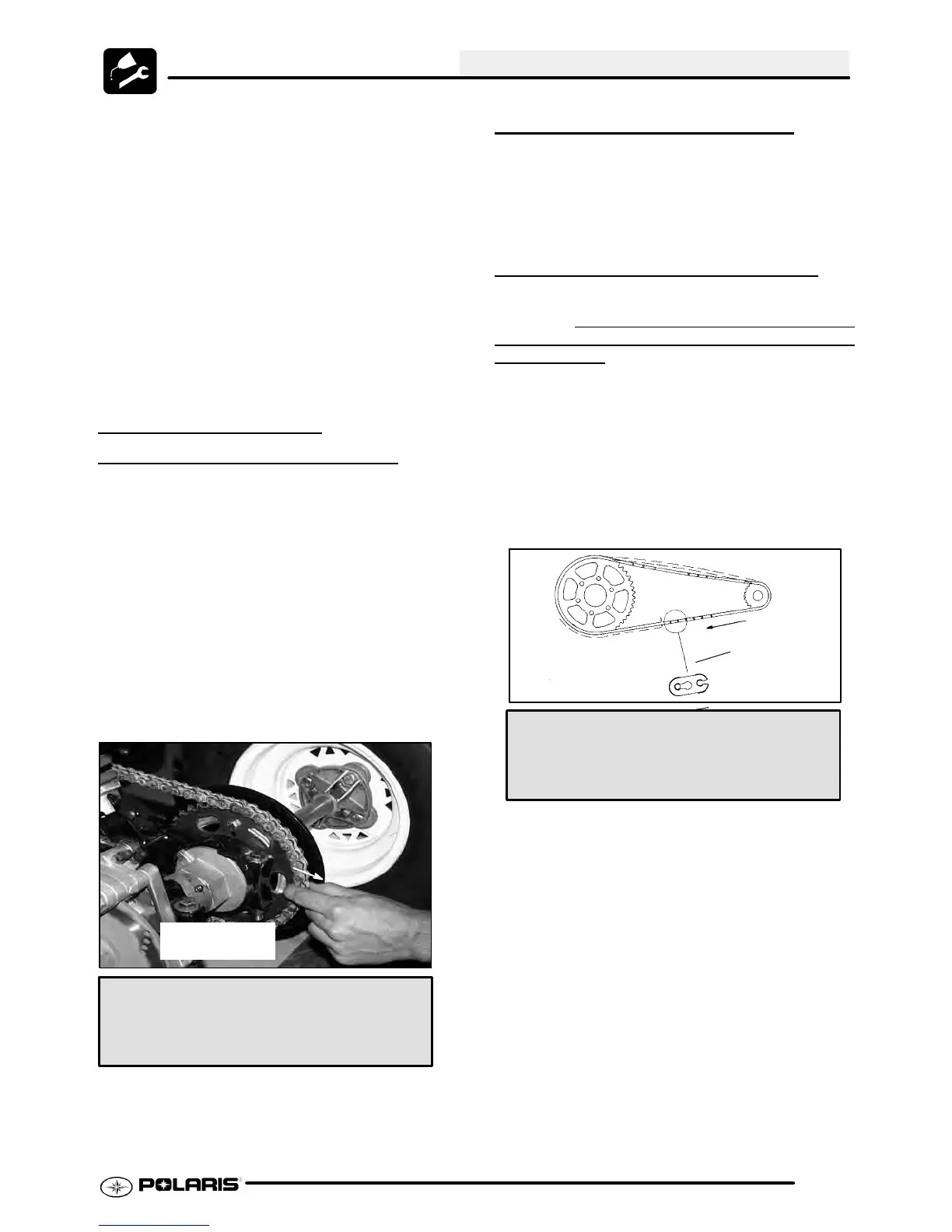

SPROCKET INSPECTION
Inspect the sprocket for worn, broken or bent teeth.
To check for wear, pull outward on the chain as
shown. Replacesprocketifchainmovementexceeds
1/4″ (.6 cm).
DRIVE CHAIN INSPECTION
The chain must be replaced when it reaches 3%
elongation. The chain master link is a press--on
style
that requires a chain pressing tool to install
and
remove the
link.
1. Stretch the chain tightly in a straight line.
2. Measurealengthoftwentypitches(pins)frompin
center to pin center, and compare to the
specification. Replace the chain if the length
exceeds the wear limit.
3. When replacing or reinstalling drive chain, install
theclosedendofthesplicelinkclipasshown,with
the closed end leading in forward operation.
Proper
Splicelink Clip
Opening
Position
.003--.005”
(.076--.127 mm)
Gap after installation
Drive Chain Wear Limit--20 Pitch Length:
Std: 12.5″ (32 cm)
Wear Limit: 12.875″ (32.7 cm)
