7.23
FINAL DRIVE
7

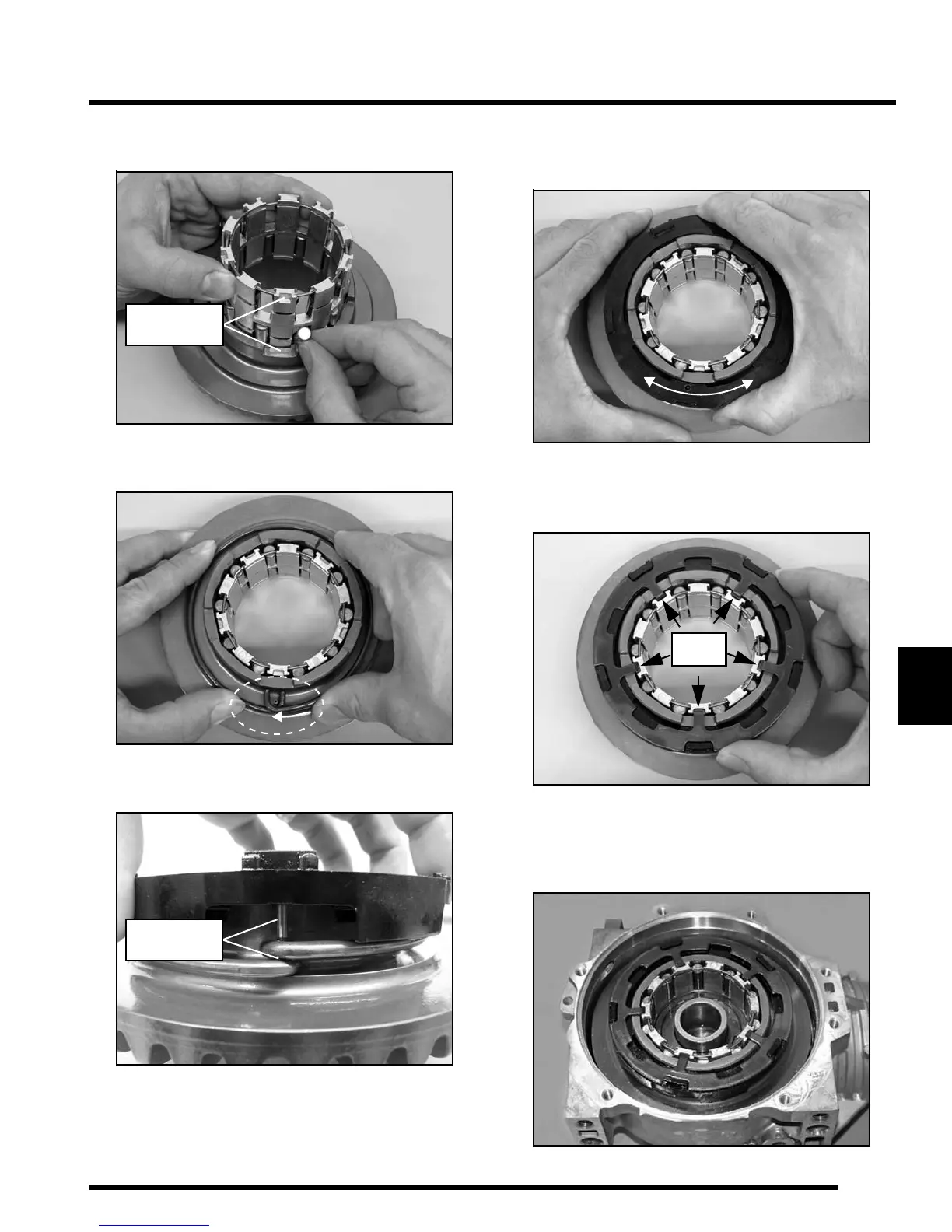

NOTE: Install the roll cage so that the ring gear
grooves line up with the roll cage slots (see below).
6. Install the torsion spring by wrapping each leg of the spring
around the dowel pin on the ring gear.
7. Align the spring retainer dowel pin with the ring gear dowel
pin and install the retainer on top of the torsion spring.
8. Check the action of the torsion spring by rotating in both
directions to ensure the spring and retainer are installed
properly.
9. Be sure the armature plate tabs are fully engaged into the
roll cage assembly and are resting on the cut-grooves of the
ring gear.
NOTE: Verify armature plate tabs are in the slots on
the roll cage and are resting in the ring gear grooves.
10. Carefully install the ring gear and roll cage assembly into
the gearcase housing.
Align during
installation
Align during
installation
Engage
Tabs
