3 - 36
Door Latch/Erect Switch Assembly
1. Removal
a. Remove the three screws holding the Door Latch/Erect Switch
Assembly to the Mainframe (Figure 3-35). This also frees the Erect
Switch Retainer and cable hold-down; don’t lose it.
b. The Erect microswitch and cable may be removed from the base of the
Door Latch Assembly by gently springing out the catches at the front and
back of the Switch body.

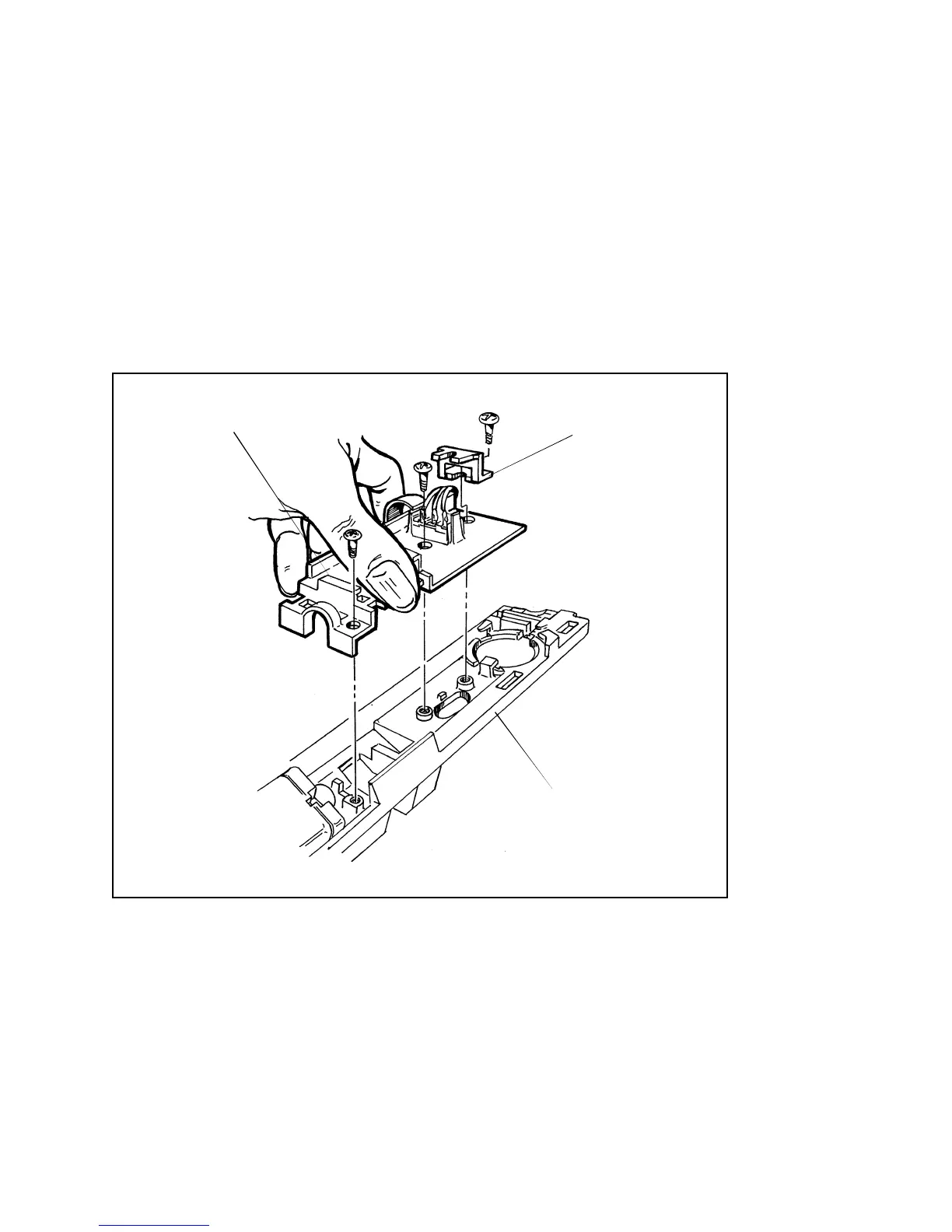

Figure 3-35. Removing Door Latch/Erect Assembly and Switch
2. Replacement
a. Attach to the Mainframe with three screws removed.
b. If Erect Switch is replaced, insert it with switch actuator on the
underside to the rear; check that switch clicks when Door is closed.
MAINFRAME
SWITCH RETAINER
DOOR LATCH/ERECT SWITCH
ASSEMBLY
