1 - 7
Viewfinder
The Viewfinder (Figure 1-3) in the ProCam is an erecting, telescopic, straight
viewfinder. It is a self-contained assembly which may be removed from the
ProCam in one piece. The entire viewfinder assembly moves with the cone as the
ProCam is folded and unfolded; the eyepiece (turret) folds separately when the
ProCam is closed.
The image presented in the eyepiece is within the confines of a sharp black border.
This black border clearly frames the subject matter to assure capture of the desired
subject matter. Additionally, the image is well-defined and distinct.
Even with these new features, the viewfinder is smaller than viewfinders used in
previous camera models. The size reduction was necessary because of packaging
constraints created by the size of the ProCam.

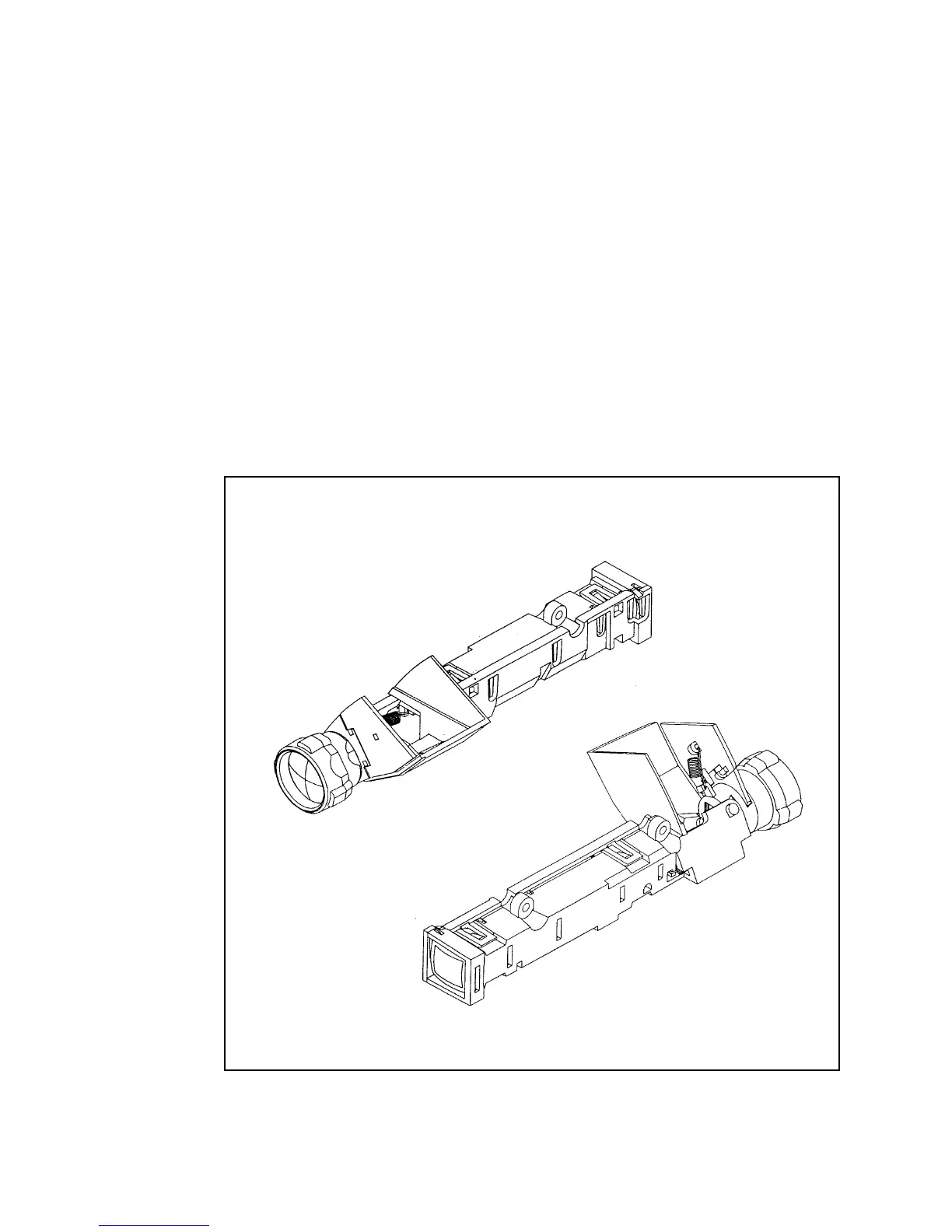

Figure 1-3. ProCam Camera Viewfinder Assembly
