3 - 29
Motor Flex
1. Removal
a. Remove the Motor Flex Retainer from the Gear Drive Cover
(Figure 3-27) by releasing the two latching fingers: insert a narrow
blade into openings A and B and turn blade in direction shown
by arrows.

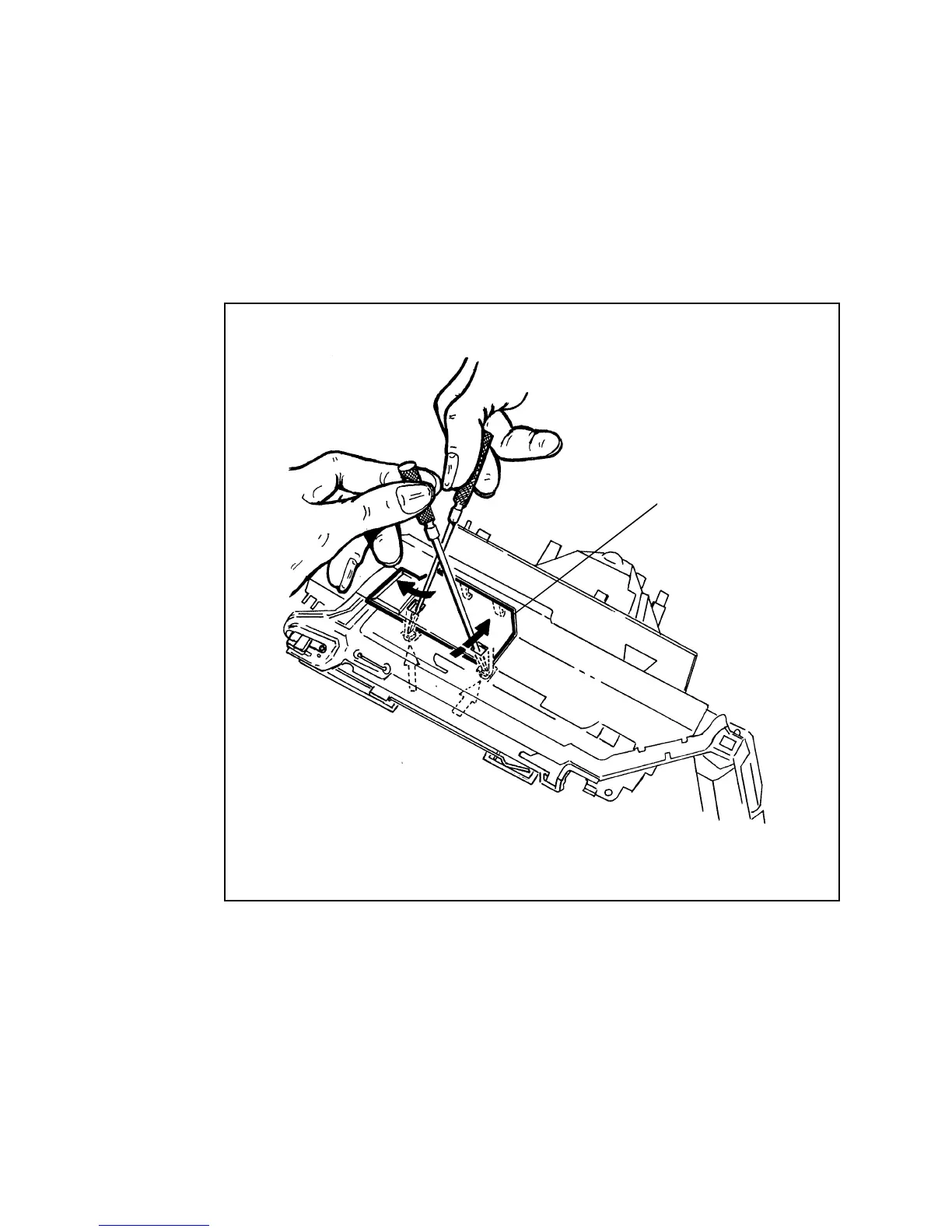

Figure 3-27. Removing Motor Flex Retainer from Gear Drive Cover
b. Remove the Motor Flex, freeing it from the Speed Switch by depressing
the Wireforms of the Switch and lifting the internal locking tang A
out of the slot in the Flex (Figure 3-28). (If the internal locking tang
A is not lifted, the Flex may be damaged during removal from the
Speed Switch.)
c. Remove the Flex from the Motor.
MOTOR
FL EX
RETAINER
(RELEASE TABS BY TILTING BLADE
IN DIRECTION OF ARROWS)
