3 - 11
Front Bezel
1. Removal
With ProCam erected, remove Front Bezel from Shutter Assembly by
springing out the Viewfinder Side Cover, to release the tab on the end of
the Bezel (Figure 3-6). Front Bezel also has two tabs along its bottom
edge.

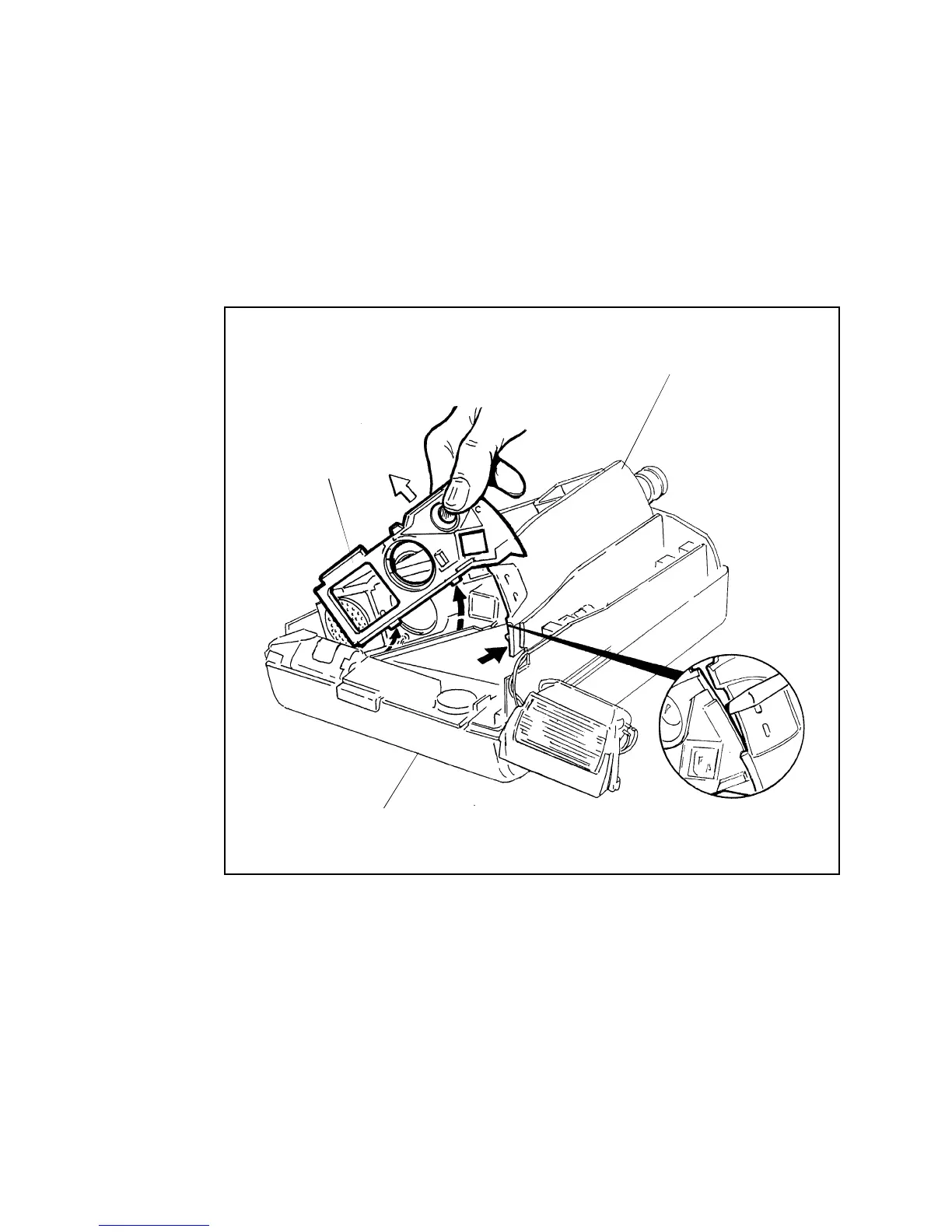

Figure 3-6. Removing Front Bezel
2. Replacment
With ProCam erected, spring out the Viewfinder Side Cover to accept the
tab at the bottom right end of the Bezel (Figure 3-6), and at the same time
locate the two tabs along the bottom edge of the Bezel into their openings in
the front lip of the Bellows/Cone Assembly.
FRONT BEZEL
VF SIDE COVER
PROCAM
