2 - 19
5. When the Strobe Exposure Test reading is within specification, replace the
Top Cover.
Note: If adjusting the IR Strobe Calibration Slide fails to bring the readings
within specification, refer to the steps 4 and 5 of the Strobe Exposure
Test procedure on page 2-12.

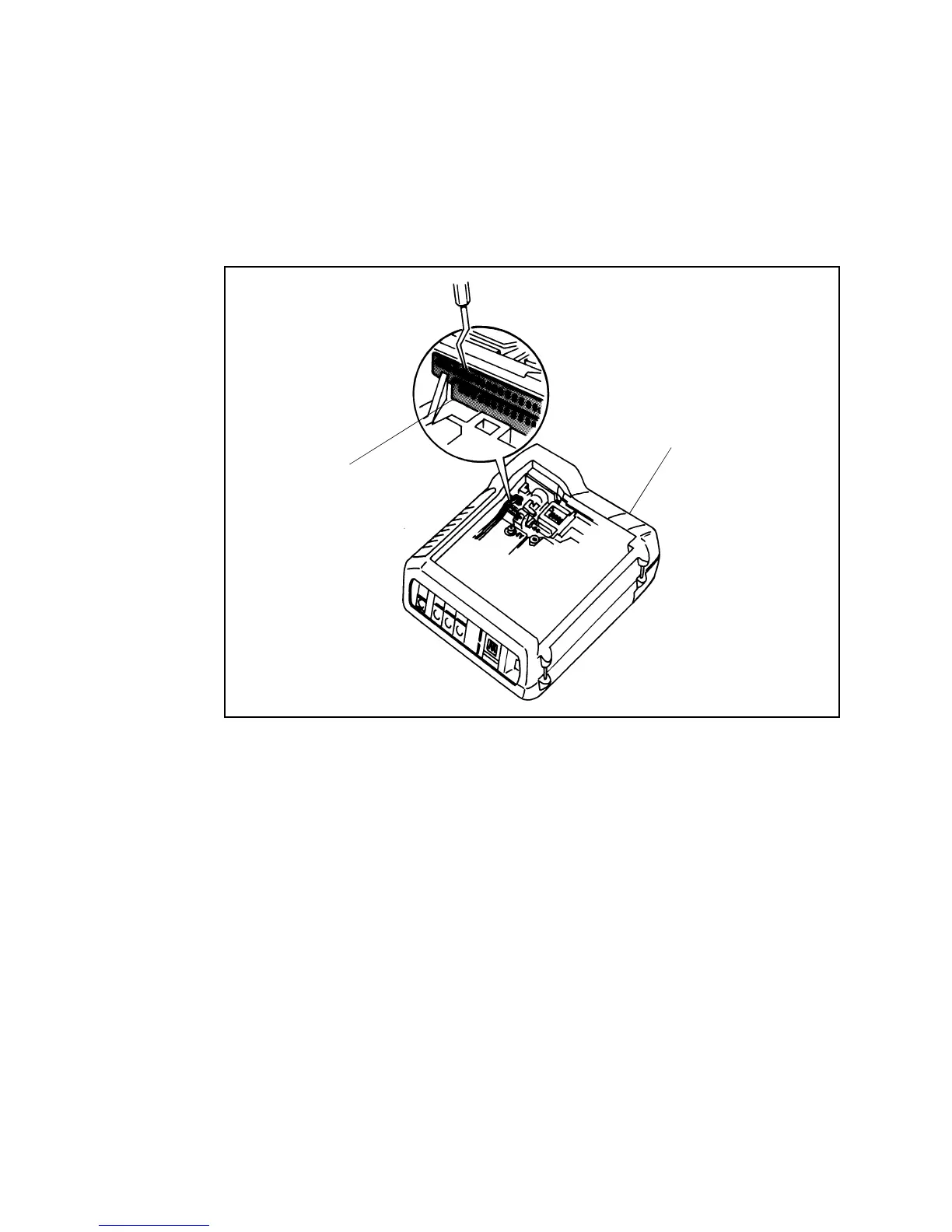

Figure 2-6. Adjusting IR Strobe Exposure Calibration Slide
Hybrid Adjustment (Opening Blade Spring)
1. Remove the Top Cover from the ProCam.
Note: Reference the Disassembly and Assembly procedures in Section 3 of
this Service Manual to remove the Top Cover.
Caution: High Voltage Exposure! Voltages up to 320 volts are present
on the top flash tube terminal (Green wire) and at various
other locations on the Strobe Board.
2. If the Hybrid (ZLS/Blade Speed) Test readings are to low, increase the tension
on the Opening Blade Spring (Figure 2-7) by moving it one notch to the right
(when facing the back of the ProCam).
PROCAM
IR STROBE
CALIBRATION
SLIDE
