Polaroid ProCam - Removal; Viewfinder and Eyecup

3 - 12
Viewfinder and Eyecup
1. Removal
a. Remove the Viewfinder by disengaging its front tab with a greenstick
(Figure 3-7): insert the greenstick from the front between the metal
finger on the Bellows/Cone Assembly and the slotted tab on the
Viewfinder; pry upwards. Now slide the Viewfinder to the rear and lift
it out.

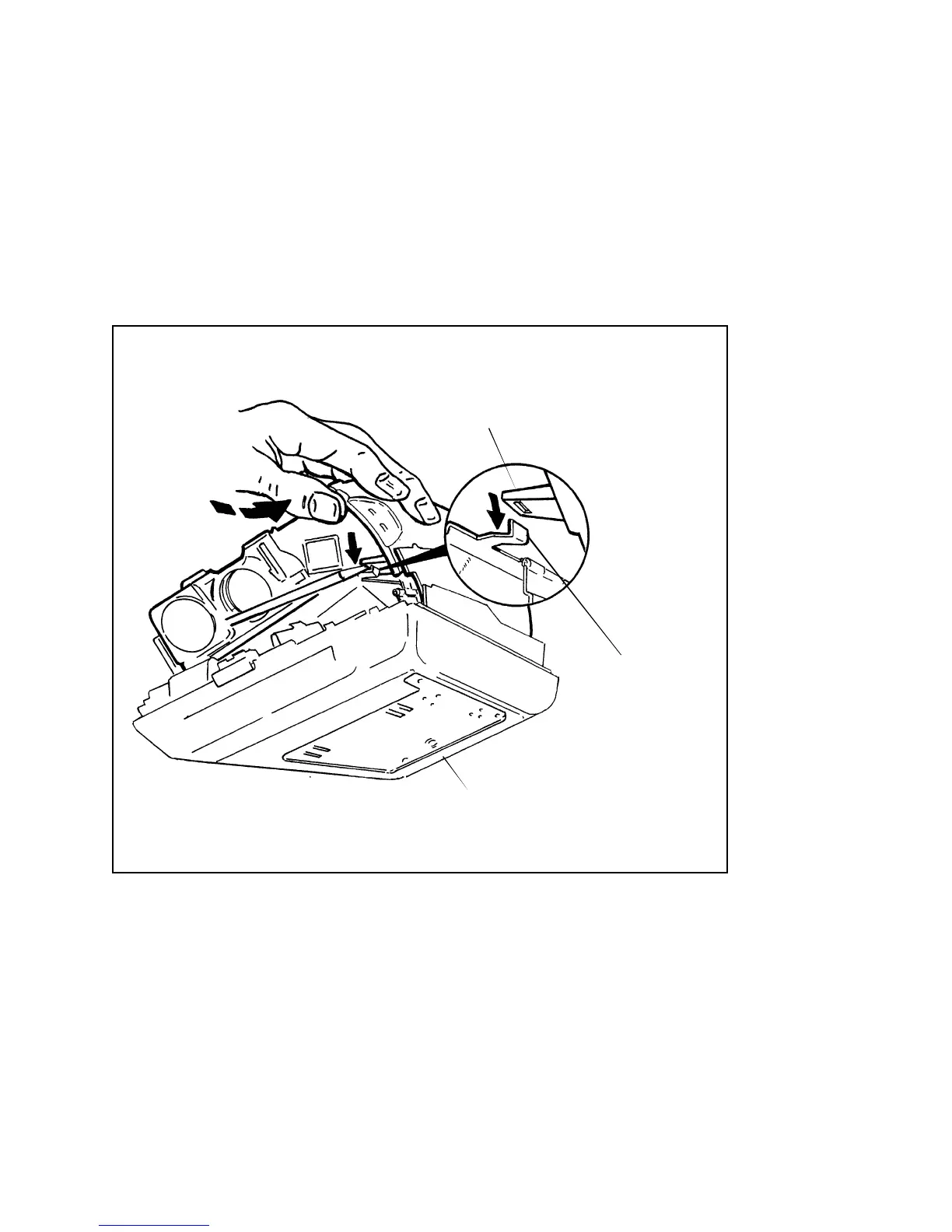

Figure 3-7. Removing Viewfinder Assembly
b. Remove the Viewfinder Eyecup by using tweezers to release the Eyecup
Retainer band, then pulling the Eyecup off the Viewfinder (Figure 3-8).
SLOTTED TAB
ON VIEWFINDER
FINGER ON
BELLOWS/CONE
ASSEMBLY
PROCAM
