Polaroid ProCam - Bellows;Cone Assembly; Removal

3 - 31
Bellows/Cone Assembly
1. Removal
a. Remove the two screws holding the Erect System to the Mainframe
(Figure 3-29).

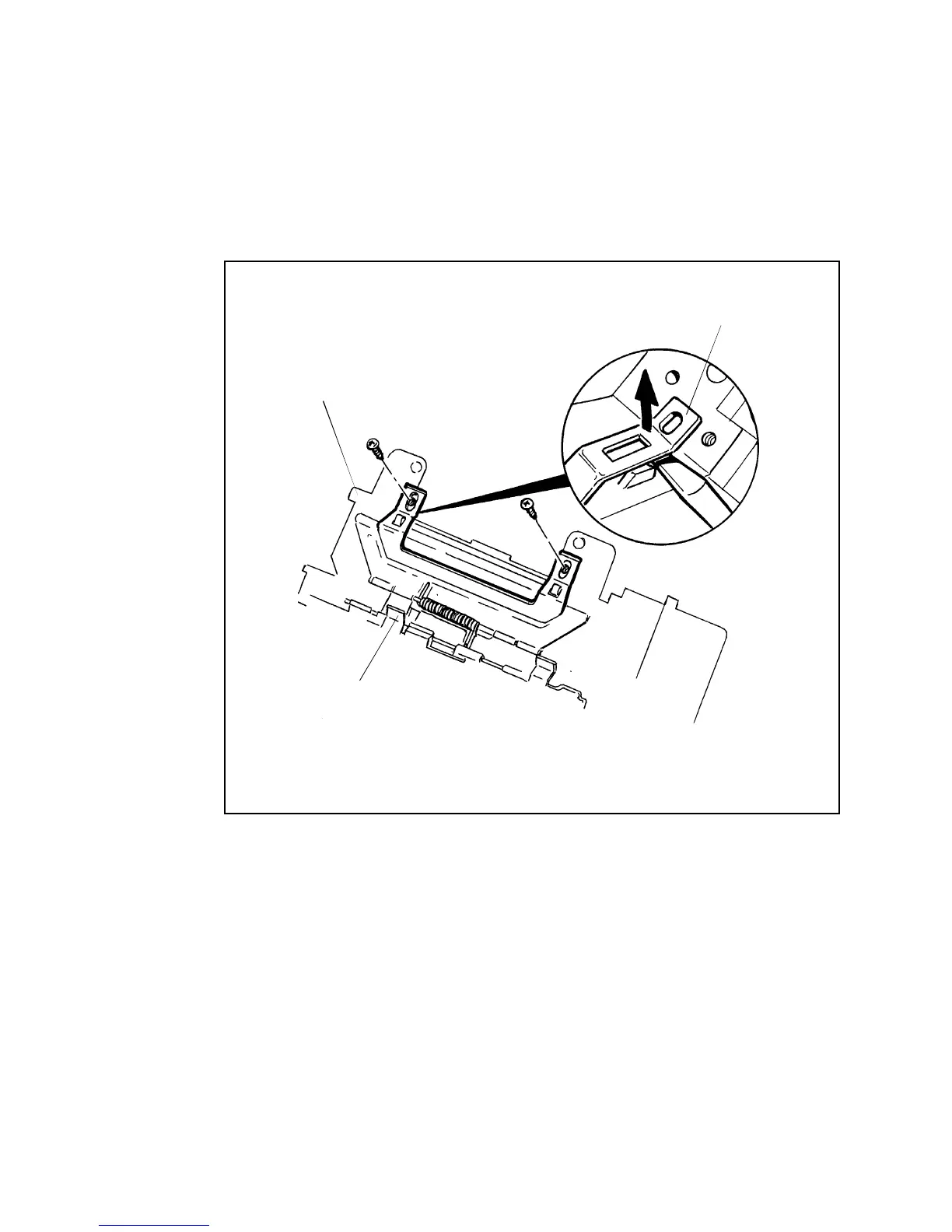

Figure 3-29. Removing Screws Holding Erect System
b. Remove the hold-down screw at the end of the Erect System hinge pin
(Figure 3-30).
Note: Hold-down screw may not be present on some models.
c. With a greenstick, gently release the locking tabs on the base of the
Bellows/Cone Assembly from the Mainframe (Figure 3-29).
ERECT SYSTEM
MAINFRAME
SPRING OUT
LOCKING TAB
