3 - 32

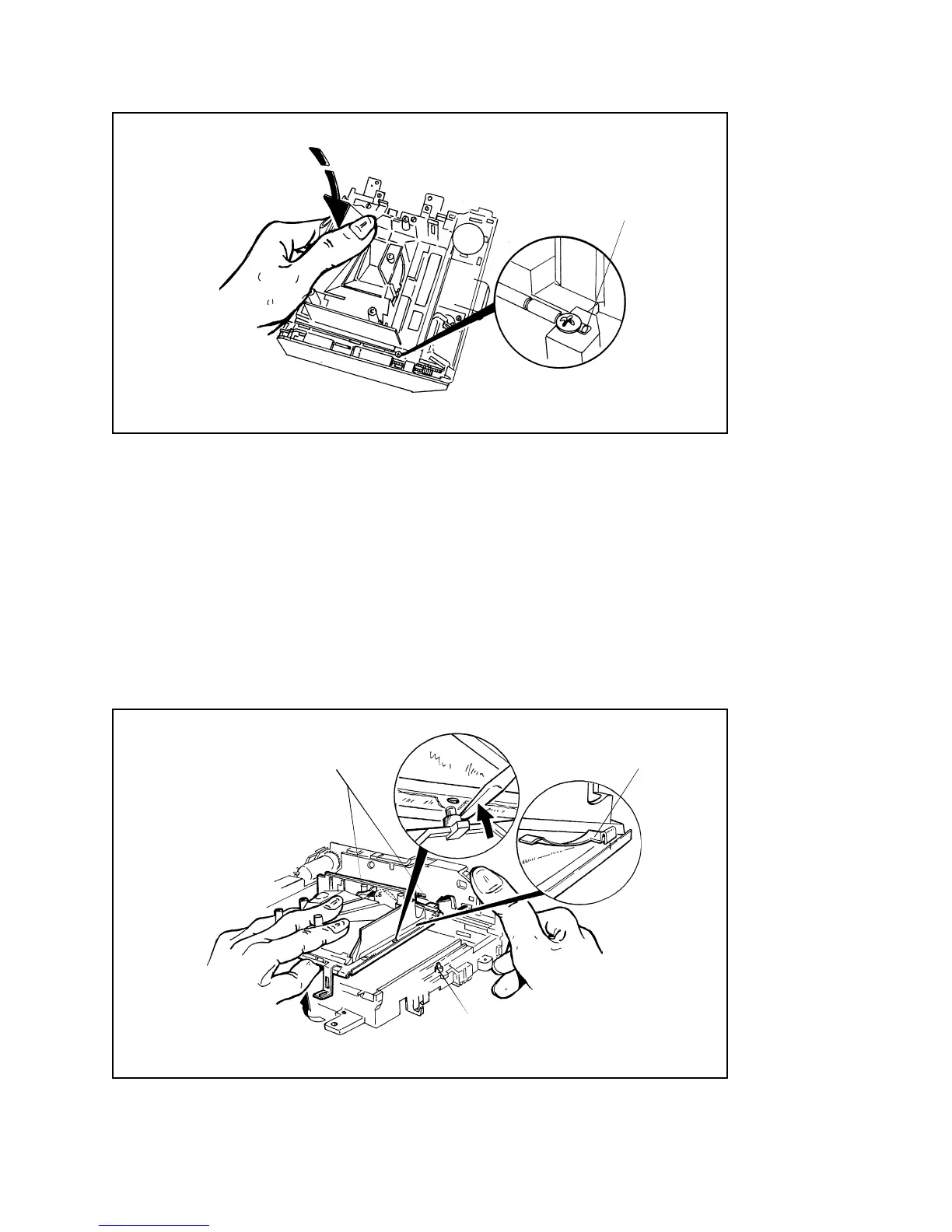

Figure 3-30. Removing Hold-Down Screws at End of Erect System
d. Lift the Bellows/Cone Assembly off the two locating pins on the Mainframe
(Figure 3-31).
e. Using one hand to keep the Bellows/Cone Assembly collapsed, lift up the
Erect Spring end of the Bellows/Cone Assembly and slide it out of the
Mainframe (Figure 3-31). (There are two tabs on the Assembly which must
be freed from their mounting slots on the back of the Drive System.) Re
move the Booster Spring from the Bellows rail.
Figure 3-31. Removing Bellows/Cone Assembly from Mainframe
HOLD-DOWN SCREW
(SOME MODELS
HINGE PIN
LOCATING PIN
ON MAUNFRAME
TABS
BOOSTER
SPRING
