2. Replacement
a. Manually push in the spring-loaded erecting mechanism A and hold the
Bellows/Cone Assembly down in a collapsed position (Figure 3-32).
b. Keeping the Assembly collapsed and at a slight angle to the Mainframe
(Figure 3-32), insert the tabs A into slots B in the rear wall of the
Gear Drive, and be sure the end of the hinge pin C seats in its recess
D. (If a stop screw was present at the end of the hinge pin, replace it
now.)

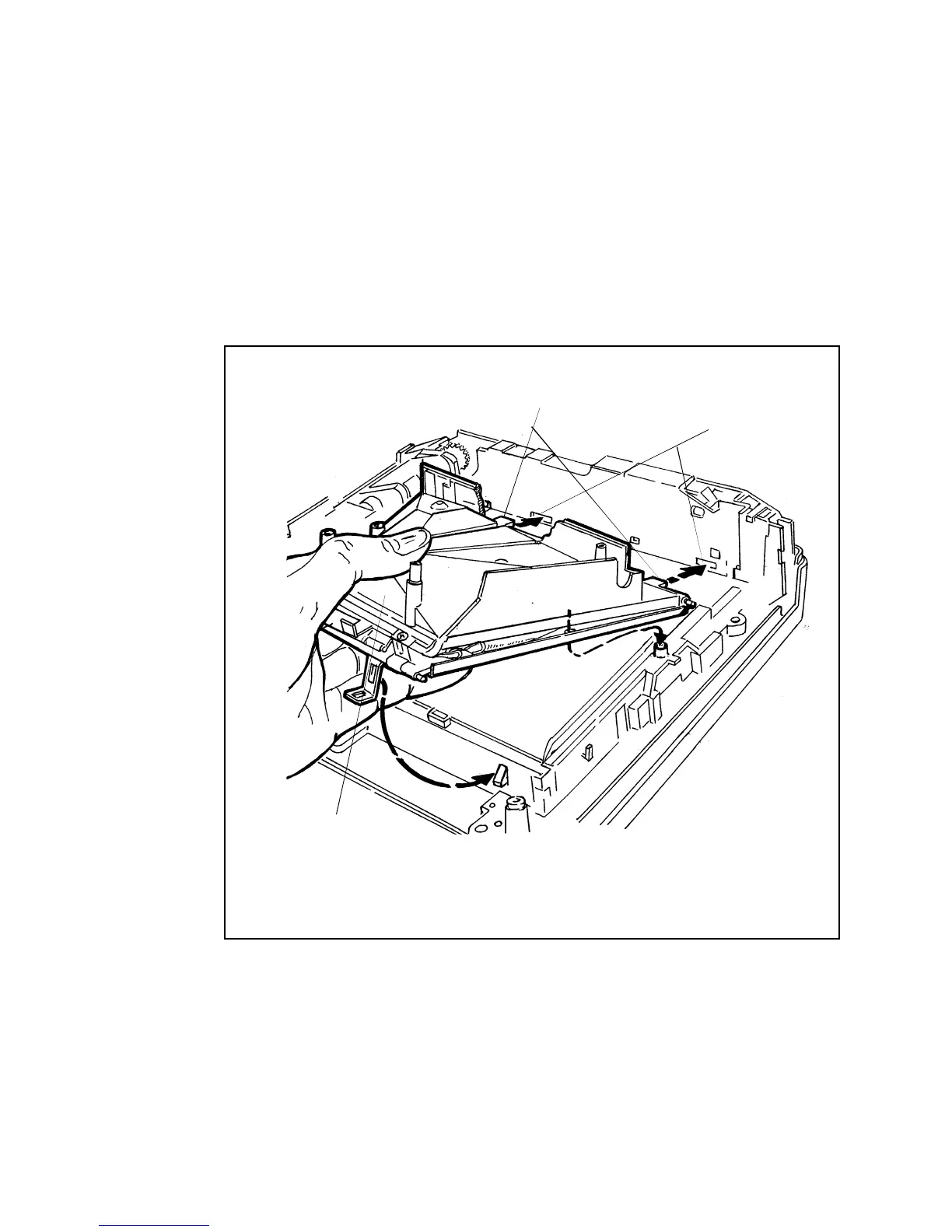

Figure 3-32. Bellows/Cone Assembly Ready for Installation in Mainframe
HOLD IN
COLLAPSED
POSITION
A
A
B
