Polaroid ProCam - Removal; Interface Board and Date Module

3 - 27
Interface Board and Date Module
1. Removal
a. Pull the end of the Flex out of J5 on the Interface Board (Figure 3-25).

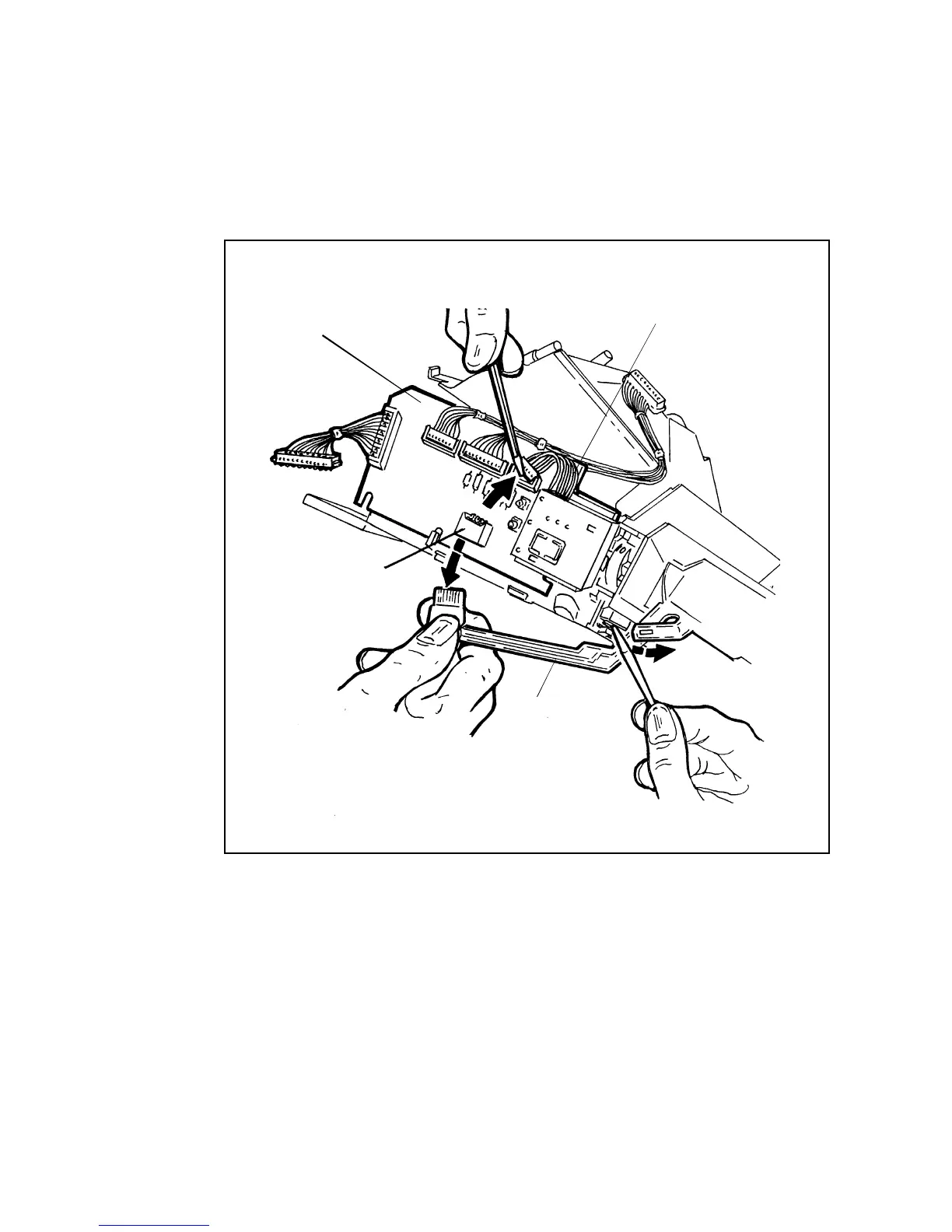

Figure 3-25. Removing Flex from Interface Board
b. Disconnect the Date Module cable from the Interface Board and lift out
the Interface Board.
c. Remove Date Module from Mainframe by depressing the locking
shoulder A in the Mainframe and sliding Module out (Figure 3-26).
FLEX
J 5
INTERFACE BOARD
DATE MODULE CABLE
