Polaroid ProCam - Removal; Replacement; Transducer Housing Assembly and Transducer; Cone Cap

3 - 17
Transducer Housing Assembly and Transducer
1. Removal
Unlatch the top T leg of the Transducer Housing Assembly from the Lens
Mounting Plate, then the bottom T leg, and lift it off the Lens Mounting
Plate (Figure 3-13).

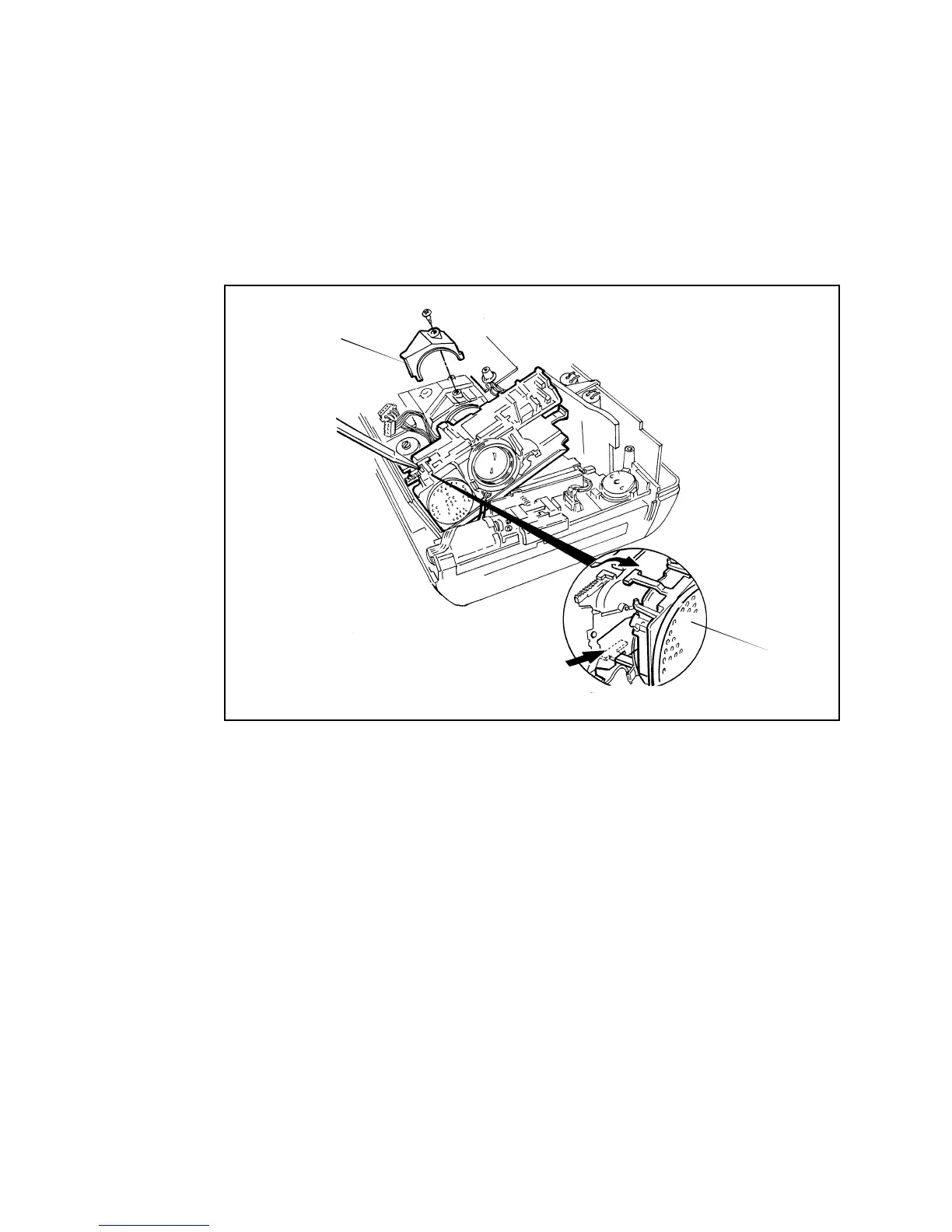

Figure 3-13. Removing Transducer from Shutter Assembly
2. Replacement
Locate the bottom T leg of Transducer Housing Assembly in the Lens
Mounting Plate, then press the Assembly into place, latching the top T leg
(Figure 3-13).
Cone Cap
1. Removal
Remove the Cone Cap screw and Cone Cap (Figure 3-13).
2. Replacement
Install the Cone Cap and screw (Figure 3-13).
CONE CAP
TRANSDUCER
HOUSING
