1 - 21
of both the Timing Gear and the Counter, while the Erect/Door Switch is actuated
by ProCam erection and Door closure.
Table 2-3. Wireform Switches - Starting Condition
Switch Function Condition
S10/S1 Initiates strobe charging; supplies power OPEN
(Shutter for ranging and preview; initiates cycle.
Button
not shown)
Erect/Door Switches power to ProCam with Door OPEN
(Fig. 2-22) closed and ProCam erected
S9 Initiates darkslide cycle. CLOSED
EOP End-Of-Pack - activates End of Pack. OPEN
EOC/S9 End-Of-Cycle - turns off Motor after OPEN
darkslide chime or processing cycle.
SPD Film speed - opened by insertion of CLOSED
“normal speed” film pack; remains
closed with “slow speed” film.

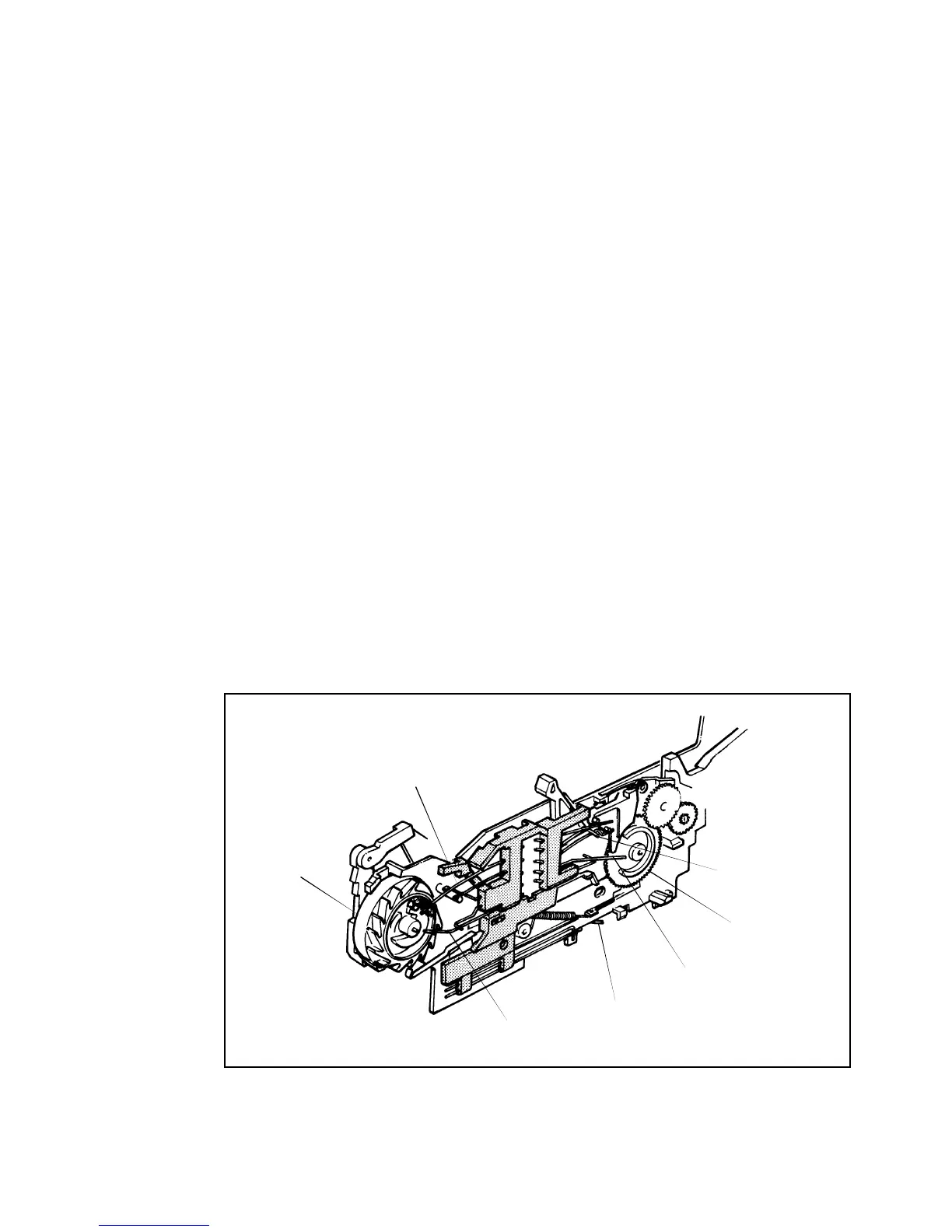

Figure 1-19. Wireform Switchblock and Drive Assembly
COUNTER
EOP
S9
SPD
TIMING GEAR
EOC/S9
VER (NOT USED)
SEE FIGURE 1-22
