1
- 23
With the
film pack
inserted into
the
ProCam,
the Door
may now
be closed
and
latched. This action
causes the Erect/Door Switch to close,
closing VER to B+
and supplying power to the ProCam
electronics. Figure 1-22 shows the various
stages of switch conditions.

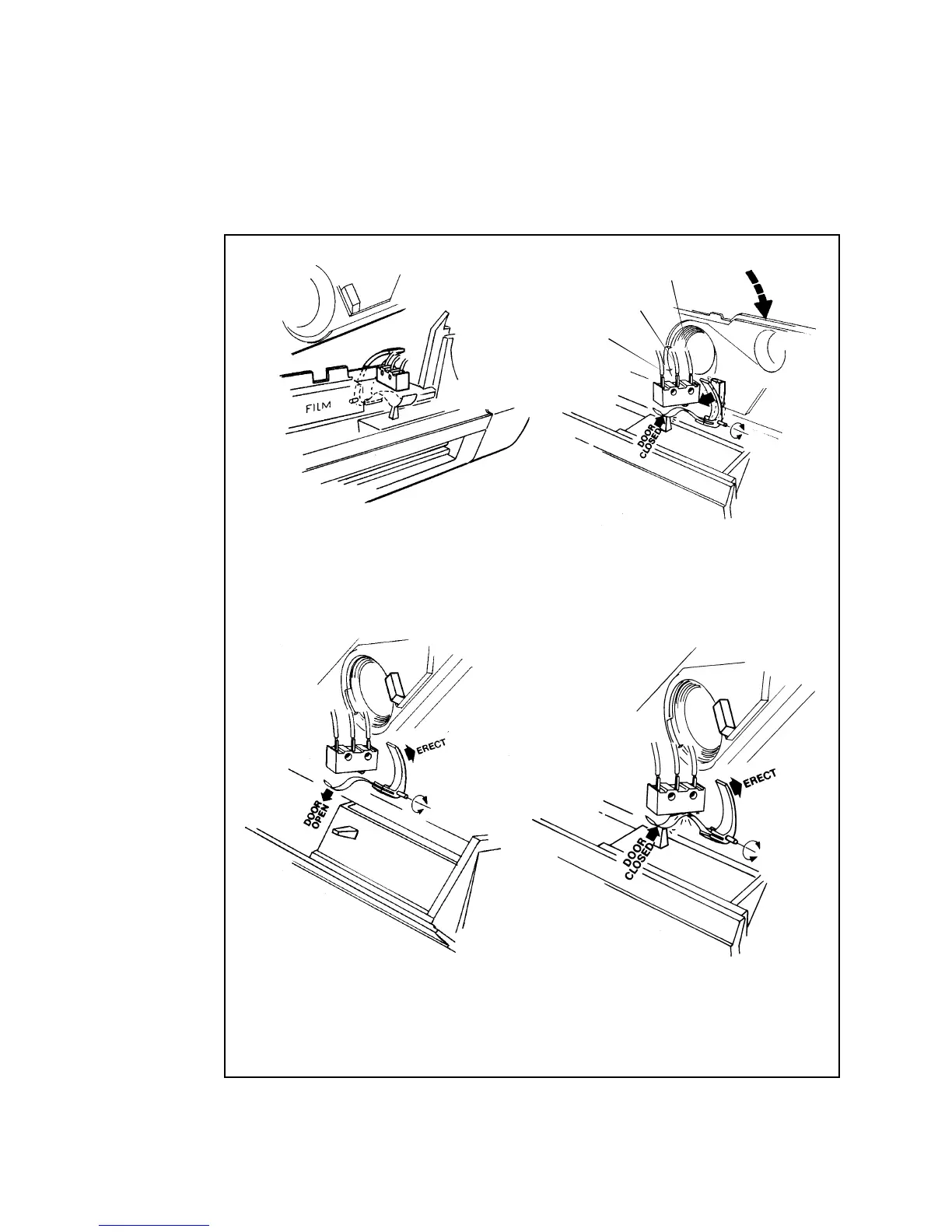

Figure
1-22.
Door/Erect
Switch Closure
ProCam Erected
and Door Open
ProCam Erected
and Door Closed
Erect/Door Switch Location
ProCam Collapsed and Door Closed
VE
R
B+
GN
D
COLLAPSED
28
30
Table of Contents
Default Chapter
2
Table of Contents
2
Manual Organization
6
Purpose of Manual
6
Other Documents Required for Service
6
1 Description & Theory of Operation
7
Procam Unique Features
8
Procam General Features
8
SPAR Thyristor Strobe
8
Procam Specifications
8
Viewfinder
13
Quintic Lens System
15
Exposure Control
20
First Light Detect
23
Dual Photodiodes
23
Procam System Autofocus
24
Electronic Trim
24
Film Speed Switch
25
Camera Inhibits
25
Date Module
26
Sequence of Operation
26
Starting Conditions
26
Film Pack Inserted and Darkslide
28
Exposure Mode
32
Film Processing and Cycle Advance
36
Procam Simplified Diagrams
39
Timing Diagram
40
Signal Distribution Diagram
42
2 Testing & Adjustments
43
Testing & Adjustments
45
STAR Tester
45
Basic Operation
45
STAR Tester
46
Controls and Indicators
46
Setup and Pre-Test Checks
48
Procam Tests
51
Ambient Exposure Test
52
Strobe Exposure (Graywall) Test
54
ZLS (Zonal Lumen Seconds) Graywall Test
55
Hybrid (Zls/Blade Speed) Test
56
Blade Speed Test
57
Strobe Integrated Current and Strobe Charge Time Tests
58
Procam Adjustments
59
Ambient Exposure Calibration Slide Adjustment
59
IR Strobe Exposure Calibration Slide Adjustment
60
Hybrid Adjustment (Opening Blade Spring)
61
Blade Speed Adjustment (Opening Blade Spring)
63
Solenoid 1 Adjustment for Quintic Position
64
3 Disassembly & Reassemblyparts Replacement
70
General Instructions and Tools Required
70
Partial Verus Total Disassembly
70
Shock Hazard from Flash Capacitors
70
Electrostatic Discharge Damage
70
Optical Parts Protection from Scratches and Smudges
71
Tools Required for Disassembly and Reassembly
71
Procam Disassembly and Reassembly Procedures
72
Top Cover and MID Cover
72
Removal
76
Replacement
76
Front Bezel
76
Removal
77
Viewfinder and Eyecup
77
Removal
79
Replacement
79
Close-Up Lens Switch
79
Removal
80
Replacement
80
Photodiode
80
Removal
82
Replacement
82
Transducer Housing Assembly and Transducer
82
Cone Cap
82
Removal
83
Shutter Assembly
83
Removal
84
Replacement
84
Exposure and Ranging PC Boards
84
Replacement
85
Removal
86
Replacement
86
Door Assembly
86
Removal
87
Replacement
87
Rear Panel
87
Removal
89
Strobe Board, Erect Latch and Cone Assembly
89
Replacement
91
Removal
92
Interface Board and Date Module
92
Replacement
93
Removal
94
Motor Flex
94
Replacement
95
Bellows/Cone Assembly
96
Removal
96
Piezo
100
Removal
100
Replacement
100
Door Latch/Erect Switch Assembly
101
Removal
101
Replacement
101
Removal
102
Replacement
102
Shutter Assembly
103
Disassembly
103
