A-14
A Optional Accessories
A.5.4 PSV-A-T18 Test Stand
A.5.4.1 Introduction
You can adjust the stand-off distance of the mounted scanning head precisely
using the test stand. The test stand is especially suitable for scanning very
small parts with the PSV-A-410 close-up unit on the scanning head.
The PSV-A-T18 test stand is made up of:
Motorized stageless telescope drive
Adapter plate for the PSV-I-500 scanning head
Drive control
Hand set
Optional:
Adapter plate for horizontal assembly
The vertical and the horizontal test stand are shown in the following figure.

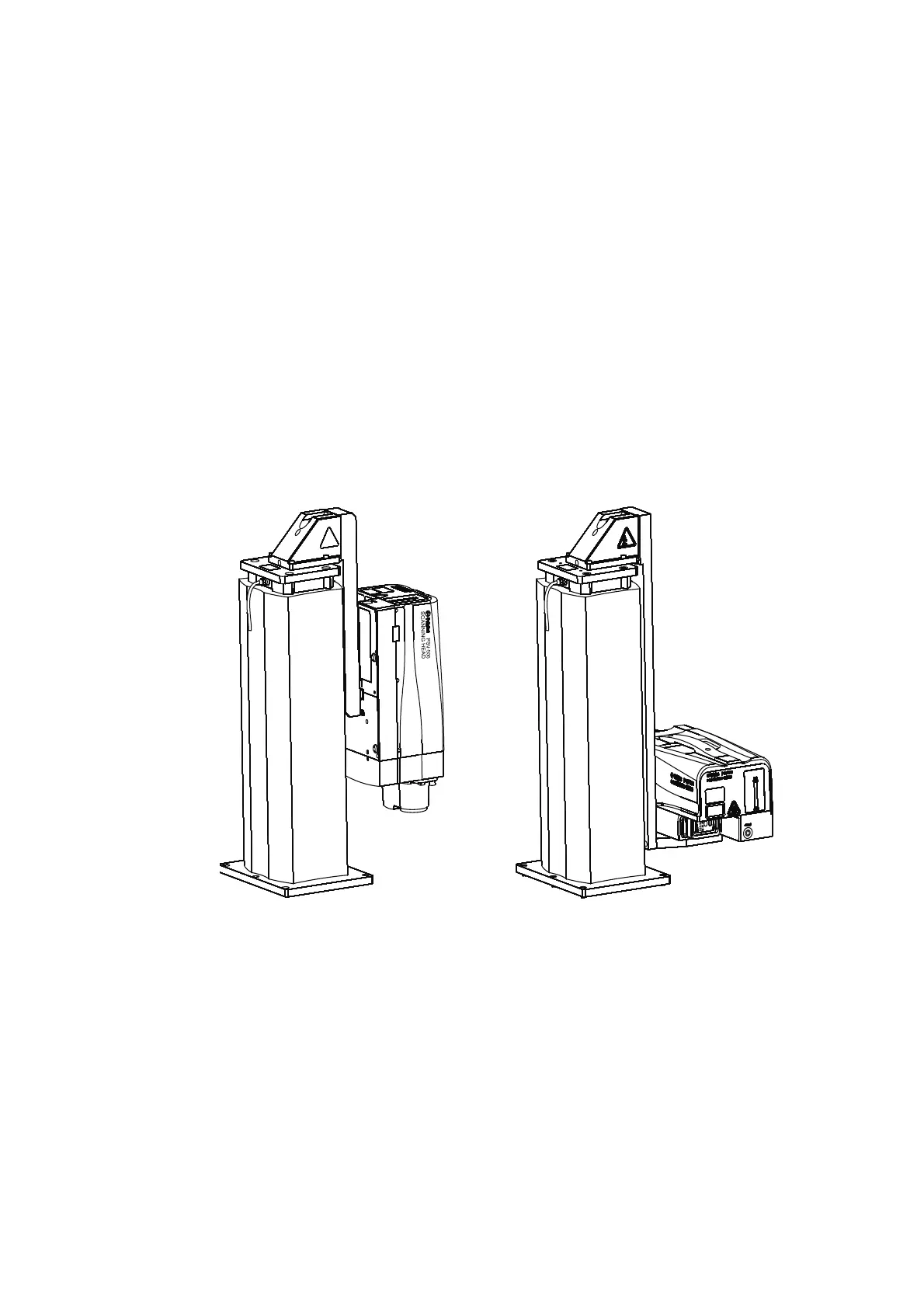

Figure A.8: Vertical test stand (left) and horizontal test stand (right) with scanning head and
close-up unit mounted
