A-23
A Optional Accessories
Side view

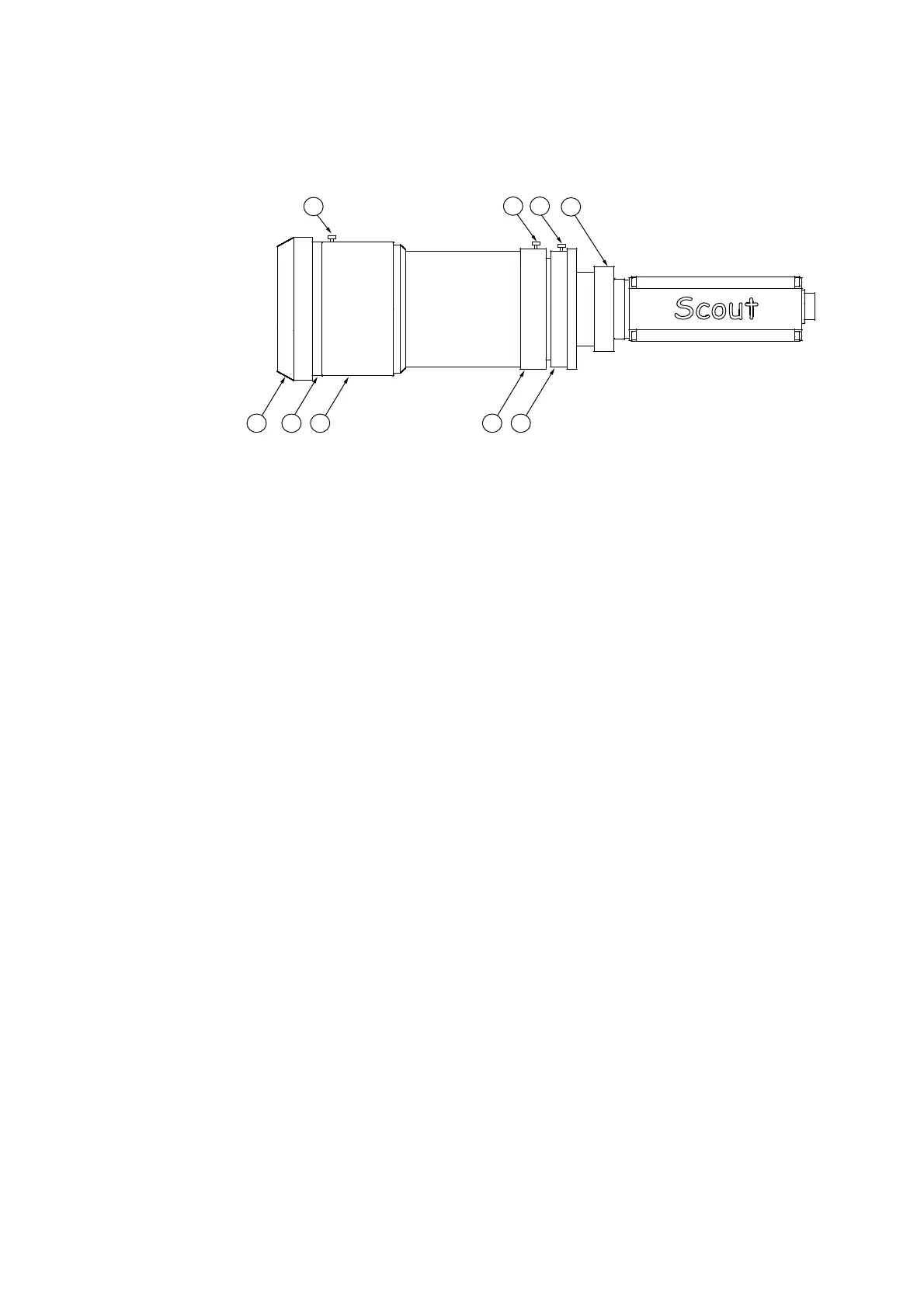

The side view of the video camera with zoom lens is shown in the following
figure.
Figure A.17: Side view of the video camera
1
Locking screws
Screws to lock the required settings for focus, zoom and aperture
2
Locking ring
Ring for setting the orientation of the zoom lens
3
Aperture ring
Ring for manual setting of the aperture
4
Zooming ring
Ring for manual setting of the focal length
5
Focusing ring
Ring for manual focusing
6
Close-up lens and front lens
Close-up lens for stand-off distances from 180 to 300mm (refer also to
SECTION
A.6.5.2)
7
PSV-A-445 helium-neon block filter
The filter reduces the intensity of the laser light scattered back to the video
camera by 98%.
4
5
7
6
3
1
2
11
