14
PORA ELECTRIC MACHINERY CO.,LTD.
Tension Controller
PR-DTC-4100.A / AD

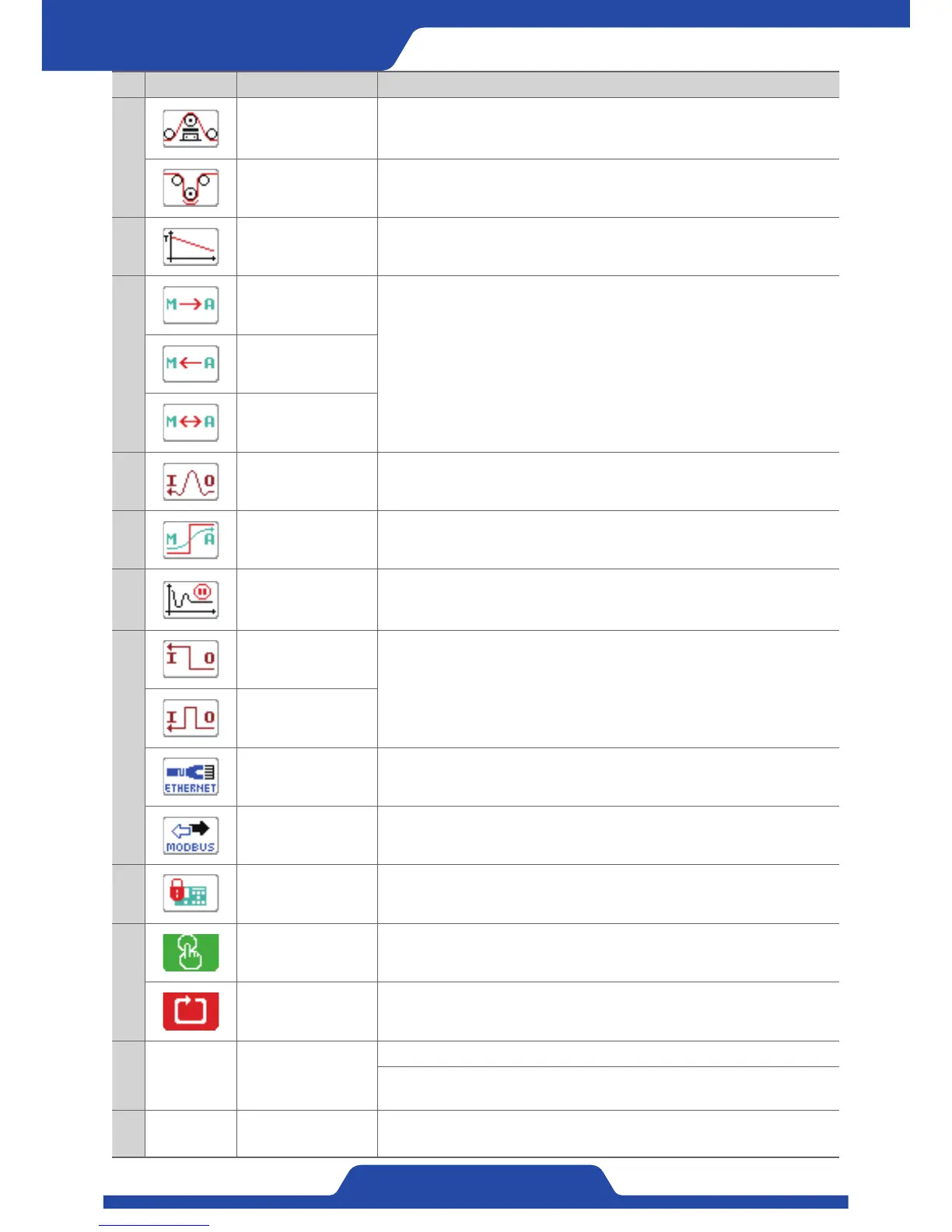

Icon Name Guidance
1
PRTL
PRLX
PRTP
●
It is shown when setting a sensor (tension detector).
- PRTL: Loadcell, PRLX: Pickup, PRTP: Differential pickup
DANCER ROLL It is shown when setting dancer roll.
2
Taper function It is shown when setting taper.
3
M/A CHANGE
MANU-->AUTO
It is shown when setting Manu/Auto interlock.
M/A CHANGE
MANU<--AUTO
M/A CHANGE
MANU<->AUTO
4
Using analog input It is shown when setting analog input.
5
Switching
Manu/Auto mode
It is shown when setting Auto/Manu mode switch.
6
Using output
maintenance
function
It is shown when setting output maintenance function.
7
Hold
It is shown the way of digital input signal chosen.
Pulse
Ethernet It is shown when setting Ethernet communication.
Modbus It is shown when setting Modbus communication.
8
Using lock function It is shown when setting lock function of operating part and dial.
9
Using manual mode It is shown when using manual mode.
Using Automatic
mode
It is shown when using automatic mode.
10 - Alarm
It shows the contents on specific operating status.
Key lock, Zero setting, Using remote, Remote unused, Faulty power,
Overheating, Overload A, Overload B
11 -
Indicating product
temperature
It shows temperature of drive board.
