Installation Instructions
1.

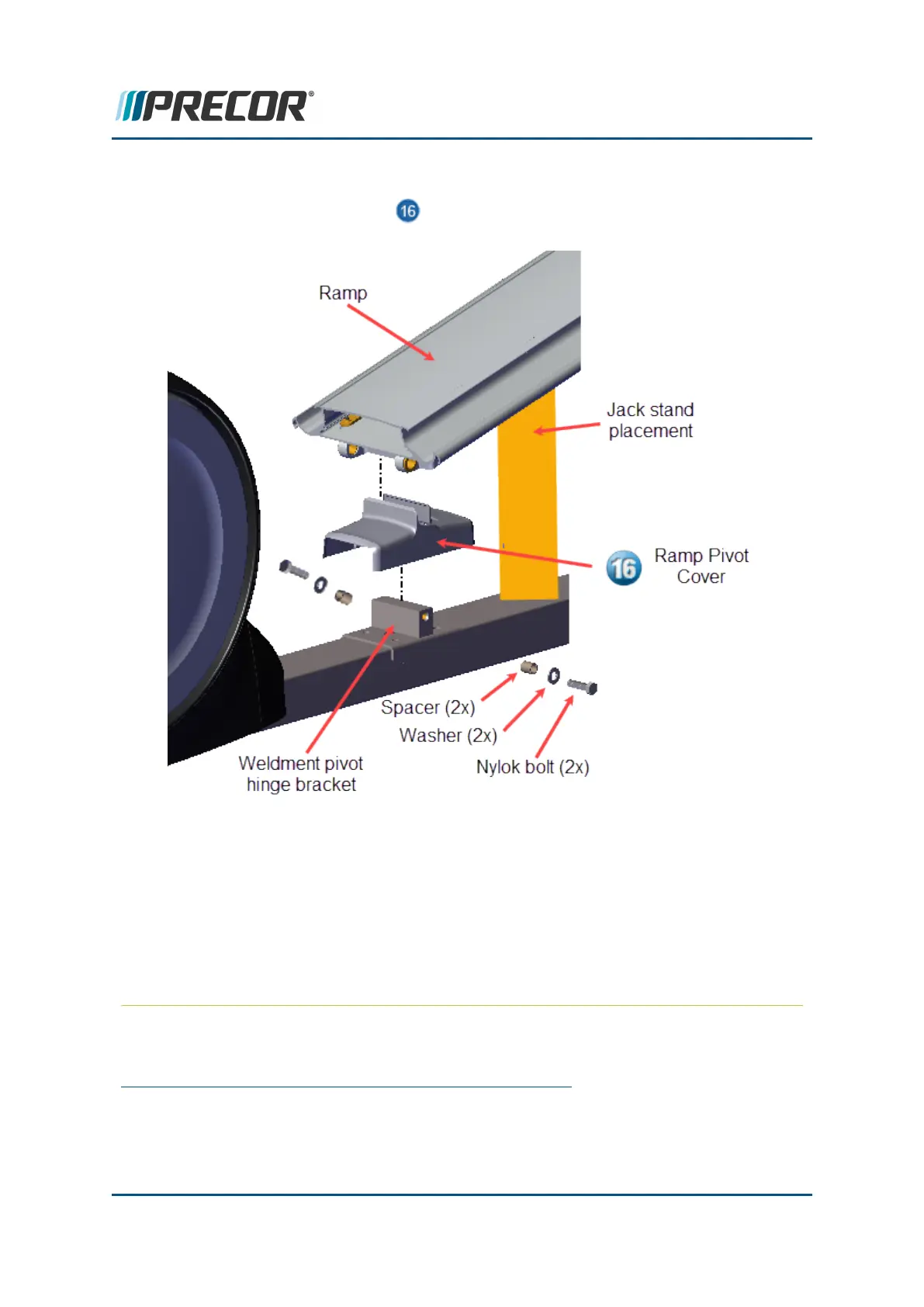

Reinstall the Ramp Pivot cover onto the frame weldment pivot hinge bracket.
2. Carefully remove the jack stand (or blocking material) and place the ramp onto the weld-
ment pivot hinge bracket.
3. Align the pivot bolt mounting holes and secure using the two 3/4" (19 mm) ramp pivot
bolts, flat washers, and spacers. Torque
1
bolts to 1080 in-lbs (90 ft-lbs or 122 Nm).
4. Reinstall the left and right Stairarm wheels onto the ramp. Insert the wheel from the bot-
tom of the track making sure that the wheel retainer is positioned underneath the ramp
track extrusion top lip. Verify that the Stairarm wheel is correctly installed by attempting
to pull the Stairarm upward off the track.
1
Torque is a measure of the force that can cause an object to rotate about an axis. Bolt/nut
example: 5 NM torque is equivalent to 5 newton's of force applied one meter from the center of
the bolt, 6 ft-lb is equivalent to 6 lbs of force applied 1 foot away from the center of the bolt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 99
6 Replacement Procedures
