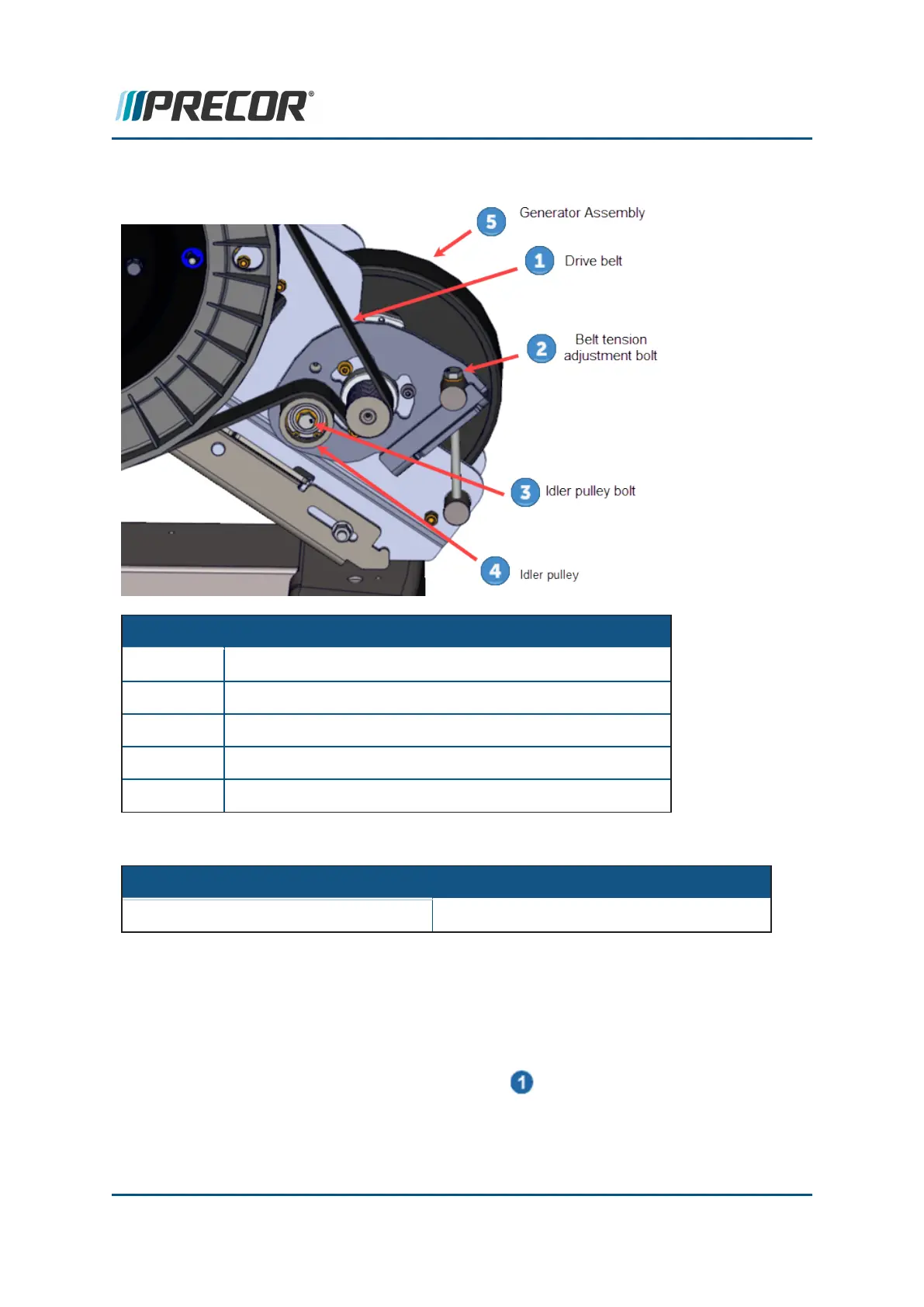

Exploded View
ID Cover
1 Drive Belt
2 Belt Tension Adjustment Bolt
3 Idler Pulley Bolt
4 Idler Pulley
5 Generator Assembly
Specifications
System Component Specification
Single Stage Belt Drive Tension 93-100 lbs (42- 45 kgs)
Procedure
Review entire procedure before starting.
1. Remove the Drive Housing Covers, see "Drive Housing Covers Replacement" on
page88.
2.
Place the belt tension gauge onto the drive belt midway between the drive and gen-
erator pulleys and measure the belt tension. If the tension is within specification 93-100
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 48
5 Adjustment/Calibration Procedures
Single Stage Drive Belt Tension Adjustment
