Precor Experience Series User Manual

Generator/Brake Assembly Replacement
About
The EFX600 ellipticals can be installed with either a single stage or a dual stage Input drive sys-
tem. This procedure provides instructions to remove/install the Generator/Brake Assembly for
either input drive system.

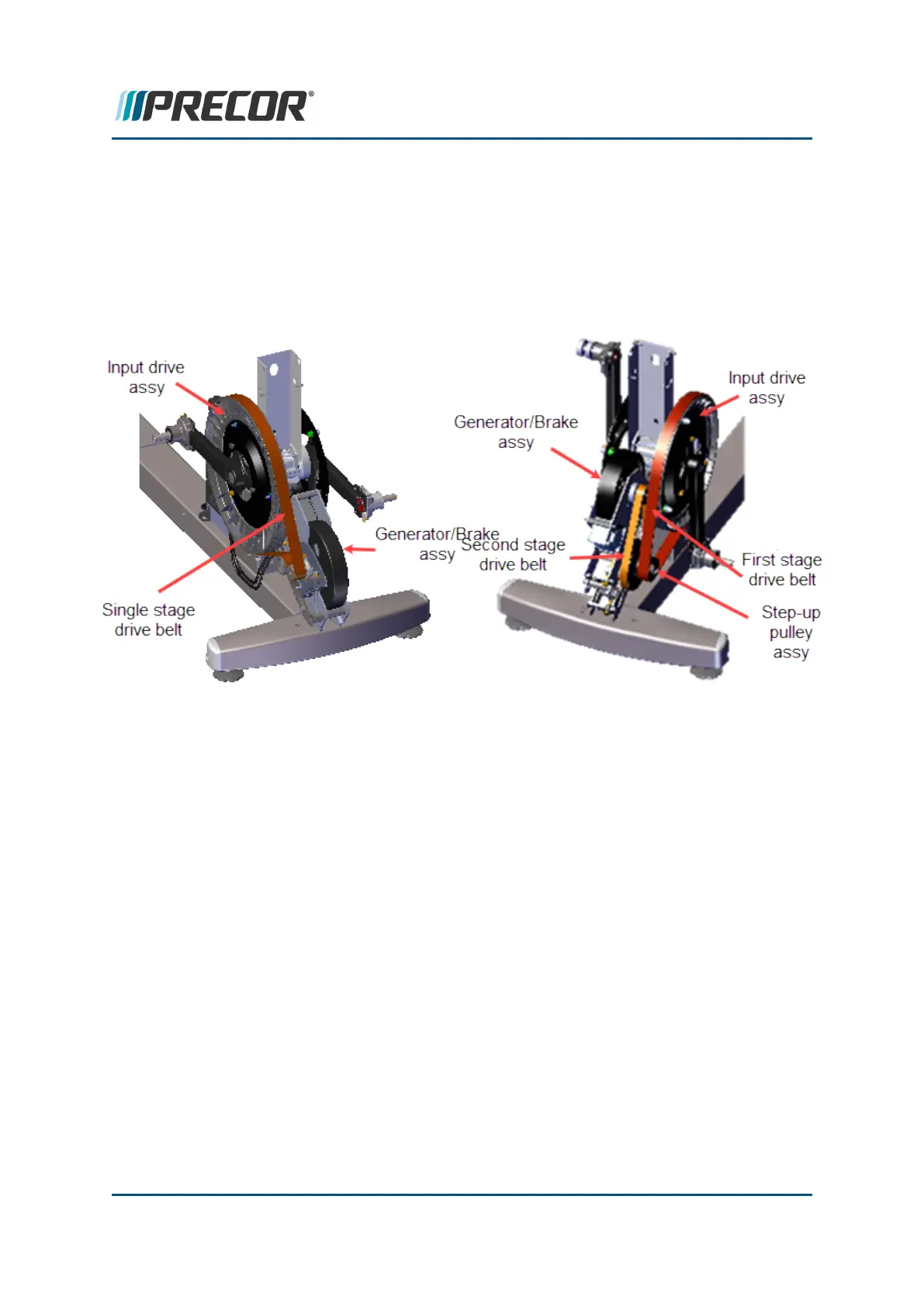

Single Stage Input Drive System Dual Stage Input Drive System
Single Stage Input Drive
l "Generator/Brake assembly Replacement" on page121
Dual Stage Input Drive
l "Drive Components assembly Replacement" on page127
l "Removal Instructions" on page135
l "Step-up Pulley/Tensioner assembly Replacement" on page143
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 115
6 Replacement Procedures
Generator/Brake Assembly Replacement
