Precor Experience Series User Manual

3. Adjust the first stage drive belt tension to specification, see "First Stage Drive Belt Ten-
sion Adjustment" on page52 .

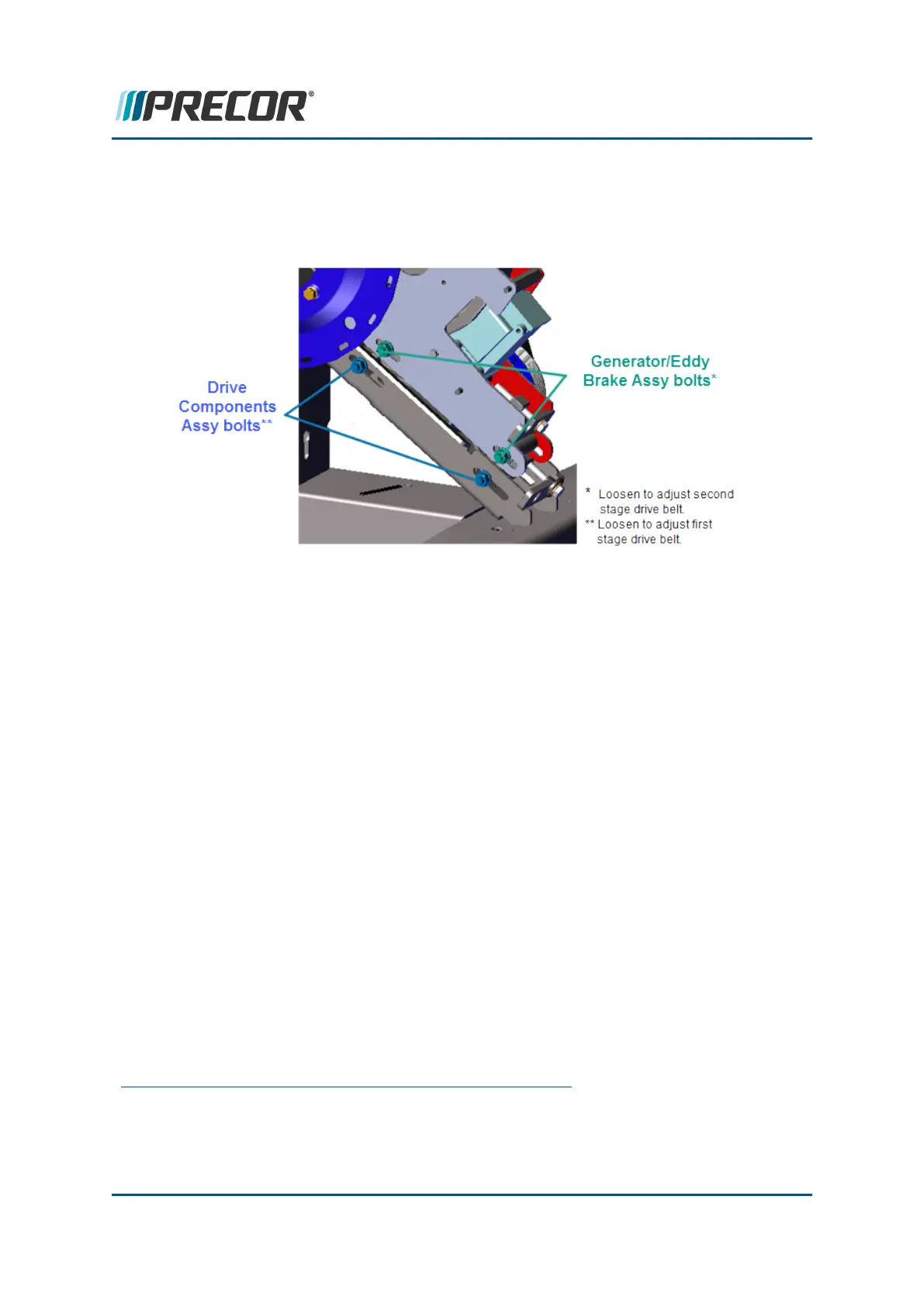

4. Use a 1/2" socket to fully tighten the two Drive Components assembly bolts. Torque
1
bolts to 180 in-lbs +/- 54 (20.3 +/_ 4.5 Nm).
5. Adjust the second stage drive belt tension to specification, see "Second Stage Drive
Belt Tension Adjustment" on page56.
6. Use a 1/2" socket to fully tighten the two Generator/Brake assembly carriage bolts.
Torque both bolts to 180 in-lbs +/- 54 (20.3 +/_ 4.5 Nm).
7. Reinstall the left and right Drive Housing covers (includes reinstalling the Stairarms),
see "Drive Housing Covers Replacement" on page88. Reinstall any other removed cov-
ers.
8. Verify machine operation and return to service, see "Operation Verification" on page16.
1
Torque is a measure of the force that can cause an object to rotate about an axis. Bolt/nut
example: 5 NM torque is equivalent to 5 newton's of force applied one meter from the center of
the bolt, 6 ft-lb is equivalent to 6 lbs of force applied 1 foot away from the center of the bolt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 114
6 Replacement Procedures
Drive Belt Replacement
