Precor Experience Series User Manual

Dual Stage Generator/Brake Assy Replacement
Applies To: Dual Stage Input Drive
About

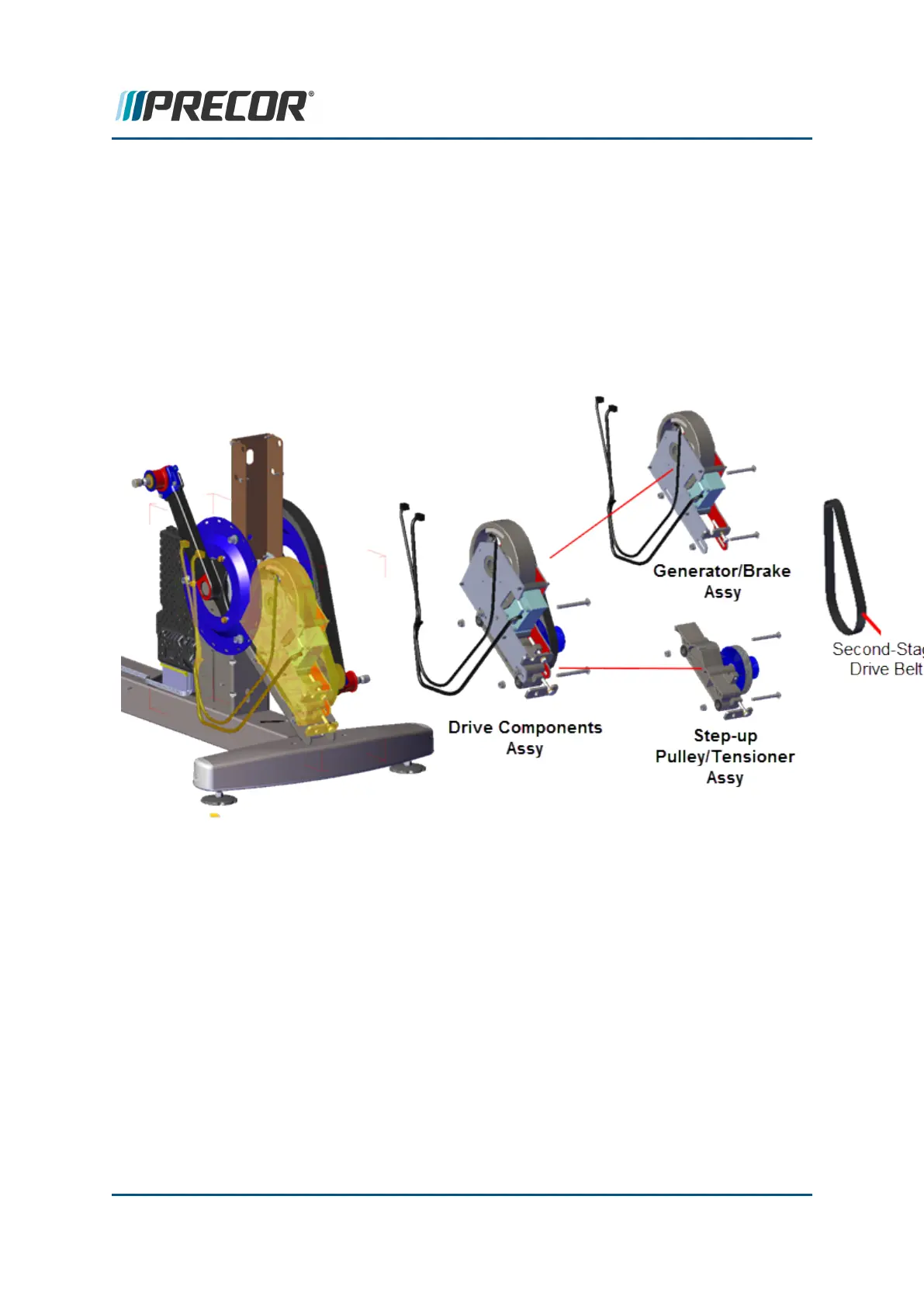

On dual stage input drive systems, the Drive Components assembly comprises the Gen-
erator/Brake assembly and the Step-up Pulley/Tensioner assembly. The complete Drive Com-
ponents assembly can be removed or the individual Generator/Brake assembly or the Step-up
Pulley/Tensioner assembly can be replaced. Select the removal procedure for the component
you want to replace.
Dual Stage Generator/Brake assembly Replacement Procedures
l "Drive Components assembly Replacement" on the facing page
l "Removal Instructions" on page135
l "Step-up Pulley/Tensioner assembly Replacement" on page143
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 126
6 Replacement Procedures
Generator/Brake Assembly Replacement
