Precor Experience Series User Manual

Second Stage Drive Belt Replacement
Applies To: Dual Stage Input Drive
About

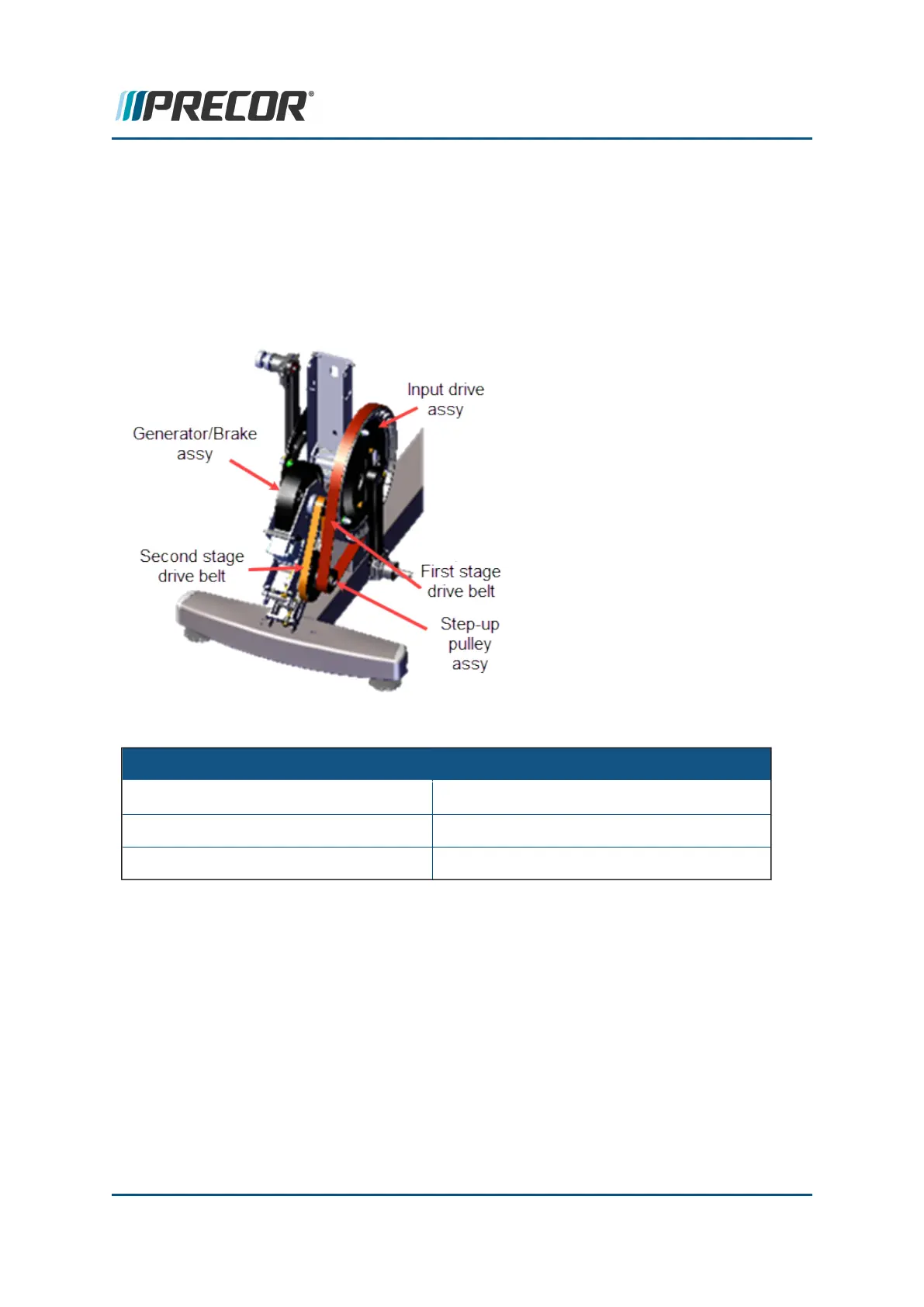

This procedure provides instruction to remove and install the Second Stage Drive Belt on a
Dual Stage Input Drive system. The second stage drive belt connects the larger pulley on the
step-up pulley assembly to the generator/brake assembly.
Specifications
System Component Specification
Second Stage Belt Drive Tension 110-120 lbs (50- 54.4 kgs)
Second Stage Belt Drive Tension - Used 92 - 105 lbs (43 - 47.6 kgs)
Drive Component Assy Carriage Bolts 180 in-lbs (20.3 Nm)
Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the left and right Drive Housing covers (includes removing the Stairarms from
the Input Drive Cranks), see "Drive Housing Covers Replacement" on page88.
2. Use a 1/2" socket to loosen the two Generator/Brake assembly and the two Drive Com-
ponents assembly carriage bolt nuts (left side). Loosen the nuts just enough to allow
movement but keep the carriage bolt heads inserted into the adjustment slots. Do not
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 110
6 Replacement Procedures
Drive Belt Replacement
