Installation Instructions

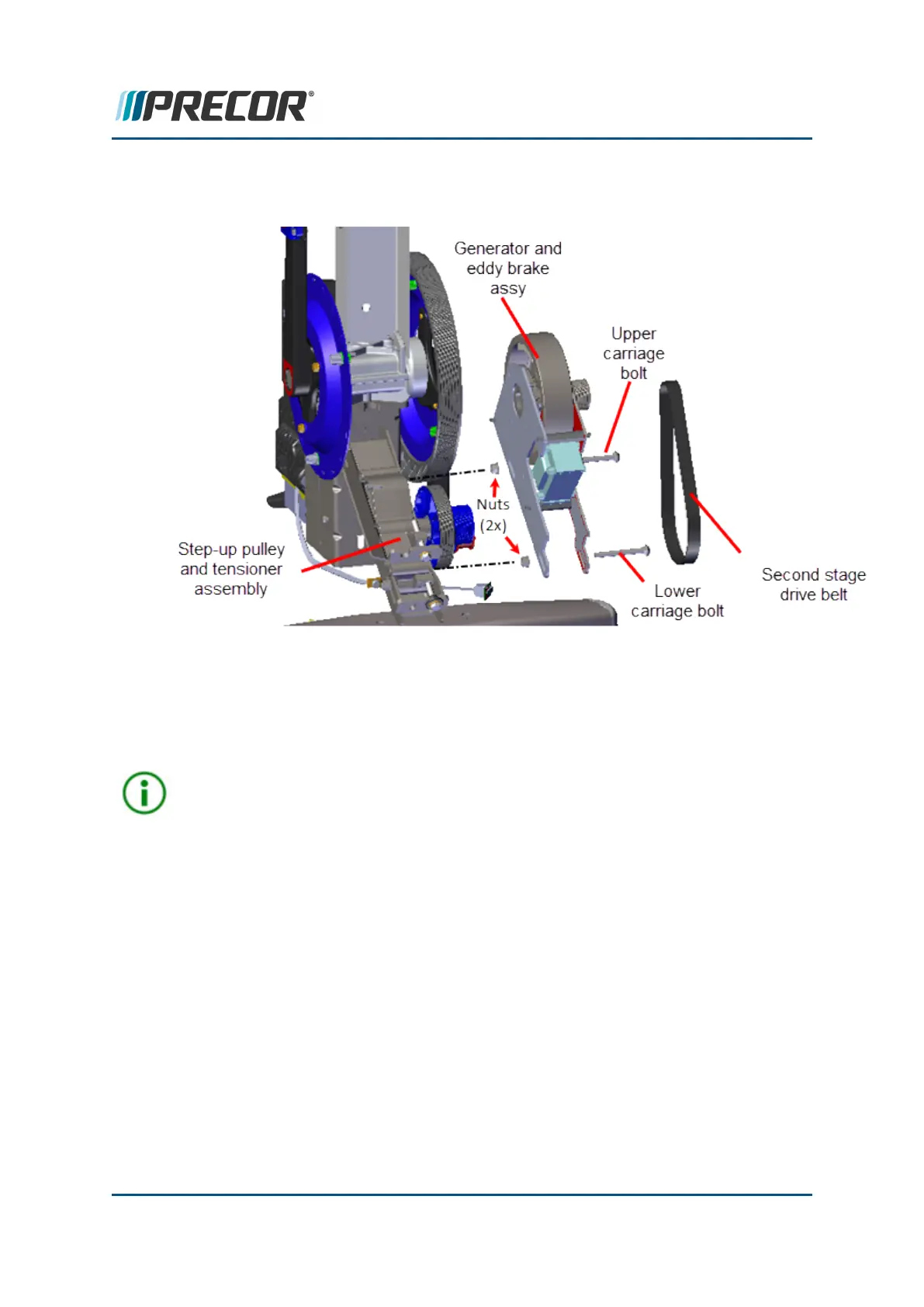

1. Reinstall the Generator/Brake assembly onto the Step-up pulley/Tensioner assembly.
2. Slide the Generator/Brake assembly down and install the upper carriage bolt. Tighten
the bolt just enough to keep the carriage bolt head inserted into the mounting slot but do
not fully tighten. Then slide the assembly upward and install the lower carriage bolt.
Tighten the bolt just enough to keep the carriage bolt head inserted into the mounting
slot but do not fully tighten.
TIP: Install the upper carriage bolt fastener first and then the lower. The upper bolt
cannot be installed when the lower bolt is installed.
3. Walk the second stage drive belt onto the Generator/Brake assembly pulley and larger
second stage Step-up Pulley/Tensioner assembly pulley.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 139
6 Replacement Procedures
Generator/Brake Assembly Replacement
