Dual Stage Drive Belt Tension Adjustment Procedures
Applies To: Dual Stage Input Drive
About

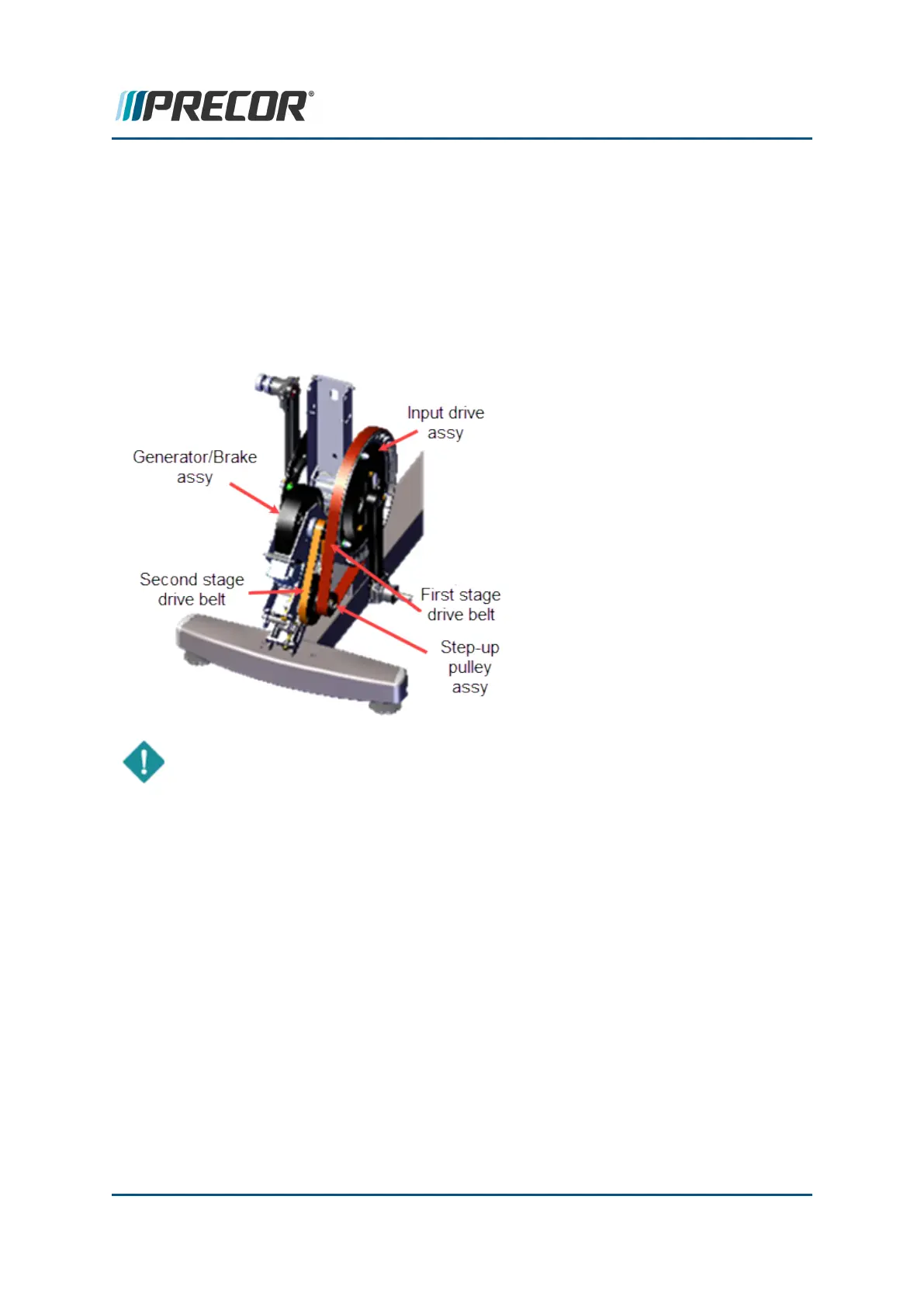

A Dual Stage Input Drive system uses a first-stage drive belt and second-stage drive belt sys-
tem to connect the Input Drive assembly pulley to the generator/brake assembly pulley.
Always adjust the first stage drive belt first and then the second stage drive belt.
IMPORTANT: Adjust the first stage drive belt tension prior to adjusting the second
stage drive belt tension.
Procedures
l "First Stage Drive Belt Tension Adjustment" on the next page
l "Second Stage Drive Belt Tension Adjustment" on page56
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
