Precor Experience Series User Manual

First Stage Drive Belt Replacement
Applies To: Dual Stage Input Drive
About

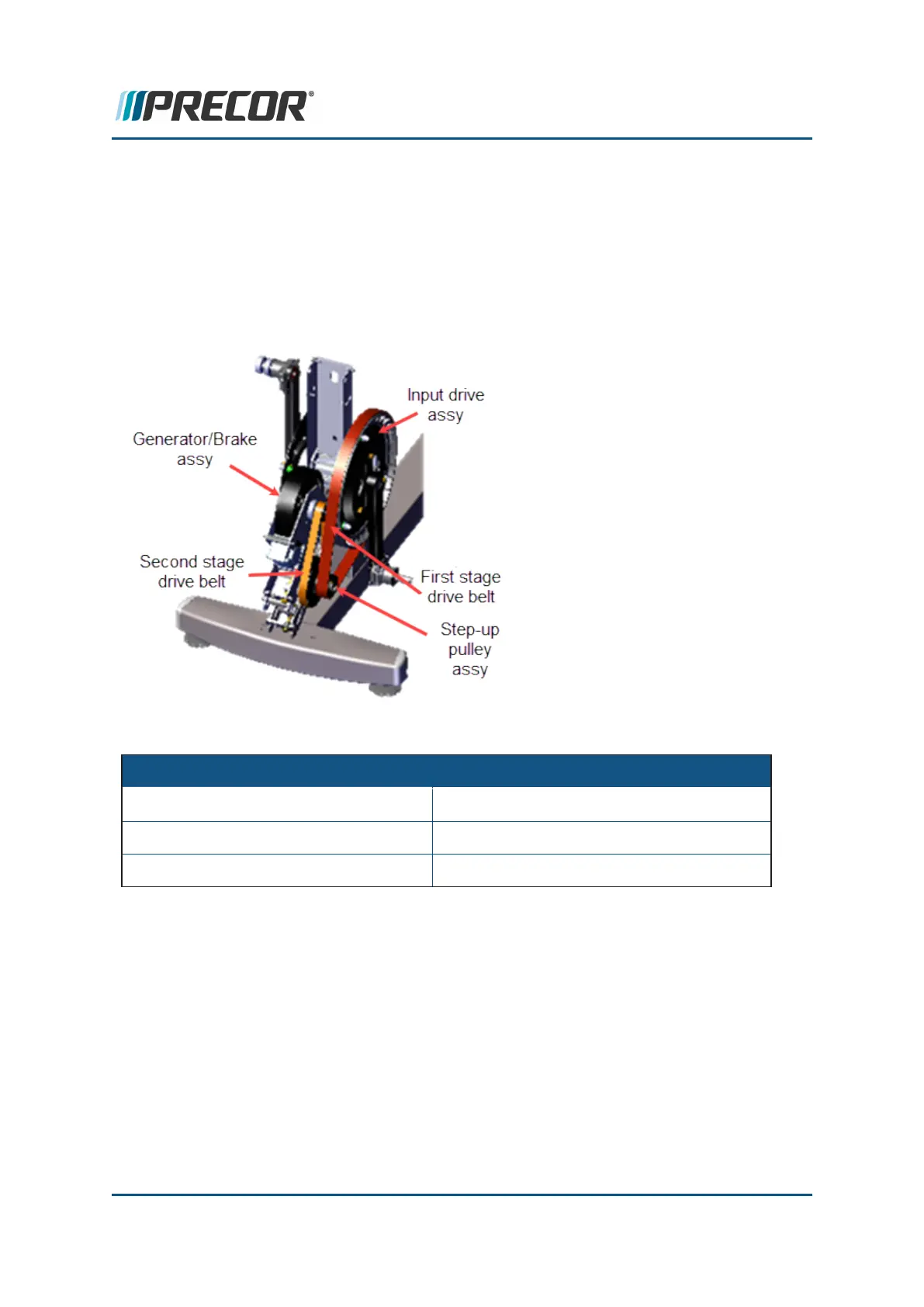

This procedure provides instruction to remove and install the First Stage Drive Belt on a Dual
Stage Input Drive system. The first stage drive belt connects the input drive to the smaller pul-
ley on the step-up pulley assembly.
Specifications
System Component Specification
First Stage Belt Drive Tension - New 140-150 lbs (63.5 - 68 kgs)
First Stage Belt Drive Tension - Used 125 - 135 lbs (56.7 - 61 Kgs)
Drive Component Assy Carriage Bolts 180 in-lbs (20.3 Nm)
Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove the left and right Drive Housing covers (includes removing the Stairarms from
the Input Drive Cranks), see "Drive Housing Covers Replacement" on page88.
2. Use a 1/2" socket to loosen the two Drive Components assembly carriage bolt nuts (left
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 106
6 Replacement Procedures
Drive Belt Replacement
