Drive Belt Replacement (single stage drive)
Applies To: Single Stage Input Drive
About
This procedure provides instructions to replace the drive belt for a Single Stage Input Drive sys-
tem. A single stage drive uses only one drive belt connecting the input drive to the gen-
erator/brake assembly.

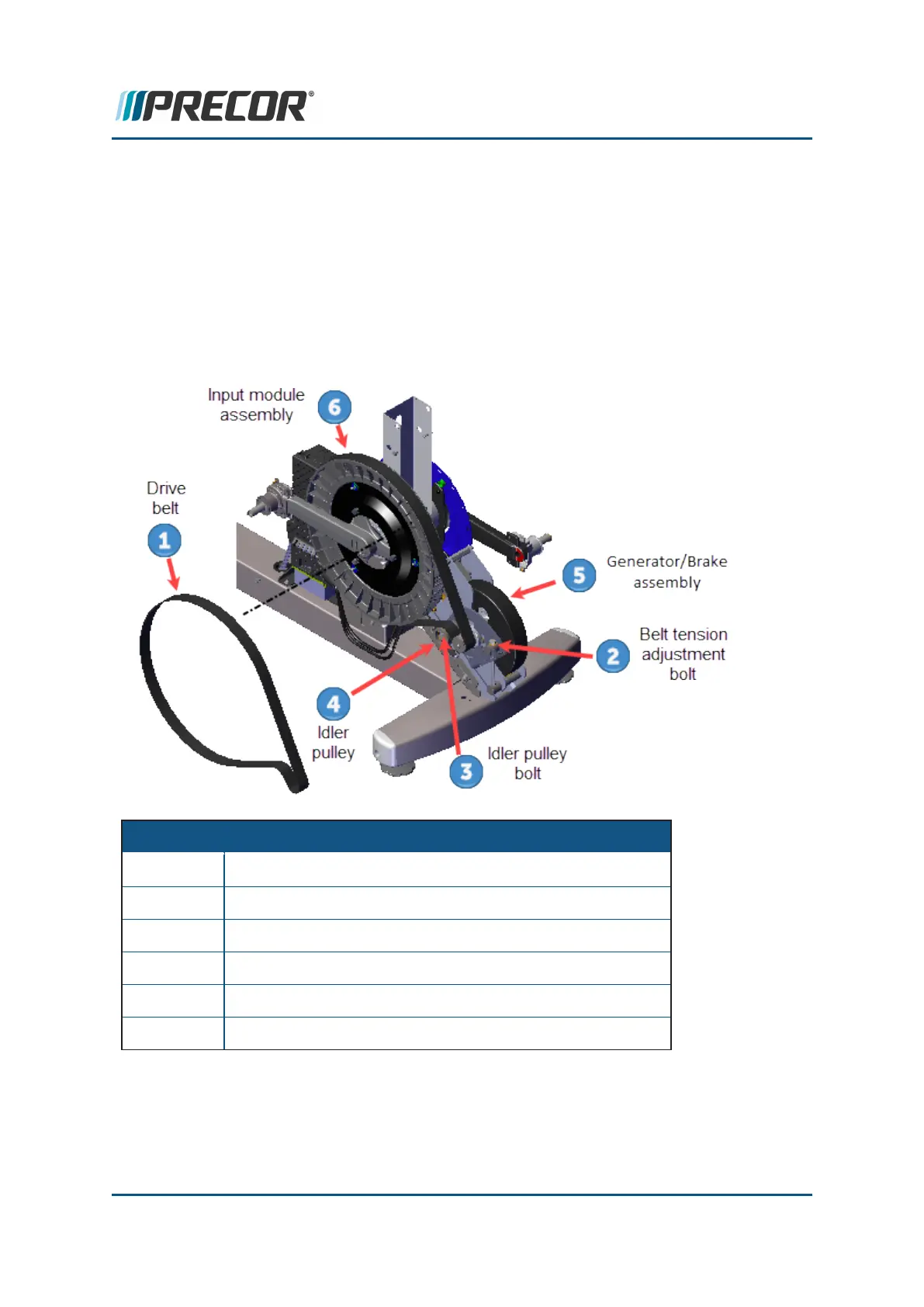

Single Stage Input Drive
ID Cover
1 Drive Belt
2 Belt Tension Adjustment Bolt
3 Idler Pulley Bolt
4 Idler Pulley
5 Generator/Brake assembly
6 Input Drive Assembly
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 103
6 Replacement Procedures
