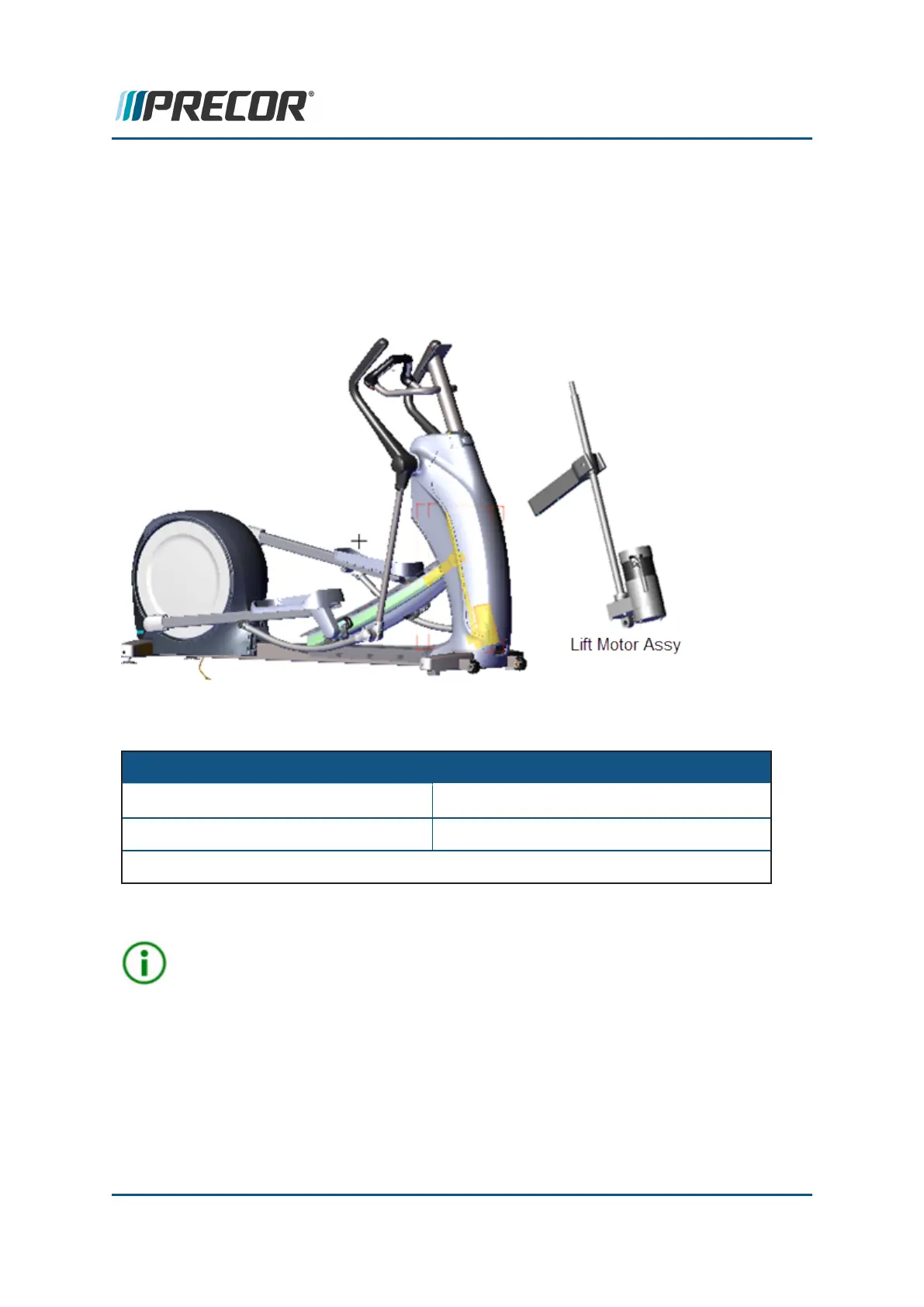

Lift Motor Calibration
About
This procedure provides instruction to verify and calibrate the Lift Motor Incline system. The
Lift Motor calibration should be verified anytime the Lift Motor fuse fails or is replaced, or any
incline system component is replaced.
Specifications
System Component Specification
Lift Motor Calibration Distance* 9" +/- 1/4" (23 cm +/- 0.6 cm
Yoke/Ramp Fasteners 330 in-lbs (27.5 ft-lbs or 37.2 Nm)
Note: * Calibration distance is set at incline level 10.
Procedure
TIP: To help keep your hands clean while doing this procedure, it is advised to wear
general purpose mechanics gloves. You will be handling the jackscrew which is
coated with a thin layer of grease.
Review entire procedure before starting.
Lift Motor Calibration Verification
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 60
5 Adjustment/Calibration Procedures
Lift Motor Calibration
