1. Remove the Goose Neck cover and Gasket, Lift Front cover (see "Lift Front Cover
Replacement" on page72), Lift Interface Plate cover (see "Lift Interface Plate Cover
Replacement" on page76), Accessory Tray cover (see "Accessory Tray Cover Replace-
ment" on page77), and Rear Lift cover (see "Lift Rear Cover Replacement " on
page77).
2. .Access the CROSSRAMP TEST diagnostic test and raise the crossramp incline to
level 10.
l On LED (P10, P30, P30i and P31) consoles: Access diagnostic test menu
(51765761) and select MACHINE TEST > CROSSRAMP TEST.
l On touchscreen (P62, P80, and P82) consoles: Access the Service menu
(51765761) and select System Settings > Systems Test > CrossRamp Test.
3. Then disconnect the Lift Motor input power cable to prevent accidental lift motor ramp
movement.
WARNING:Make sure to disconnect the Lift Motor input power/control cable or it is
possible for the crossramp to automatically lower to level 1 under certain cir-
cumstances, such as, if the CrossRamp Test is exited or the console powers down
and then the arms or pedals are moved. This unexpected action could cause per-
sonal injury.

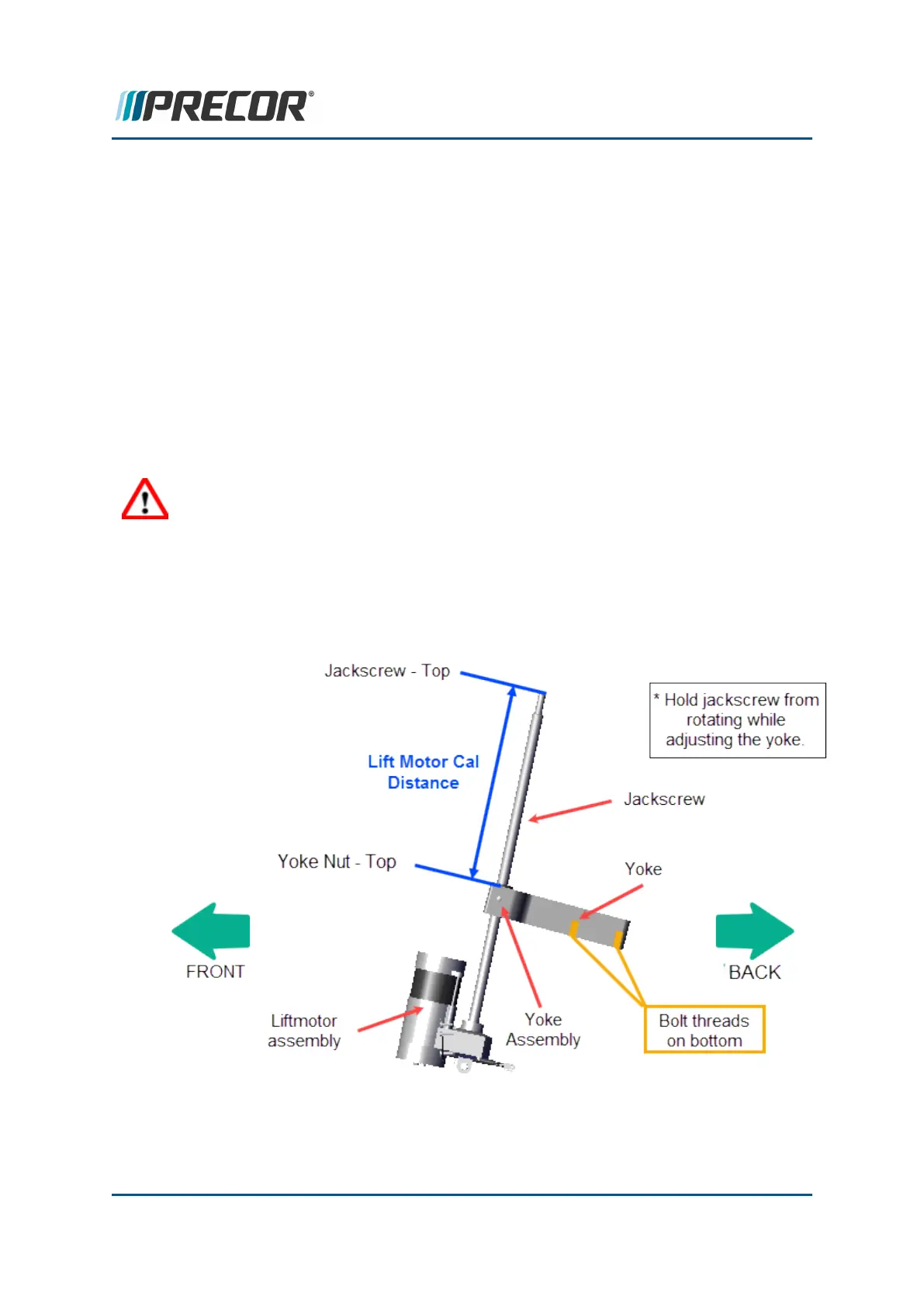

4. Measure and verify that the Lift Motor Cal Distance (distance from the top of the
jackscrew to the top of the yoke nut) is 9" +/- 1/4" (23 cm +/- 0.6 cm.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 61
5 Adjustment/Calibration Procedures
Lift Motor Calibration
