remove the fastener nuts.

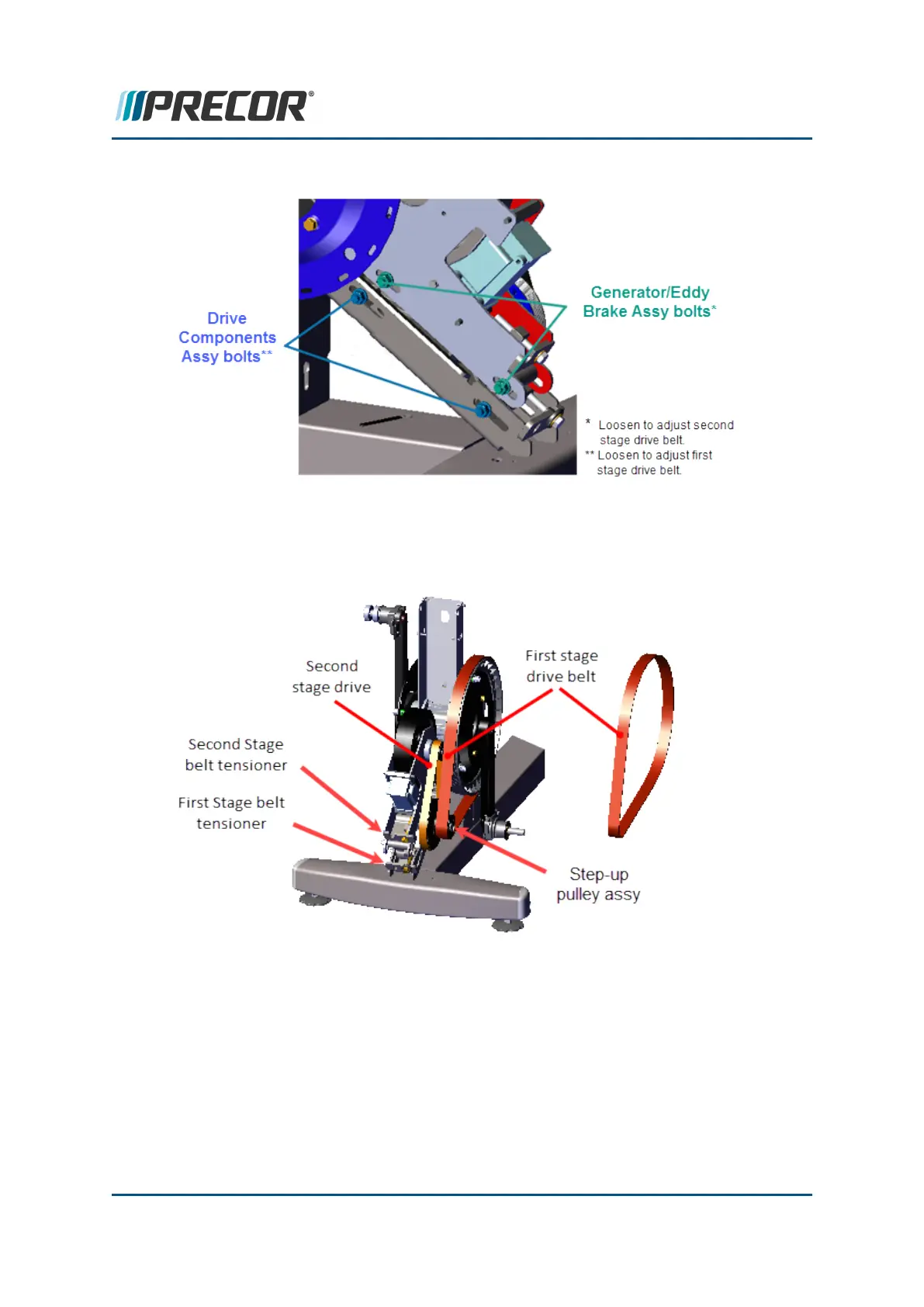

3. Use a 1/2" socket to loosen the first stage belt tensioner and walk the first stage drive
belt off the Input Drive and smaller Step-up Pulley assembly pulleys. Remove the first
stage drive belt.
4. Use a 1/2" socket to loosen the second stage belt tensioner and walk the second stage
drive belt off the generator/brake assembly pulley and larger Step-up pulley. Remove
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 111
6 Replacement Procedures
Drive Belt Replacement
