the second stage drive belt.
Installation Instructions

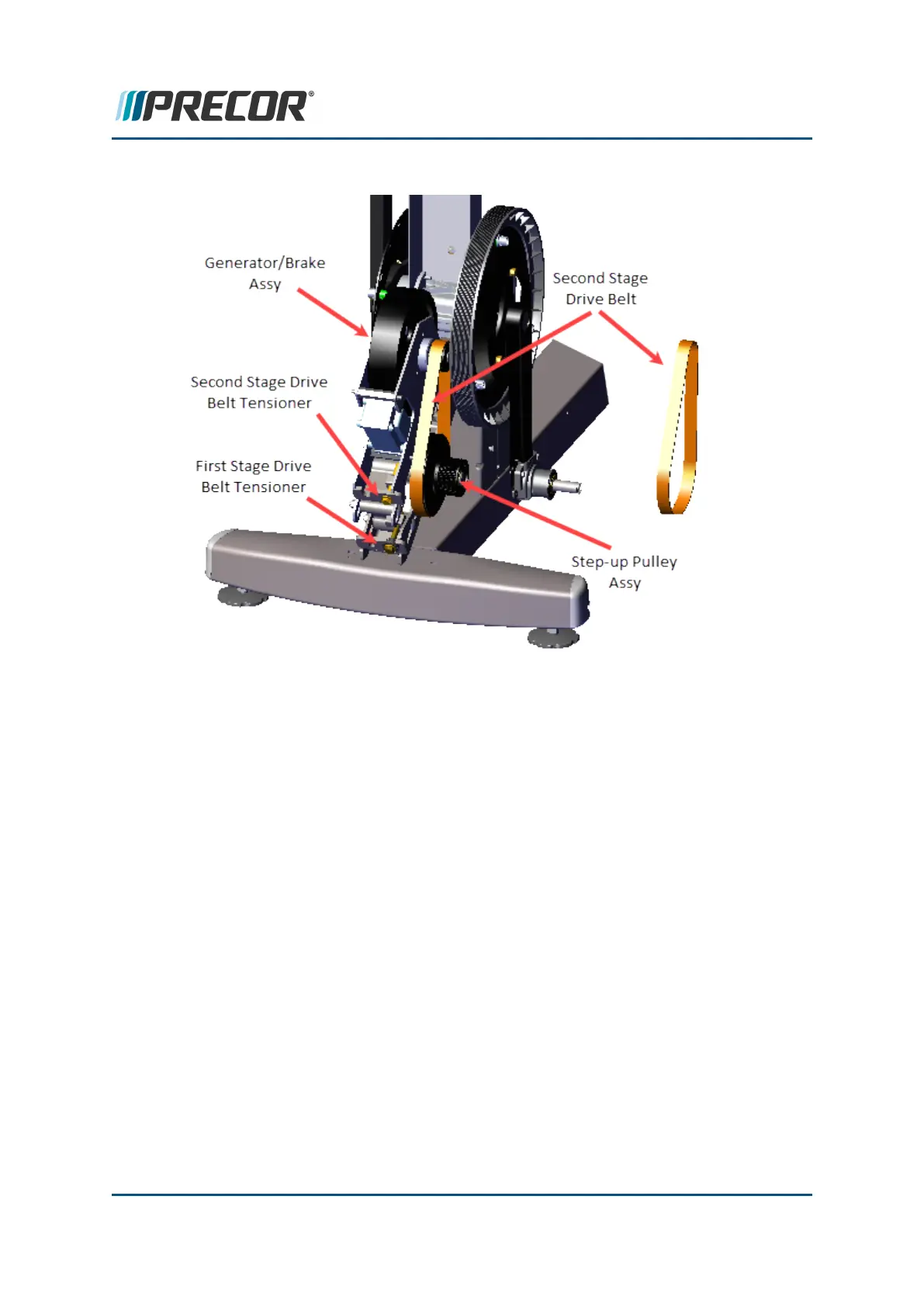

1. Install the second stage drive belt by walking the belt onto the Generator/Brake
assembly and larger Step-up Pulley assembly pulleys. Rotate the crank and make sure
that the belt is properly aligned and seated on both pulley grooves. Adjust the second
stage tensioner just enough to hold the tensioner mechanism and belt in place.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 112
6 Replacement Procedures
Drive Belt Replacement
