Installation Instructions
1.

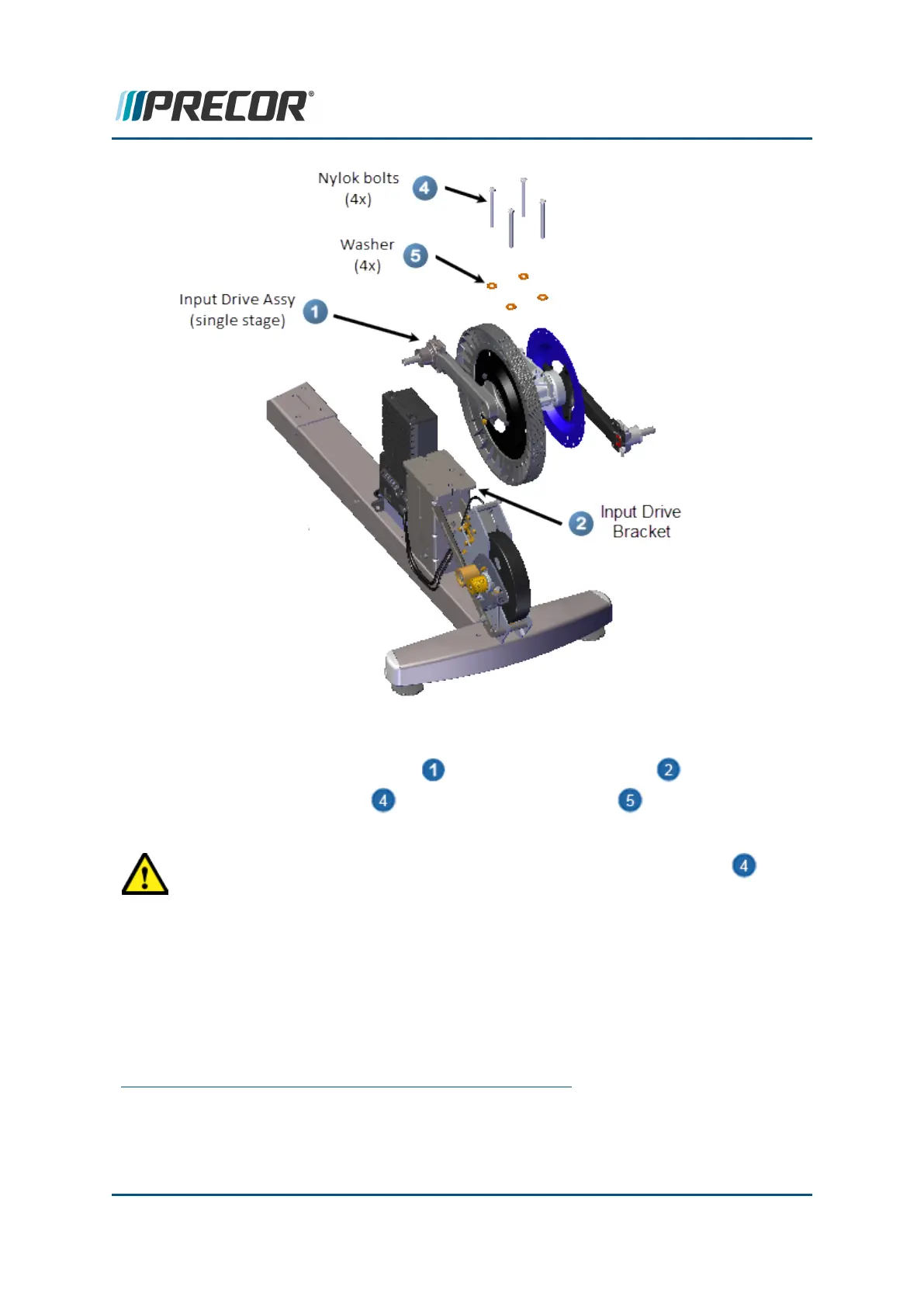

Reinstall the Input Drive Assembly onto the InputDrive Bracket . Secure using
four new Nylock patch bolts and the removed flat washers . Torque
1
the bolts to
300 +/- 90 in-lbs (34 +/- 10 Nm).
CAUTION:Do not reuse the four Input Drive Assembly Nylock patch bolts for
installation. Discard the used bolts and order new bolts for installation (see Exploded
View Diagrams, bubble # 296).
1
Torque is a measure of the force that can cause an object to rotate about an axis. Bolt/nut
example: 5 NM torque is equivalent to 5 newton's of force applied one meter from the center of
the bolt, 6 ft-lb is equivalent to 6 lbs of force applied 1 foot away from the center of the bolt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 152
6 Replacement Procedures
Input Drive Assembly Replacement
To Next Page
