Precor Experience Series User Manual

1. Remove the Drive Access panel see "Drive Access Panel Replacement" on page83.
2. Remove the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on
page84.
3. Remove the left and right Stairarms and Drive Housing covers see "Drive Housing
Covers Replacement" on page88.

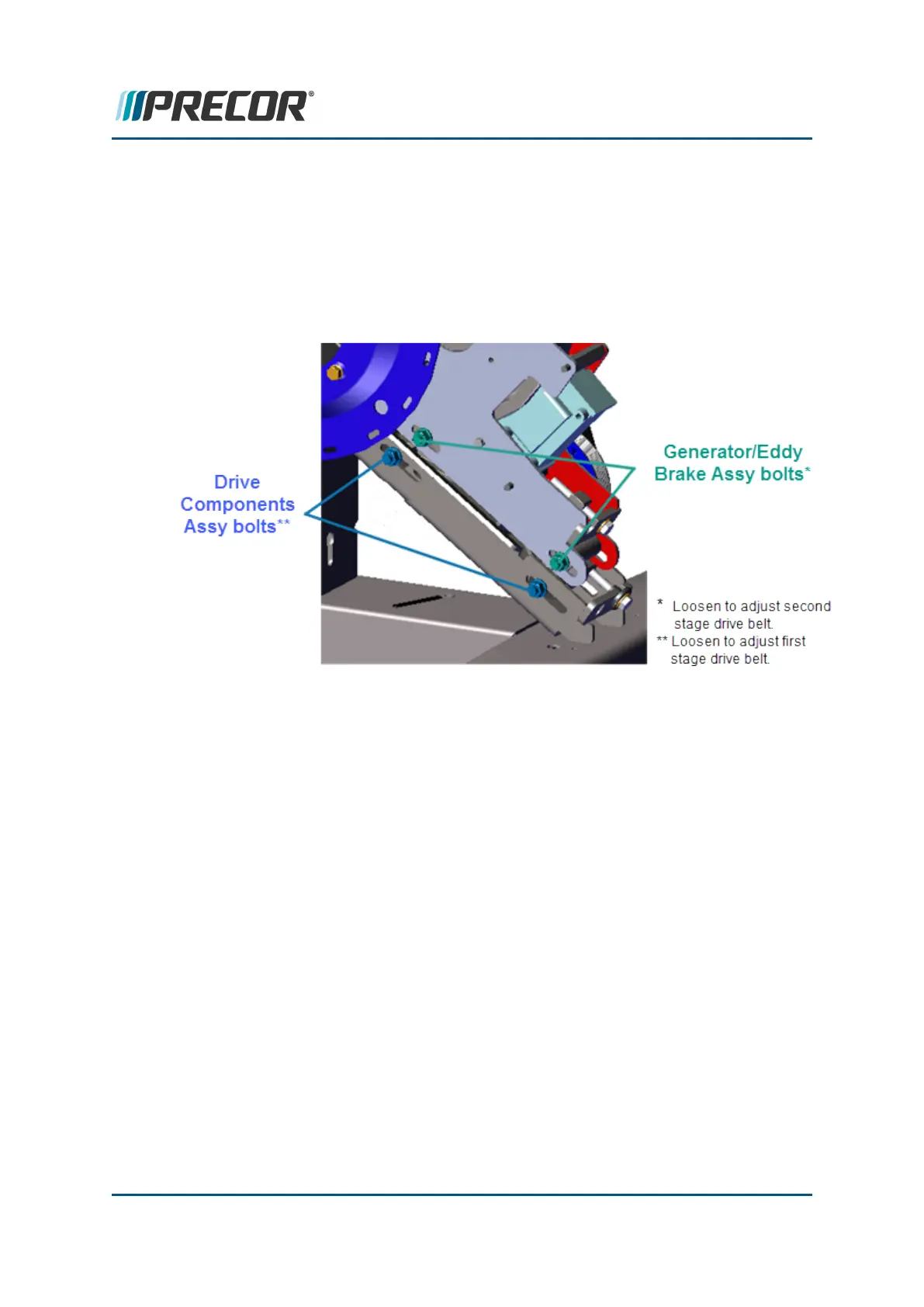

4. Use a 1/2" socket to loosen the two Drive Components assembly fastener nuts (left
side). Do not remove the fastener nuts.
5. Use a 1/2" socket to loosen first stage belt tensioner and walk the first stage drive belt off
the pulleys. Remove the first stage drive belt. Retain belt for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 156
6 Replacement Procedures
Input Drive Assembly Replacement
