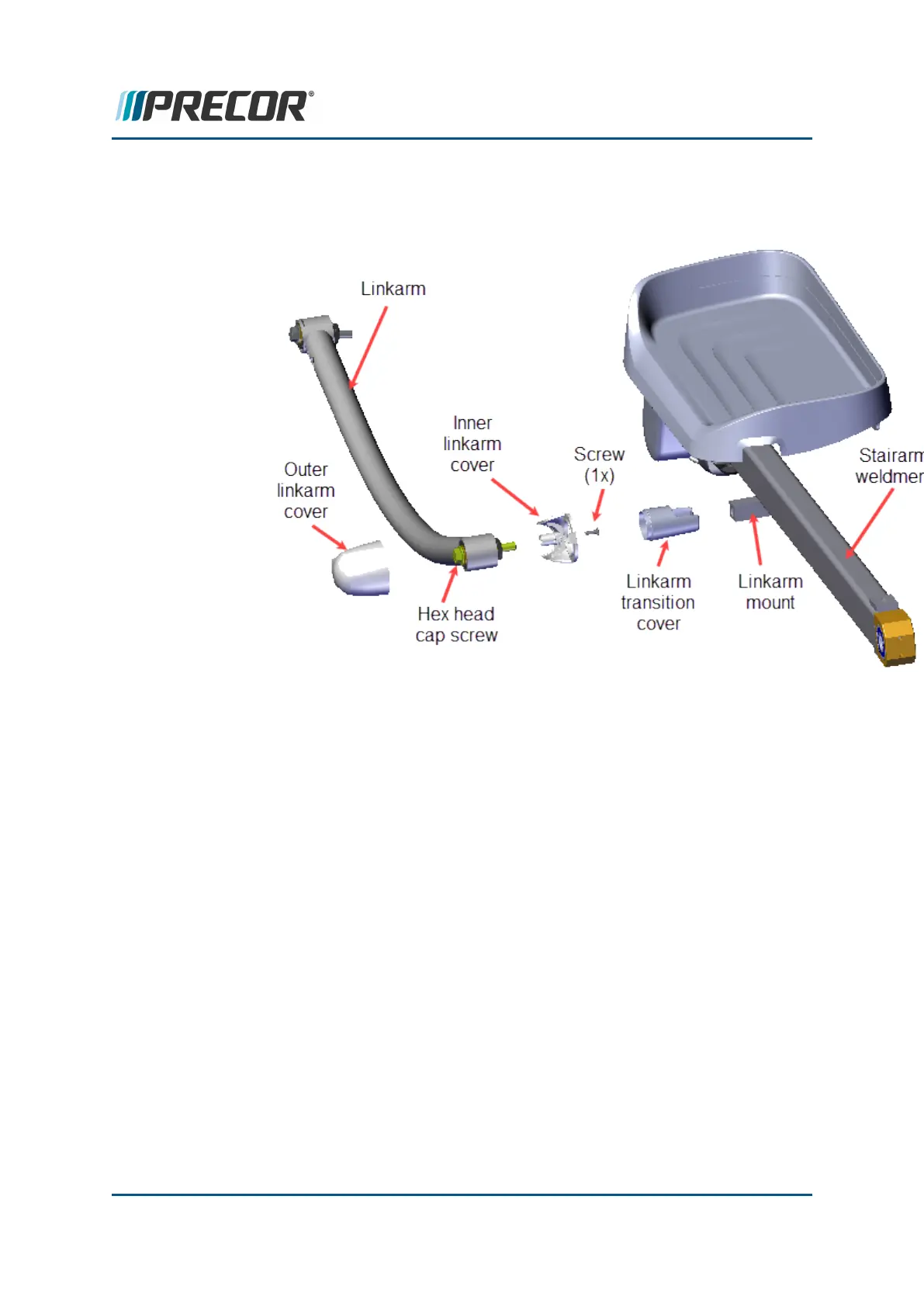

3. Remove the Linkarm from the stairarm (moving arm models only):
a. Remove the #2 Phillips screw fastener and remove the Outer Linkarm
Cover. Retain part(s) and/or fastener(s) for installation.
b. Remove the 9/16" hex head screw and remove the Linkarm from the Stair-
arm weldment - Linkarm bracket and carefully lay onto the floor.
c. Remove the Inner Linkarm cover from the Stairarm weldment - Linkarm
bracket. Retain hardware and fastener for installation.
Stairarm Wheel Removal
4. Remove the 1/4" hex key bolt, washers (2x), Wheel, Wheel Axle, and retainer.
Retainer, Washers (2x), and Wheel Axle.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 200
6 Replacement Procedures
Stairarm Replacement
