Removal Instructions
Review entire procedure before starting.
1. Remove the left Drive Disk cover, see "Drive Disk Covers Replacement" on page84.

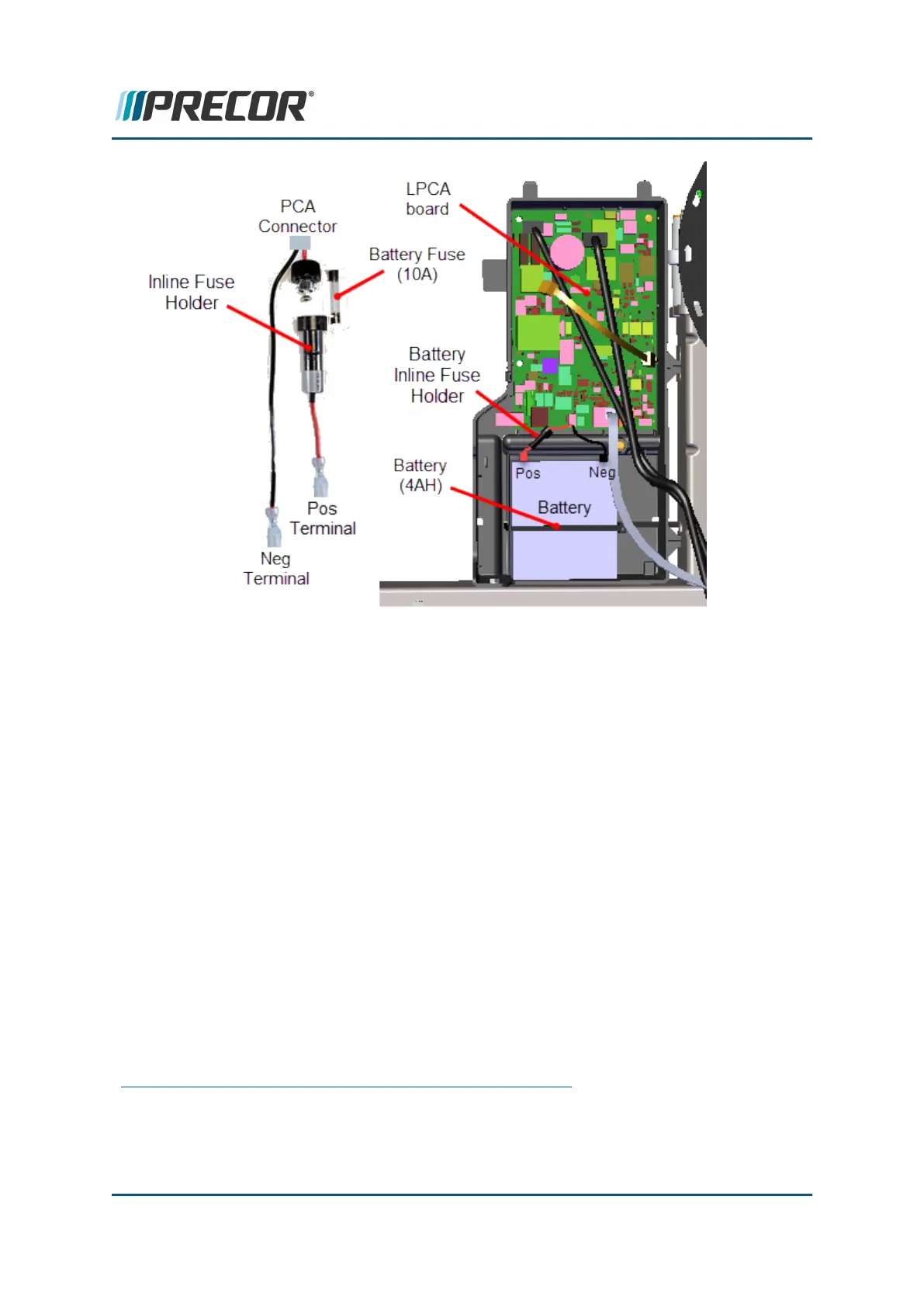

2. Remove the one #2 Phillips screw fastener and LPCA
1
/Battery Module cover. Retain
part(s) and/or fastener(s) for installation.
1
Lower printed circuit assembly; generally this refers to the lower board. On treadmills, this is
the motor controller unit (MCU), and on self-powered units, it is the main board in the lower
section.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 67
6 Replacement Procedures
Battery Replacement
