5–69Replacement Procedures
1. Screw, Hex w/LW (4–20x.50)
2. Ground Clip (Mfg. P/N 150784–001)
3. Grip Ring (P/N 101551–002)
4. Splined Shaft Assembly (P/N 150491–001)
5. Bearing, Nylon, .376 (P/N 101309–001)
6. Spring Link (P/N 110280–001)
7. Spring, Extension (P/N 105741–003)
8. Tractor, Left (Set, L/R, P/N 140716–003)
9. Tractor, Right (Set, L/R, P/N 140716–003)
10 Screw, Thread Forming (6–32x.25)
11.Bearing Clamp (P/N 110281–001)
12.Vertical Adjustment Knob (Splined Shaft Pulley) (P/N 150289–001)
13.Left Side Plate (P/N 150771–001)
14.Right Side Plate (P/N 150772–001)
10
11
14
12
3
5
6
4
13
9
7
8
1
2

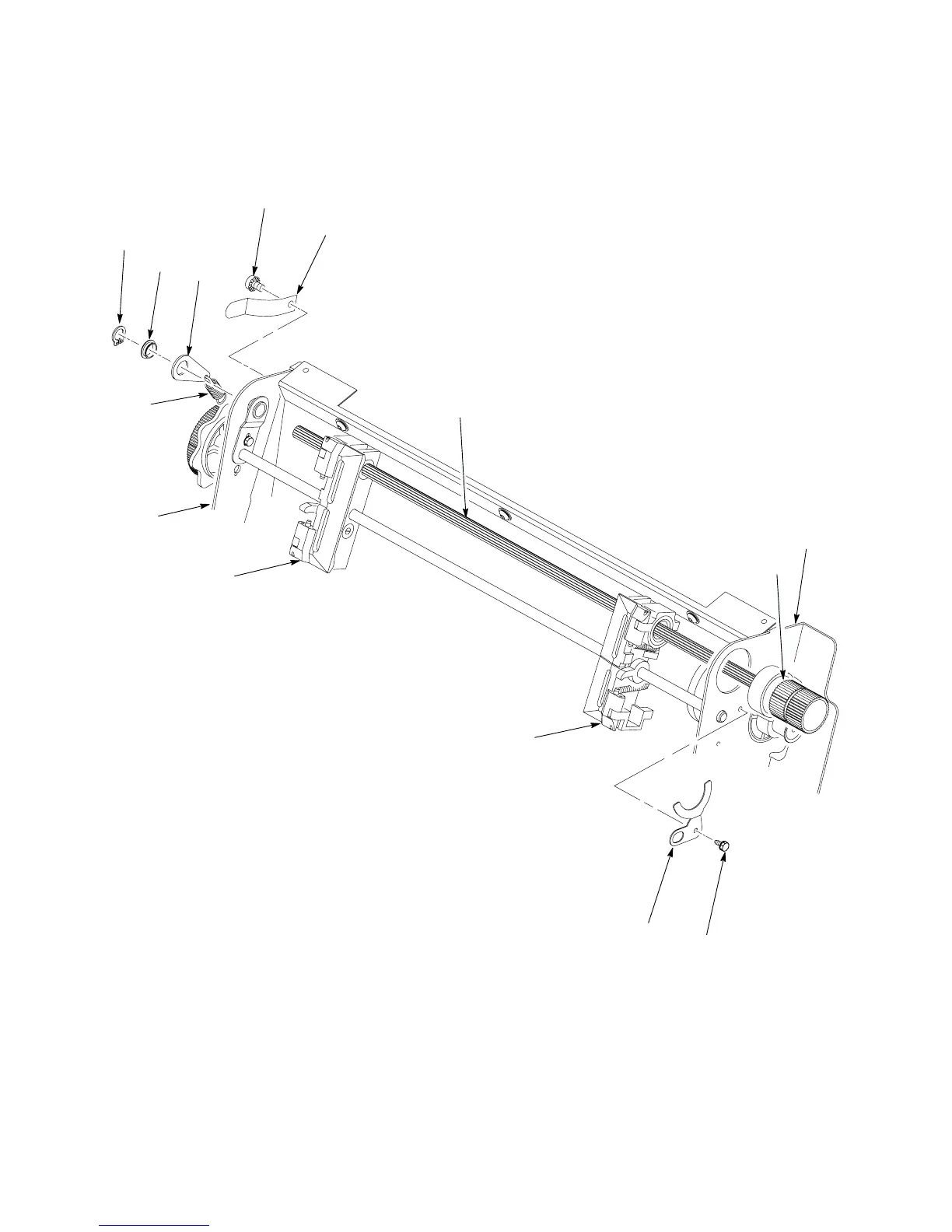

Figure 5–29 . Shaft, Splined, Removal/Installation
