Printronix P4280 - Page 153

5–71Replacement Procedures
1. Tractor (2) (Set, L/R, P/N 140716–003)
2. E Ring (P/N 105678–001)
3. Support Shaft (P/N 111685–001)
4. Curved Washer (2) (P/N 101552–004)
5. Bushing (P/N 111684–001)
6. Horizontal Adjustment Knob (P/N 111822–001)
7. Washer (Flat #4)
8. Screw (Skt cap, 4–40x.25)
9. Left Side Plate (P/N 150771–001)
10. Right Side Plate (P/N 150772–001)
3
1
2
4
5
6
7
8
9
10
1

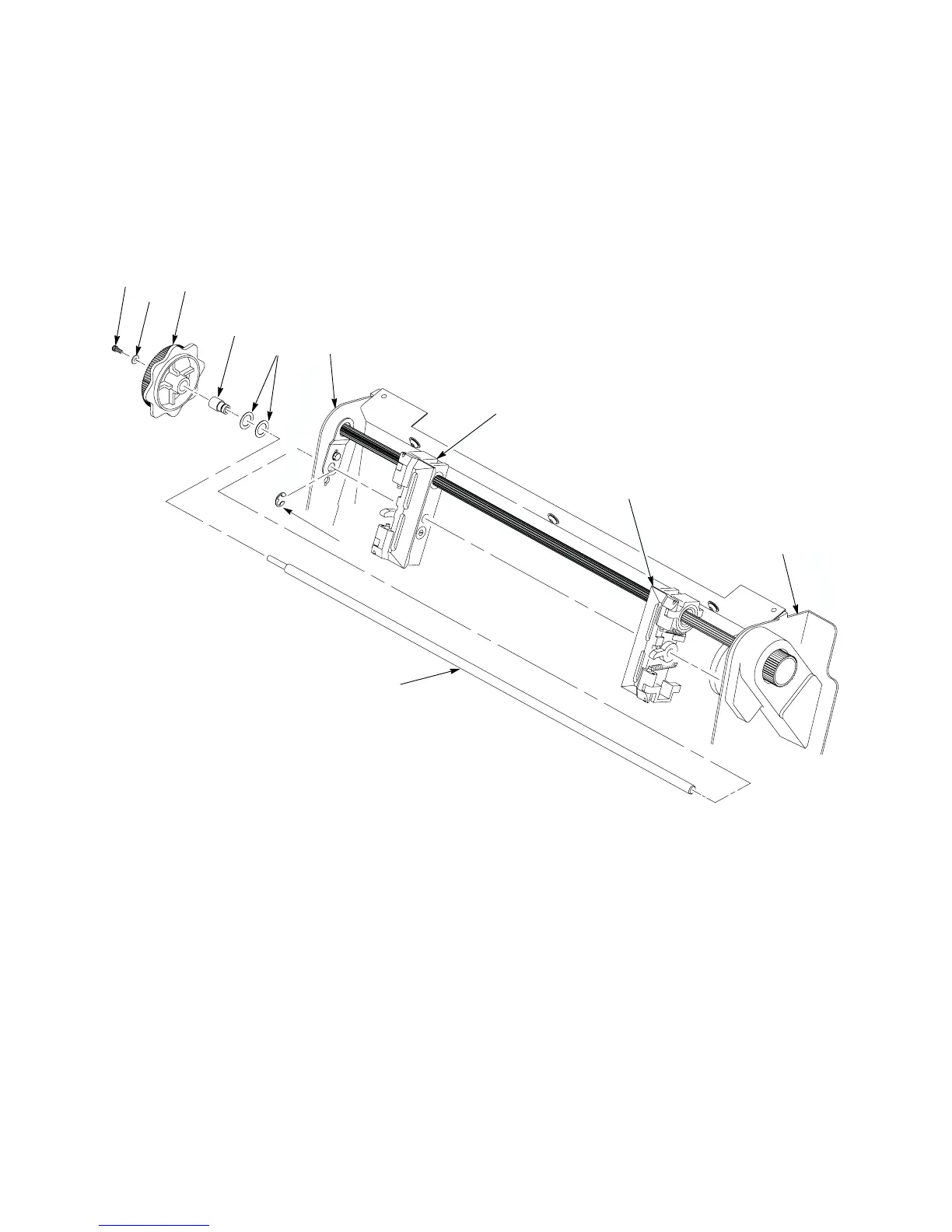

Figure 5–30 . Shaft, Support, Removal/Installation
